| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-360 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , |
| Type: | Fish Eye CCTV Camera | Resolution: | 600TVL, 720P/960P/1080P |
|---|---|---|---|
| TV System: | PAL Or NTSC | Sensor: | CMOS / CCD |
| Power: | DC12V±10% | IR LED: | 12pcs |
| Night Vision: | Support | Warranty: | 12 Months |
| High Light: | 0.01Lux Vehicle Surveillance Camera,2.0MP Vehicle Surveillance Camera,Panoramic Fisheye CCTV Camera |
||

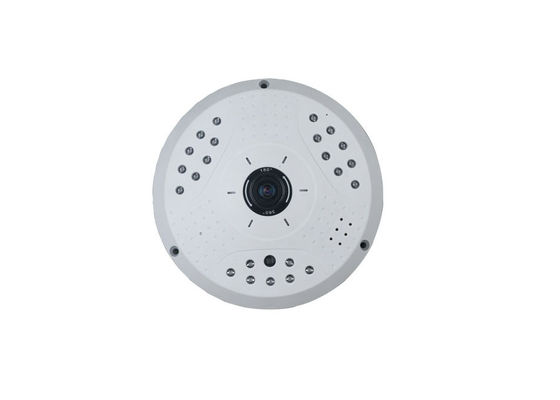

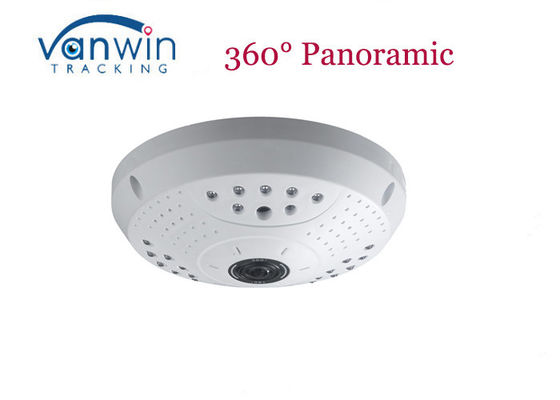

UFO 360 degree wide angle Camera panoramic fish eye CCTV camera with IR for Vehicle
Main Features:
| 1. High resolution,image clarity and smooth. | ||
| 2. Supports automatic color to black & white,to achieve the day & night monitoring. | ||
| 3. 360 degrees panoramic range without blind spots, no dead corner,real time monitoring | ||
| 4. Unique ring-eye lens, the resolution of the edge increases ≥ 30% | ||
| 5. High signal, image screen clean and pleasing to the eye. | ||
| 6. Supports multi-language OSD menu, can be customized performance parameters according to the site environment. | ||
| 7. Supports automatic electronic shutter function, suitable to monitor different environment. | ||
| 8. Built infrared light,high brightness,light uniformity,long life. | ||
| 9. Using PC material shell, heat resistant performance |
Main Specifications
| Type | HD 2.0Megapixel |
| Image Sensor | 1/2.7" progressive scan CMOS |
| Horizontal Resolution | 2.0Megapixel |
| TV system | PAL/NTSC |
| Effective pixels | 1920(H)*1080(V) |
| Minimum Illumination | 0.01Lux@(F1.2,AGC ON),0 Lux with IR |
| S/N | ≥41dB |
| Day and night switch | Auto(ICR) |
| Auto Gain Control | Support |
| Back light compensation | Support |
| White Balance | Auto / Manual |
| Digital Noise Reduction | Adaptive digital noise reduction, 2D/3D-DNR |
| Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Video Output | Follow AHD / TVI / CVI / CVBS standard (4 in 1 output) |
| AUDIO | Support |
| OSD menu | UTC function |
| Lens | 1.56mm megapixel lens,M12*P0.5 |
| Visual Angle | Ceiling mounted :360°,Wall mounted: 180° |
| IR LEDS Quantity | 23 PCS ￠5 LEDS |
| IR distance | 10～15 meters |
| Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) |
| Power Supply | DC12V±10% |
| Power Consumption | ≤3.6W |
| Dimension | Ф150*46(mm) |
