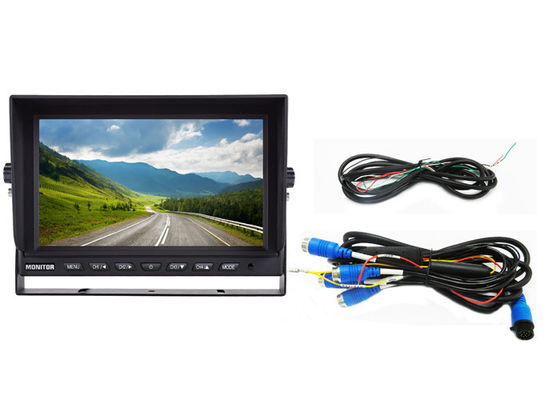

Car Display 1024x600 5W Rear View Camera Monitor MDVR
Product Details:
Place of Origin: | Shenzhen,Guandong |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-910HD |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pc |
---|---|
Price: | negotiated |
Packaging Details: | Color Neutral Box ; Neutral Color box,white box and customize box for your option Packing details: 10pcs/box net weight: 10.42KGS gross weight:11.22KGS M: 62.4*46*24cm |
Delivery Time: | 3-7 working days |
Payment Terms: | T/T,Western Union,Paypal |
Supply Ability: | 5000 pcs per month ; 9 Inch HD rear view camera monitor with 3CH 1080P / 720P / Analog Cameras |
Detail Information |
|||
Size: | 9 Inch Screen | Resolution: | 1024xRGBx600 |
---|---|---|---|
IPS Screen: | Option | Power Supply: | 12~24V |
Screen Type: | 9inch LCD, 16:9 | Connector: | 4 Pin Or RCA Connector |
Image Reversion: | UP/Down And Left/Right | Video Input: | 3 Channel /4CH HD Video Input |
Camera: | Front/side/rear Optional | Compatible System: | NTSC & PAL (automatically) |
Language: | Chinese, English | Warranty: | 12 Months |
High Light: | 5W Rear View Camera Monitor,1024x600 Rear View Camera Monitor,MDVR Car Display Monitor |
Product Description

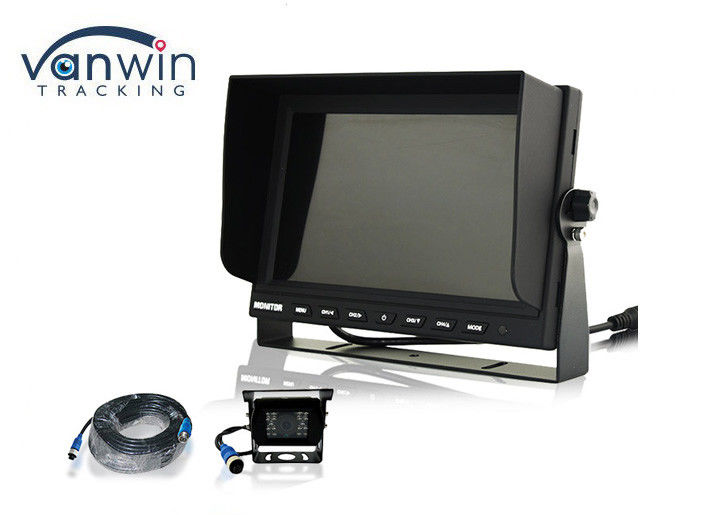

9 Inch HD Car rear view camera monitor with 3CH 1080P / 720P / Analog Cameras
Car rear view camera monitor Main Functions
- The AHD monitor have 3CH or 4CH HD video input,
- It can connect 3 / 4 AHD cameras for monitoring in the vehicle DC12-24V.
- Also have normal monitor for optional ,like 5inch ,7 inch ,9 inch ,10.1 inch with quad or non-quad.
- Also with 7inch and 9inch monitor DVR for choice .
- We would like to provide one full set for your testing with best price as we can .
- You will like us and our products so much .
- Professional manufacture for MDVR system and different kinds of car monitors and cameras for optional.
- We also have our own SMT factory with all kinds of chips production
- All monitors and cameras and MDVR have been tested over 48 hours before sending .Quality and credit is our credit firstly .
- We are very honest and kind to serve you well .
- Your money is safe here.
Car rear view camera monitor Specification
Screen Ratio | 16:09 |
Back Light Luminance | LED, 300cd/㎡ |
Resolution | 1024xRGBx600 |
Compatible system | NTSC & PAL (automatically) |
OSD control | Brightness, Contrast, Saturation, Volume, Language |
(English, Simplify Chinese) | |
View angle | Hor. L(70) R(70) Ver. UP(50) DOWN(70) |
Image reversion | UP/Down and Left/Right |
Power requirement | DC 12-24V |
Power consumption | 5W |
Storage temperature | -30〜80℃ |
Working temperature | -20℃ to 70℃ |
Size | 285mm*184mm*34mm |
Weight | About 900g |
Key color | Black |
AV Inputs | 3 / 4 channel HD video input, single image display, support 720P@25/30, 720P@50/60, 1080P@25/30 |
Number of Trigger and display | 3 triggers or 4 triggers |
Optional functions | 4 PIN connector or RCA connector |
Other features | OSD menu, Remoter control, Sunshade design around |

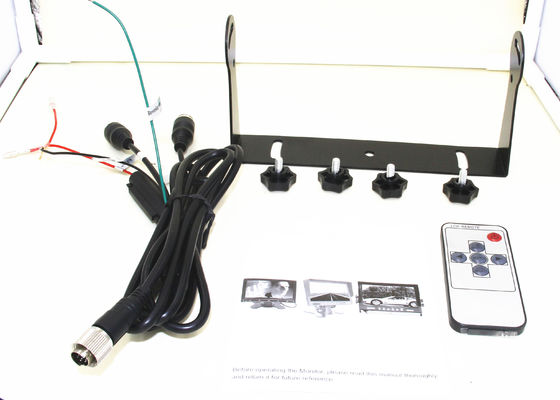

Accessories | Remote controller, Power supply cable , User manual, Bracket, Hexagon wrench |
Package | 10pcs/ctn net weight:15.08KGS gross weight:15.88KGS M: 45.8*44.3*38.5cm |
