4pin Digital WDR CVBS Front Back View Camera 1080P 1.3MP

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-385
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
Waterproof: IP68 IR Lights: 18pcs
Technology: AHD TV System: PAL Or NTSC
Lens: 2.1mm/2.8mm/3.6mm/6.0mm Connector: 4 PIN Or RCA BNC Connector
Mode: AHD Camera Or Analog Camera Advantage: SMT Factory Plus Strict Production
Sensor: AHD 1080P,1/3" 1.3 Mega Pixels CMOS Resolution: CMOS CCD Analog/720P/960P/1080P Optional
High Light:

CVBS Front Back View Camera


WDR Front Back View Camera


1.3MP Side View Car Cameras

Bus Waterproof Front Side Back View 1080P Car Cameras with 4pin, Digital WDR

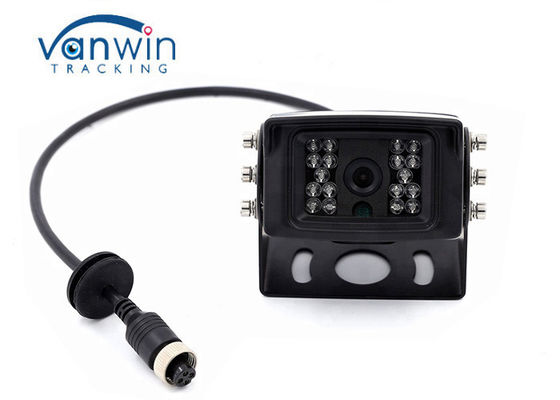

VW-385 is one of our hot selling model which used for ligger vehicle like truck, bus, van as the reversing/front camera.

It can support Analog CCD 600TVL/700TVL or AHD 720P/960P/1080P for option with 4pin/BNC/RCA connector.

There is also different lens and chips to meet different customers' requirement.


Main Specifications

Model FH53-V1
Parameters oaxial surveilance camera mo
  2MP 4-in-1 coaxial surveillance camera module
Sensor 1/2.9"GC2053
ISP Model FH8536H
Image System PAL/NTSC


Resolution 1920(H)x1080(V)
Min. illumination 0.01Lux@(F1.2,AGC ON),0LUX with IR
Shutter AUTO
Night Mode Outside control(default)/Auto/W&B/ Color
Synchronization Inter synchronization
Frame Rate 1080P@25fps / 1080P@30fps
Video Output AHD/TVI/CVI/CVBS for option
Exposure Brightness/Exposure mode/gain
White Balance AWB/MWB
Night Mode IR/Inner auto/color/W&B
Video Setting Contrast / Sharpness / Saturation / Digital Noise Reduction / Video Format / Digital WDR
Working enviroment -20℃ to 60℃, Humidity 95%
Voltage DC12V(±20%) - 65MA


Our advantages


We are different from other suppliers.Welcome you to test and compare.

1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process:


Raw Material---- Accessories High Temperature Test---Assembly----

Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)

----QA Test(IR with function Test )----Packing

3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much.

Nearly all clients have been coorperating with us all the time .

4.We explore some wide angle or special cameras to meet your requirements that others don't have.


Our 1080P Truck reverse camera main features for 1080P chip:

  1. Adopt 1080P 2.0MP San CMOS, can capture moving images
  2. Support AHD / TVI / CVI coaxial HD output, with clear and delicate image
  3. Illumination 0.01Lux @ (F1.2, AGC ON), 0LUX with IR
  4. Support IR-CUT switch, CDS external control, realize day and night monitoring
  5. Support OSD menu control, suitable for users to define settings
  6. Support Digital Wide Dynamic
  7. Adapt to digital noise reduction, 3D-DNR, 2D-DNR
  8. Support UTC function
  9. Video 6KV lightning protection, power capacitor design
  10. Support DC 6-15V wide voltage supply
  11. 32x32/38x38(mm)

4pin Digital WDR CVBS Front Back View Camera 1080P 1.3MP 0

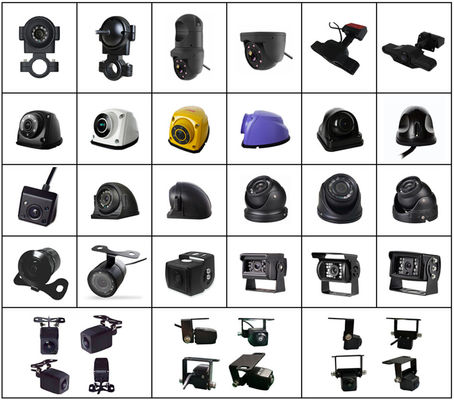

Other Models for Options
