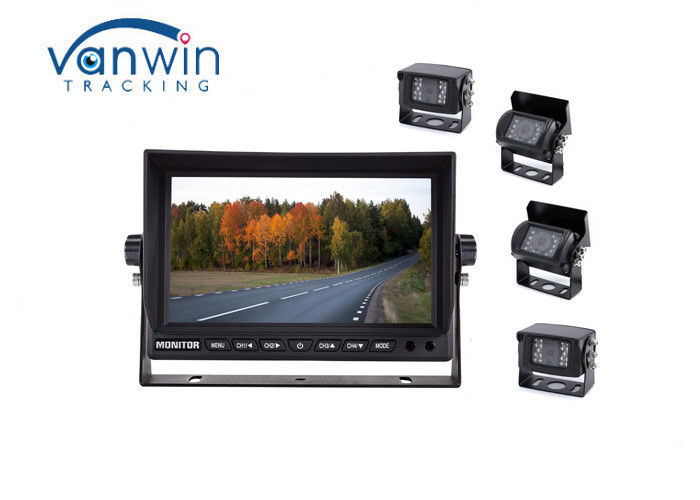

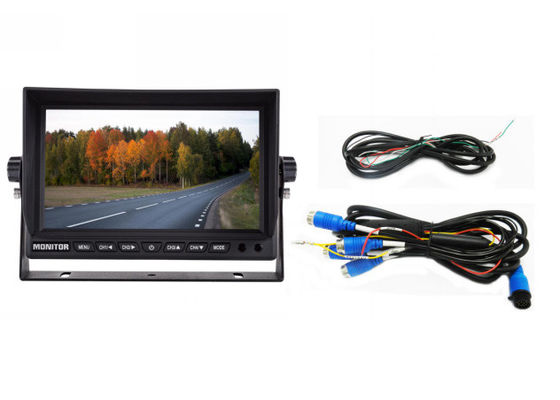

Quad Image 9W MDVR 300cd/m2 Car Display Monitor IPS Screen

Basic Information
Place of Origin: Shenzhen,Guandong
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-M710HQ-DVR
Minimum Order Quantity: 1 pc
Price: negotiated
Packaging Details: Color Neutral Box ; Neutral Color box,white box and customize box for your option Packing details: 10pcs/box net weight: 10.42KGS gross weight:11.22KGS M: 62.4*46*24cm
Delivery Time: 1~2 days for sample and 3~15 working days for big order
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 5000 pcs per month ; 1080p Size 7INCH Car Monitor Display IPS Screen 4 Channels Quad Imag
Type: 7INCH Car Display Monitor Connector: 4 Pin Or RCA Connector
Power Supply: 12~24V Screen Type: 16:9
Storage Function: Optional Resolution: 1024xRGBx600
Image Reversion: UP/Down And Left/Right Video Input: 4 Channel HD Video Inputs
Camera: Front/side/rear Optional Compatible System: NTSC & PAL (automatically)
Application: Truck, Bus, Van, Trailer And Ect.
High Light:

300cd/M2 Car Display Monitor


9W Car Display Monitor


MDVR IPS Screen Car Monitor

1080p Size 7INCH Car Monitor Display IPS Screen 4 Channels Quad Image


Main Functions


1.The AHD monitor have 4 HD video input ,it means it can connect 4 AHD 720P/960P/1080P cameras for monitoring

in the vehicle DC12-24V and with quad images.

2. Also have normal monitor for optional ,like 5inch ,7 inch ,9 inch ,10.1 inch with quad or non-quad.

Also with 7inch and 9inch monitor DVR for choice .

3. We would like to provide one full set for your testing with best price as we can .

You will like us and our products so much .

4. Professional  manufacture for MDVR system and different kinds of car monitors and cameras for optional.

5. We also have our own SMT factory with all kinds of chips production

6 All monitors and cameras and MDVR have been tested over 48 hours before sending .Quality and credit is our credit firstly .

7. We are very honest and kind to serve you well .

8. Your money is safe here .


Main Specification


4 Channel AHD Quad Monitor DVR

Aspect Ratio 16:09
Resolution 1024*R.G.B.*600
Back Light LED, Luminance: 300cd/m2
Contract 500:01:00
Recording Speed 720P: 25f/s/D1:25f/s
Viewing Angle UP-85°,DOWN-85°, LEFT-85°, RIGHT-85°
Working Temperature -20~+60 ºC
Working Humidity 85%RH
Storage Temperature -30~+85 ºC
Power Supply DC 9-30V
Power On Time 20S
Maximun Current TPYE: 750mA
OSD Control Image Setting, Mirror Setting, System Setting, Recording Setting, Playback Setting
Power Consumption <9W
AV IN 4 Channel720P/CVBS Input, Video Input
Image Display Support 1/2/3/4 Image Change
Trigger Control 4 Channels Trigger Control
Recording Function Support 128G TF Card, 1/2/3/4 Channel Palyback
Video Compressed Foramt AVI
System PAL/NTSC Automatically
Shockproof Level 4G
Audio 1 Audio Input
Audio Output Consumption 32Ω2W
