| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-399A |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; Private Mould HD CCD 700TV line / 960P AHD Front side View Bus / Truck cameras, Waterproof |
| Type: | Bus / Truck Front Cameras | Sensor: | 1/3 Sharp Sony Car Camera |
|---|---|---|---|
| Voltage: | DC12 / DC 24V | Waterproof: | IP67 |
| TV System: | PAL Or NTSC | Technology: | Infrared,AHD |
| Connector: | 4 Pin Aviation, RCA, BNC Connector | Lens: | 3.6mm,2.8mm,2.1mm Fixed Lens |
| Resolution: | 600TVL/700TVL; AHD 720P / 960P / 1080P | Application: | For Trailer / Bus / Truck / Heavy Duty |
| High Light: | 10IR Lights Truck Front View Camera,600TVL Truck Front View Camera,BNC Connector Vehicle Dvr Camera |
||

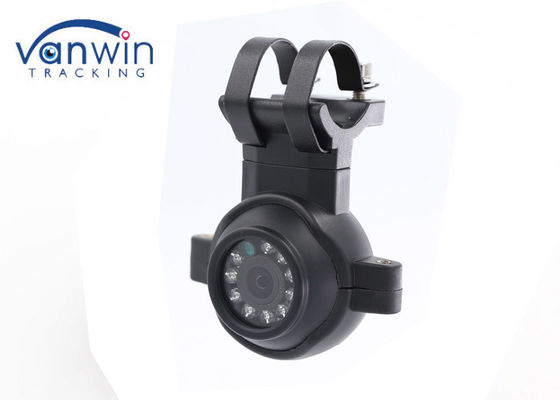

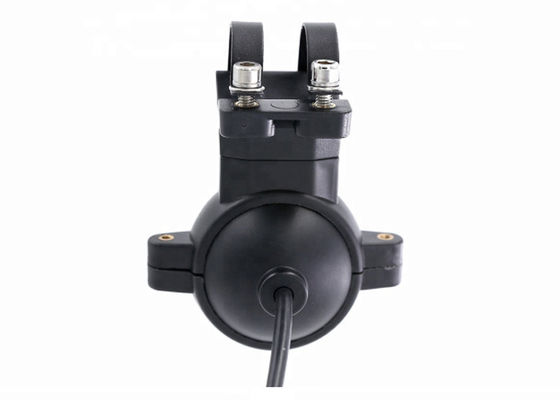

1080P Resolution Truck front View Camera Private Mold with Mounting Bracket, 10IR Lights
The stand front view camera for heavy duty. It's viewing angle can be easily adjusted allowing this camera to mount in a variety of different ways. Normal and mirror image is switching. Camera comes included with 4P connector, BNC or 6P connector for IP camera.
Main Features:
Technical parameters:
| Image Sensor | 1/3" Sony Color CCD | |||
| Horizontal Resolution | 700TV lines | |||
| TV System | PAL/NTSC | |||
| Effective Pixels | PAL:976(H) x 582(V) NTSC: 976(H) x 494(V) | |||
| Minimum Illumination | Color 0.001Lux;IR ON 0 Lux | |||
| S/N Ratio | ≥60dB(AGC OFF) | |||
| DAY&NIGHT MODE | COLOR MODE/AUTO MODE/B&W MODE | |||
| Auto Gain Control | AUTO/MANUAL,8 Value settings | |||
| Back Light Comp | Back light compensation, high light suppression | |||
| White Balance | Multi- mode selection | |||
| Noise Reduction | 3D | |||
| WDR | High/Middle/Low | |||
| Lens | 2.8MM | |||
| Electronic shutter | AUTO/1/50(1/60)-1(100,000Sec) | |||
| Video Out | 1.0V p-p 75, BNC connector | |||
| Control mode | OSD manual,support 8 languages | |||
| Synchronization System | Internal | |||
| Scanning System | 2:1 Interlaced | |||
| PRIVACY | 8 areas,freely set up position,size and 8 colors | |||
| Motion Detection | Grid tracking,4 areas,freely set up positions and size | |||
| IR LEDs | 10PCS | |||
| IR distance | 5~10M | |||
| Waterproof level | IP66 | |||
| Working temperature | -20°C~+70°C | |||
| Power supply | DC12V±10% | |||
| Power consumption | ≤3W | |||
| Dimension | 72*50*58mm | |||
Application:

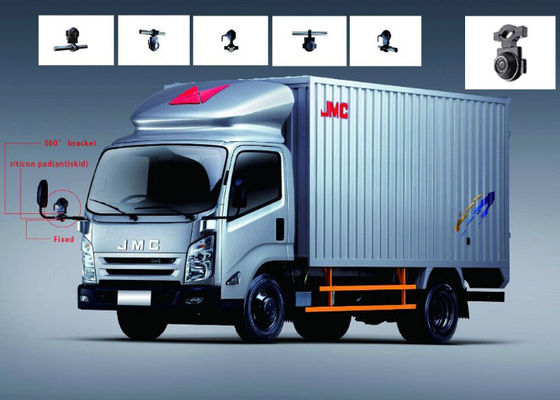

How to install?
