Waterproof 170 Degree Bus Surveillance Camera 1.5mm Lens

Waterproof 170 Degree Bus Surveillance Camera 1.5mm Lens

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-362

Payment & Shipping Terms:

Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Car Make: Truck, Bus, Heavy Duty, Trailer And Ect. Image Sensor: CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS
Feature: Waterproof, Dustproof, Anti-corrosion Connector: 4 PIN Connector Or RCA Connector
Lens: 1.5MM, 1.98MM, 2.33MM Sensor: CMOS And CCD
Waterproof: Yes, IP69K IR Lights: 6 IR Lights
TV System: PAL Or NTSC Warranty: 12 Months
High Light:

Waterproof Bus Surveillance Camera


170 Degree Bus Surveillance Camera


1.5mm Lens Wide Angle Car Camera

Product Description

Private Mold Waterproof Outdoor 170 degree Wide Angle Car Camera for Bus, Truck


Main Features

★ Support Coaxial HD output, high resolution achieve to 720P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability
★ Side or Rear view camera,commonly use in schoolbus,bus,Van,fire truck vehicles



Main Specifications


Image sensor CMOS Starlight CMOS CMOS
Horizontal Resolution 1.3Megapixel 1.3Megapixel 2.0Megapixel
Effective Pixel 1280(H)*960(V) 1280(H)*960(V) 1920(H)*1080(V)
Minimum Illumination Color 0.1Lux,0 Lux with IR Color 0.01Lux,0 Lux with IR Color 0.05Lux,0 Lux with IR
S/N ratio ≥45dB ≥60dB ≥56dB
Day/Night mode EXT(default),AUTO,COLOR,B/W,Support IR CUT switching
sync system Internal
Backlight compensation AUTO
White balance AUTO
Electronic shutter AUTO/1/50(1/60)-1(50,000Sec)
Video output AHD(default)Standard,720P output AHD(default)Standard,1080P output
lens 170°/150°/120°/More optional 150°/120°/More optional
IR leds Qty 5pcs LEDs
IR distance ≤3 meters
waterproof grade IP69K
Operating Temp. -20°C~+70°C, RH95%MAX
Storage Temp -30°C~+80°C, RH95%MAX
Power supply DC12V±10%
Power consumption ≤2W
Dimension 73.7*54*41(mm)



There is BNC, 4PIN, RCA connector for option

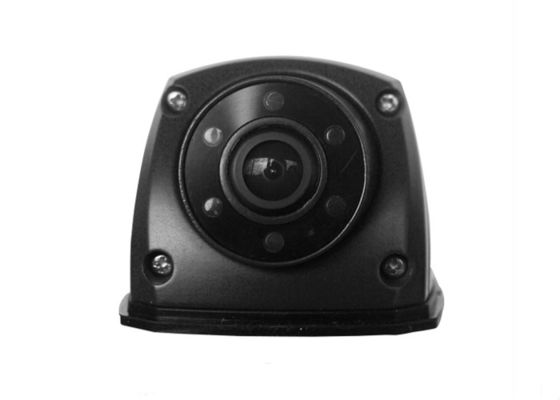

Waterproof 170 Degree Bus Surveillance Camera 1.5mm Lens 0

It's our private mold which can support different lens and angle and there are different colors for option.

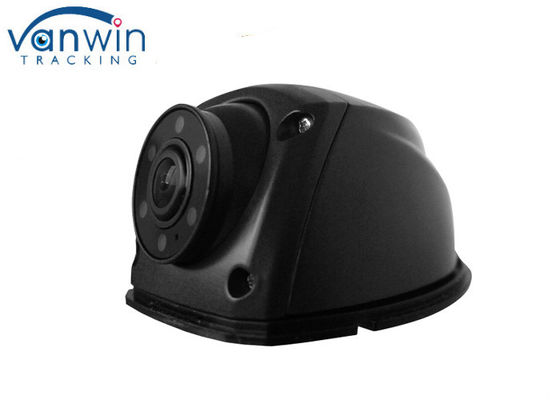

Waterproof 170 Degree Bus Surveillance Camera 1.5mm Lens 1
