Sony CCD 600TV Line Car Dome Cameras 3.6mm Lens 15m IR IP64

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-204
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month ,
TV System: PAL Or NTSC Sensor: CMOS / CCD
Power: 12V- 24V IR LED: 12pcs
Audio Built-in: Support Night Vision: Yes
Certification: CE,ROHS Ir Distance: 10m-15m
Type: Car Dome Camera Resolution: 600TVL, 720P/960P/1080P
Lens Angle: 90/105 Horizontal Degree Lens: 2.1mm / 2.8mm /3.6mm
High Light:

600TV Line Car Dome Cameras

,

3.6mm Lens Car Dome Cameras

,

15m IR Mini Dome Cameras

Sony CCD 600TV Line Mini Dome Cameras Support Power Supply DC 12V / 24V



Overview

  1. This is Sony CCD Mini dome cameras with starlight night vision for internal use.
  2. It works with 12pcs F5 infrared LEDs to create 10-15 meters infrared distance for night vision to monitor in dark environment.
  3. It adopts 2.1mm, 2.8mm, 3.6mm fixed focus lens to let you view objects within 10~15 meters.
  4. It can be worked with DVR recorder, quad processor, DVR, Reversing system.
  5. It can be viewed through monitor, TV, PC, smart phone and etc.

Camera Technical Specifications



Technology infrared
Sensor Sony CCD 600TV line
Shape Dome camera
Types Indoor car camera
Waterproof IP64
Audio Optional audio
Lens 2.1MM/2.8MM/3.6MM
IR LED 12PCS
Power DC12V/24V
Color Black
Connector 4 PIN connector or RCA connector
Material aluminium alloy
Effective Pixels 720P/1.3MP 1080P/2.0MP
Operating Temperature -25℃~70℃



Chip Technical Specifications
Image Sensor 1/2.9" IMX323 2.0 MP Video Out 1CH BNC AHD output,
Support TVI/CVI/CVBS Mode
Image System PAL/NTSC WDR auto
Resolution 1920 (H)×1080(V) SNR >45db
Min.illumination 0.01Lux full color White Belance AWB
Electronic Shutter 1/25s~1/100,000s DR 76db
Video Standard AHD Advanced Function 2D_DNR
Frame Rate 1920×1080@25 fps;
1920×1080@30 fps;
Working Environment -25℃~+70℃,Humidity 95%
Lens 2.1/2.8/3.6 Power supply DC 12V +/-15%,





There are three kinds pof connectors for option



1. 4-pin connector

2. RAC connector

3. BNC connector

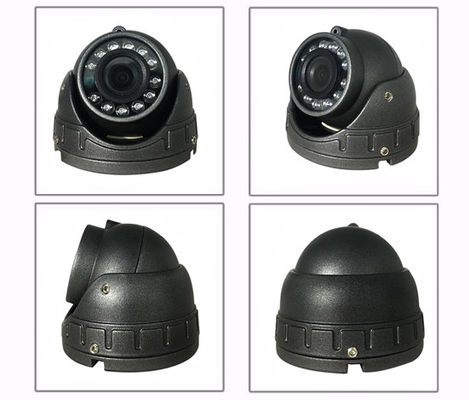

      Sony CCD 600TV Line Car Dome Cameras 3.6mm Lens 15m IR IP64 0Sony CCD 600TV Line Car Dome Cameras 3.6mm Lens 15m IR IP64 1

We are different from other suppliers.Welcome you to test and compare.



Our advantages


1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process:

Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing


3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .


4.We explore some wide angle or special cameras to meet your requirements that others don't have.



FQA



Q: What is the MOQ ?
A: 1 peice



Q: How fast for sample delivery?
A: 3-7 days



Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.



Q: How about the warranty period?
A: One year!



Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
