12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC

12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC
12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC
12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC

Large Image :  12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-399A
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month; 12V CMOS Night Vision Side View Car Backup Camera 170 Wide Angle Truck Camera Waterproof Wired Car Reversing

12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC

Description
Type: Truck Camera Voltage: DC12 / DC24V
Waterproof: IP67 TV System: PAL Or NTSC
Technology: Infrared,AHD Warranty: 12 Months
Connector: 4 Pin Aviation, RCA, BNC Connector Lens: 3.6mm,2.8mm,2.1mm Fixed Lens
Resolution: 600TVL/700TVL; AHD 720P / 960P / 1080P Application: For Trailer / Bus / Truck / Heavy Duty
High Light:

12V CMOS Bus Surveillance Camera

,

PAL NTSC Bus Surveillance Camera

,

RCA BNC Car Reversing Camera

12V CMOS Night Vision Side View Car Backup Camera 170 Wide Angle Truck Camera Waterproof Wired Car Reversing


The stand front view camera for heavy duty. It's viewing angle can be easily adjusted allowing this camera to mount in a variety of different ways. Normal and mirror image is switching.Camera comes included with 4P connector, BNC or 6P connector for IP camera.

Main Features:

  1. Bus/Truck front/ side view Camera
  2. High resolution 700TVL/600TVL, AHD 720P/960P/1080P for Option
  3. Waterproof, IP67, 10 IR leds(It's working well even without IR lights)
  4. Vandal-proof housing.
  5. With bracket for option

Technical parameters:

Image Sensor 1/3" Sony Color CCD/CMOS
Horizontal Resolution 700TV lines
TV System PAL/NTSC
Effective Pixels PAL:976(H) x 582(V)                                                       NTSC: 976(H) x 494(V)
Minimum Illumination Color 0.001Lux;IR ON 0 Lux
S/N Ratio ≥60dB(AGC OFF)
DAY&NIGHT MODE COLOR MODE/AUTO MODE/B&W MODE
Auto Gain Control  AUTO/MANUAL,8 Value settings
Back Light Comp Back light compensation, high light suppression
White Balance Multi- mode selection
Noise Reduction 3D
WDR High/Middle/Low
Lens 2.8MM
Electronic shutter AUTO/1/50(1/60)-1(100,000Sec)
Video Out 1.0V p-p 75, BNC connector
Control mode OSD manual,support 8 languages
Synchronization System Internal
Scanning System 2:1 Interlaced
PRIVACY 8 areas,freely set up position,size and 8 colors
Motion Detection Grid tracking,4 areas,freely set up positions and size
IR LEDs 10PCS
IR distance 5~10M
Waterproof level IP66
Working temperature -20°C~+70°C
Power supply DC12V±10%
Power consumption ≤3W
Dimension 72*50*58mm




12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 0
Application:

  • Outside car camera(inside vehicle installation or outside vehicle installation)
  • Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.

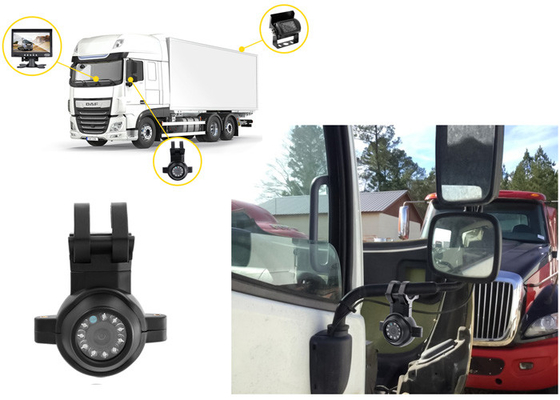

How to install?

12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 1

12V CMOS Bus Surveillance Camera PAL NTSC Night Vision Side View RCA BNC 2

FQA:
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white or natural color gift boxes.

If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q: What is your terms of payment?
A: T/T 30%-50% as deposit, and 70% before delivery.

We'll show you the photos of the products and packages before you pay the balance.
Q: What is the MOQ ?
A: 1 piece
Q: How fast for sample delivery?
A: 3-7 days
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: 12 Months.
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E. We have a QC team with 8 years' experience.

All of the products will run through over 4 times' 100% testing before being delivered.
