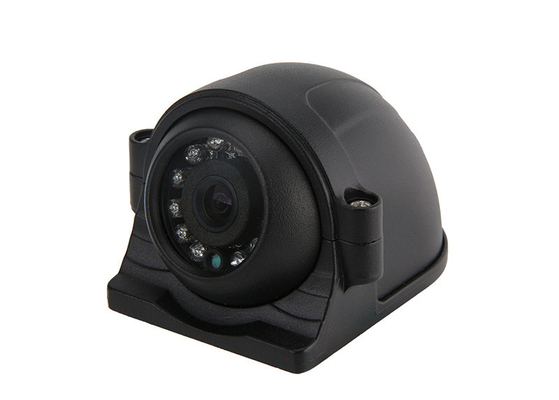

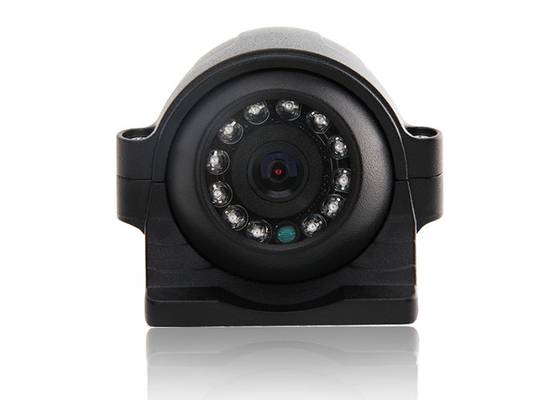

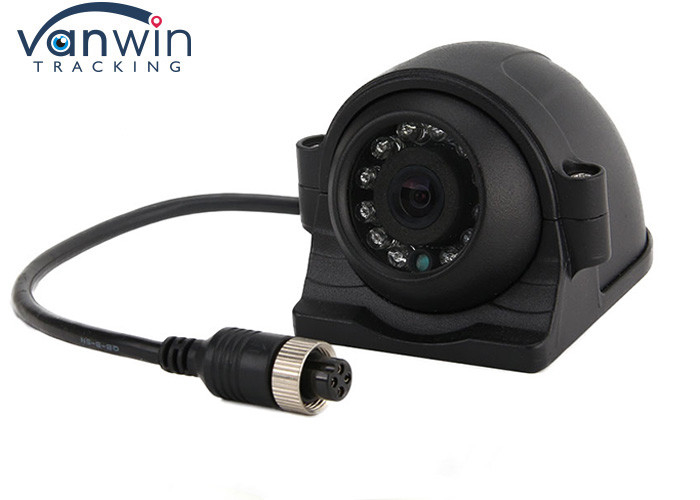

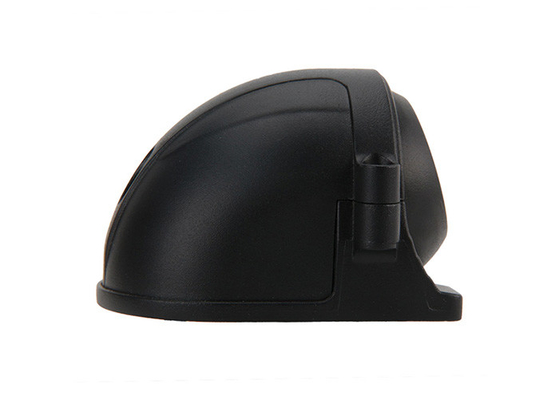

Shockproof Bus Surveillance Camera DC12V Night Vision PAL NTSC

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-206
Minimum Order Quantity: 5 pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 5,000pcs per month
Type: Side View Camera Resolution: 720P / 960P /1080P
Lens: 2.8MM / 3.6MM / 6.0MM Material: Metal Housing
Color: Housing Black Viewing Angle: 120 Degree
Ir Led: 12 PCS TV System: PAL Or NTSC
Power: DC12 Or 24V Service: OEM/ODM
Special Features: Waterproof / Weatherproof Connector: 4 PIN Connector Or RCA Connector
High Light:

Shockproof Bus Surveillance Camera

,

DC12V Bus Surveillance Camera

,

PAL NTSC Vehicle Surveillance Camera

Vehicle Surveillance Camera Night Vision Shockproof Bus Truck Side View Camera DC 12V Power Supply





The camera is used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker truck, escort car etc.





Main Specifications

Main Products
Mobile DVR system, Reverse Camera, Backup camera for car, bus, truck,
View Angle
170°
Function
Waterproof, NIGHT VIEW
Power
5w
Voltage
DC 12V or 24V
Warranty
1 years
Certification
ce, FCC, RoHS
Place of Origin
China

Guangdong
Brand Name
Vanwin
Camera Chip
Sharp Sony CCD 600TVL AHD 1080P 720P
Use
Car, Truck, Bus Rear View Camera
Lens Angel
2.8mm / 3.6mm or others
Compatible system
PAL/NTSC automatically
Water proof
IP68
BLC
Auto
Scanning System
Interlace
Working temperature
-20℃~70℃
Stock temperature
-30℃~80℃



Chip Technical Parameters


Sensor

1/2.9" IMX323 2.0MP

Video

Out

1CH BNC AHD

output, Support

TVI/CVI/CVBS Mode


System

PAL/NTSC WDR auto
Resolution 1920 (H)×1080(V) SNR >45db

Min.

illumination

0.01Lux full color

White

Belance

AWB

Electronic

Shutter

1/25s~1/100,000s DR 76db

Video

Standard

AHD

Advanced

Function

2D_DNR

Frame

Rate

1920×1080@25 fps;
1920×1080@30 fps;

Working

Environment

-25℃~+70℃,

Humidity 95%

Lens 2.1/2.8/3.6/6.0MM

Power

supply

DC 12V +/-15%





Shockproof Bus Surveillance Camera DC12V Night Vision PAL NTSC 0

Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white or netural color gift boxs.

Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.

Q: What is the MOQ ?
A: 1 piece
Q: How fast for sample delivery?
A: 3-7 days

Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.

Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the price.

Q: How about the warranty period?
A: 12 Months.

Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E.

We have a QC team with 8 years' experience.

All of the products will run through over 4 times' 100% testing before being delivered.

Timely after sales service.



Wide Applications
