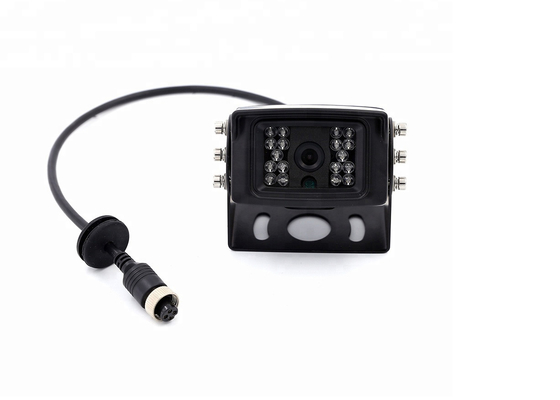

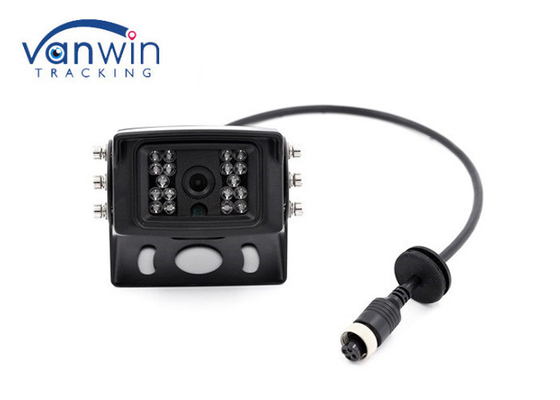

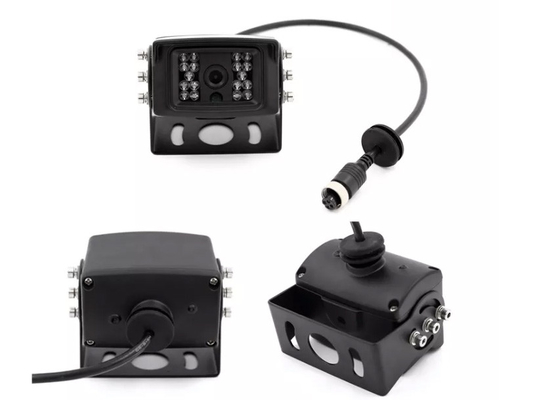

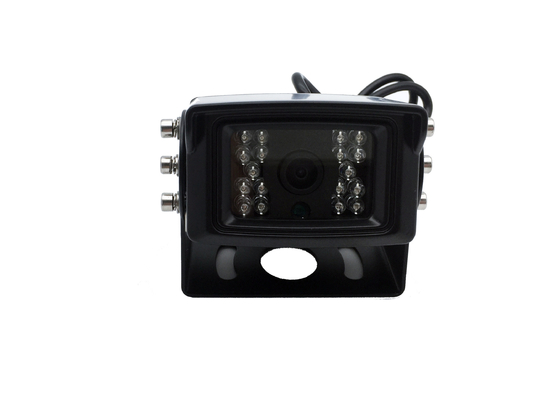

PAL NTSC Car Parking Reverse Camera CMOS CCD 720P 1080P IP69 Waterproof

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-386
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
TV System: PAL Or NTSC Test Time: Over 48 Hours
Waterproof: IP69 IR Lights: 18pcs
Connector: 6pin Or RJ45 Port, 4pin, BNC Type: Vehicle Surveillance Camera
Lens: 2.1mm/2.8mm/3.6mm/6.0mm Advantage: SMT Factory Plus Strict Production
Sensor: CMOS And CCD Ir Distance: 5-10m
Power: 12V/ 24V Warranty: 12 Months
High Light:

PAL NTSC Car Parking Reverse Camera


CMOS CCD Car Parking Reverse Camera


IP69 Waterproof Car Surveillance Camera

AHD CCD HD 720P 1080P IP69 Waterproof Security Backup Car Parking Reverse Camera Truck for Cars


Vehicle Mobile NVR keeps an eye on fleet assets while also recording crucial evidence from all-important road events.

Our MDVR/NVR system are designed to be modular and fit the exact needs of our customers. Not only do we provide a whole
lineup of hardware solutions, but our software is configurable to your specific recording and data needs.


Main Specifications


1080P IP camera as example

Type Model VW-386 1080P
Camera Main processor Hi3516EV200
Image sensor 1/2.9" Progressive Scan CMOS
Horizontal Resolution 3MP
Min.Illumination Color:0.1Lux/F1.2(0Lux IR Leds ON)
S/N Ratio ≥50dB
Day/Night mode ICR IR filter automatically switches
Lens 2.8mm/3.6mm
IR distance ≤10M
Electronic shutter 1/25-1/10000
White Balance Support
BLC Support
Noise Reduction Support 3D NR
WDR Support D-DWR
Motion Detection Support
Privacy Shelter Support 4 areas
Video Video compression standard H.264 ,H.265
Video resolution Main stream:2304×1296,1920×1080,Sub stream:704*576 ,640*360 , 352*288
Video frame rate 3MP(20fps50HZ/60HZ),2MP(25fps50HZ/60HZ)
Video adjustments Brightness, saturability,chroma,contrast,sharpness adjustment
compression standard Compression output rate 32 Kbps~16Mbps
Audio Audio Optional,G.711U
Input 1CH In
Output 1CH Out
Network function Interface Protocol Support ONVIF
Network protocol HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.)
Client iPhone, iPad, Android,Wind ows
Port Ethernet RJ-45 10M/100M
General specification IP-rated IP68 waterproof
POE POE 12V optional
Working Temperature -20°C~+70°C
Power supply DC12V±10%
Power consumption ≤ 6W
Size 79*67.4*68.3


PAL NTSC Car Parking Reverse Camera CMOS CCD 720P 1080P IP69 Waterproof 0

We are different from other suppliers.Welcome you to test and compare.


Our advantages

1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process:

Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing

3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .

4.We explore some wide angle or special cameras to meet your requirements that others don't have.


PAL NTSC Car Parking Reverse Camera CMOS CCD 720P 1080P IP69 Waterproof 1
