Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW609GS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Features: GPS ,3G,G-sensor,UPS ,4CH Alarm Input Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets
Power Supply: 8V-36V H.264 Format: Yes
Storage Capacity: Dual SD Cards For Storage Or Single SD For Optional Product Name: Dual SD Card 4ch Full D1 Mobil Dvr Recorder With GPS And 3G Windows PC
Agents: Welcome
High Light:

SD Card 4CH Mobile DVR

,

H.264 format 4CH Mobile DVR

,

3G Dual SD Card Mobile DVR

Product Description

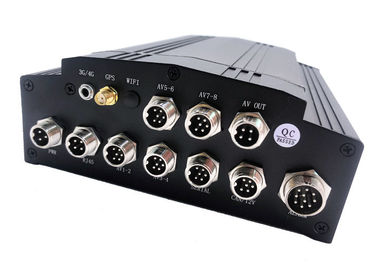

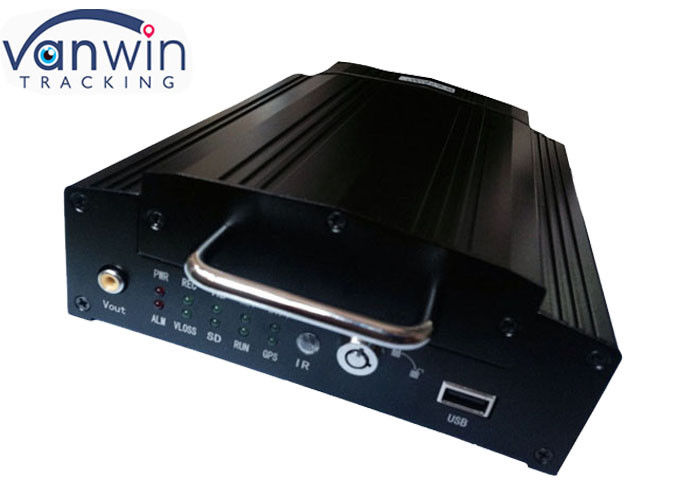

4CH DVR Digital Video Recorder H.264 Format With G Sensor EVDO 3G Transmission Video



SD Card Mobile DVR Features

1)  4CH, Support 4 cameras

2) H.264 format

3)  SD card for storage

4) GPS tracking

5) 3G remote control

6) UPS technology to protect sudden power off

7) the Power and mainboard are integrated with much better quality

8) G-sensor to protect crash level for analysing accidents

9) Mini size and light on weight,simple but hot selling

4ch mobil dvr recorder is mainly used for vehicle fleeting management with 3G live video ,GPS tracking.

You can see and monitor what passengers and drivers are doing by PC or Mobile phone,where they are with GPS positioning. Very necessary for School Bus,Car ,Taxi,Bus ,Tailer or any other vehicles.



Specifications



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

4-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel

Resolution

CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting dual SD card, which supports up to 32G

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

Function Alarm

GPS overspeed alarm, acceleration alarm, motion detection alarm

Communication Ports

RS232, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system for selection;

Compatible with GPRS, EDGE;

Embedded Wi-Fi module;

GPS (Optional)

Supporting external GPS

Remote Data Transmission Channel Selection

Supporting 3G, Wi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local ad client software;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Delayed shutdown

3. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@4*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.5W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

141(L)×133(W)×43(H)mm





RQA

1) The server software is free? What are the system requirements to use this software?

Yes, it is free of charge.For server setup, you need to buy a static IP adress from your local network provider, and then the computer should

be with good performance (HDD capacity should be above 500GB, Memory above 4G, CPU above 2G, with dual core,

Network interface should be 100 Mega or 1000 mega.

2 What Operating system needs to be used? Windows 7 or 8 or Windows server? Can the WIFI auto download

software be placed on the same system?

RE: yes, you could use windows system, 7 or 8 are both okay. Also the wifi auto download software are with the same

system. In fact, our current software are all based on windows system(only Clients is with android system)

3) When we start using your server and after some time we build our own,can the IP address in the

units be changed remote or do we do this by wire?

If you build your own server, then you could change the DVR local settings by manual. After you used your own server,

then you could run the server TOOl software, then you could remotely change the settings of your vehicles, this is no problem.
