H.264 HDD SSD IPC 4 Channel Mobile DVR GPS WiFi For Truck Vehicle Car

Basic Information
Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW804HD
Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Power Supply: 8V-36V Wide Voltage Client Software: PC And Mobile Phone Supported
Network: 3G/4G WCDMA/EVDO Resolution: 720P/1080P
Network Port: RJ45 Video Compression: H.264
Alarm: 6CH Alarm Inputs, 2CH Alarm Output Audio Output: 1 Channel VGA Video Output, 1 Channel Aviation Connector Video Output
Type: 4CH Mobile NVR Storage: 1*2TB HDD+1*256GB SD Card
Shockproof: Dual Anti-vibration GPS Tracking: Support
High Light:

IPC 4 Channel Mobile DVR

,

anti vibration 4 Channel Mobile DVR

,

H.264 GPS Mobile DVR

H.264 4G Mobile NVR 1080P AHD Vehicle CCTV MNVR 4 CH HDD+SD Card Storage GPS WIFI with 6PIN IPC Cameras

The system that records both the inside and outside of your vehicle to prove what really happened in any situation.

The 4 camera device support 4ch 1080P IPC cameras.



Main Features



1. Built-in HiSilicon high-performance image processing chip, H.265/H.264 encoding, high compression ratio, clear image

2. Support 4 channels of digital million high-definition input, 1 channel of video and audio synchronization output, 1 channel of VGA output,

3. Support 4ch 1080P HD real-time local video recording

Power supply: 1. Professional vehicle power supply 8-36V DC wide voltage input design

2. Various protection circuits such as undervoltage, short circuit, reverse connection, etc., suitable for various models

3. Support intelligent power management identification, automatic shutdown when low power, low power consumption after flameout Data storage:

1. Using a special file management mechanism to encrypt data to effectively protect data security

2. Proprietary disk bad sector detection technology, which not only ensures the continuity of video recording, but also prolongs the life of the disk

3. Built-in super capacitor to avoid abnormal power failure data loss and disk damage

4. Support 2.5-inch hard disk, up to 2TB

5. Support SD storage, up to one 512G

6. Support hard disk automatic heating (customization)



Main Specifications

Item
Device parameter
Performance
System
Main processor
Hi3520DV300
Operating system
Embedded Linux OS
Operating language
Chinese/English
Operating interface
GUI, support mouse
Password security
User password/Admin password
Audio
&
Video
Video standard
PAL/NTSC
Video compression
H.264
Image resolution
1080P/720P/960H/D1/CIF
Playback quality
1080P/720P/960H/D1/CIF
Compound mode
A variety of ways
Decoding ability
4ch 1080P real time
Recording quality
Class 1-4 optional
Image display
Single/QUAD display optional
Audio Compression
G.711
Audio recording
Audio & Video synchronized recording
Recording & Playback
Recording mode
Manual/Alarm
Video bit rate
Full frame 4096Mbps,4 classes image quality optional
Audio bit rate
8KB/s
Storage media
Hard Disk+SD card
Video inquiry
Inquiry by channel/Recording type
Local playback
Playback by file
Firmware upgrading
Upgrading mode
Manual/Automatical/Remote/Emergency Recovery
Upgrading method
USB disk/Wireless network/SD card
Interface
AV input
4ch aviation interface
AV output
1ch HDMI video output,1ch VGA video output, 2ch aviation AV output
Alarm input
4 digital inputs (4 Positive/Negative trigger)
HDD/SSD
1 HDD/SSD (up to 2TB, support hot plug/unplug)
SD card
1 SDXC High speed card (up to 512GB)
USB interface
1 USB 2.0 (support U disk/mouse)
Ignition input
1 ACC signal
UART
1 485
LED Indication
PWR/RUN/GPS/NET
Disk lock
1
Debug port
1
RJ45
1
Function extention
GPS/BD
Support detecting antenna Plug in/Unplug/Short circuit
3G/4G
-
WIFI
802.11b/g/n, 2.4GHz
Others
Power input
8~36V DC
Power output
5V 300mA
Power consumption
Standby 3mA
Maximum consumption 30W @12V 2.5A @24V 1.25A
Working temperature
-20 --- 70℃
Storage
1080P 1.9G/h/channel
720P 1G/h/channel
Dimension
166mm*155mm*137mm
I / O interface
Less than 1V
Low level alarm
Morethan5V
High level alarm
Operating
temperature
-40℃~70℃
In a well-ventilated environment
Dimension
147*147*40mm

How to install?

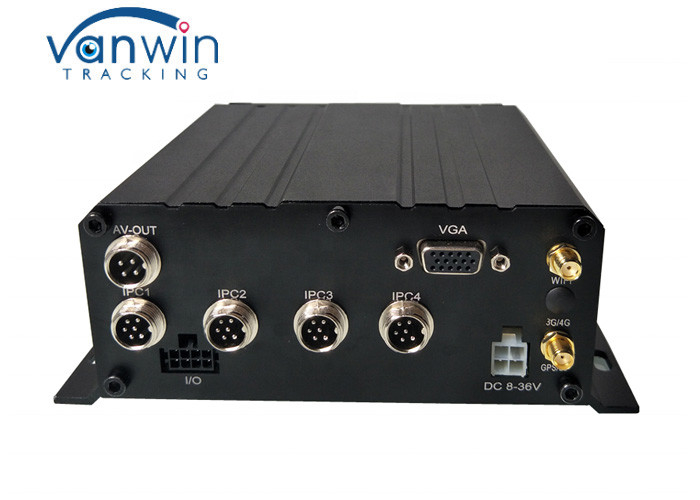

H.264 HDD SSD IPC 4 Channel Mobile DVR GPS WiFi For Truck Vehicle Car 0



Advantage of 3G Mobile DVR

1. The original chip

Further Video Recorder, each of which uses the original industrial-grade chip, can ensure stable operation in the severe cold and heat environment.

2. Humanized USB Interface

Humanized design, easy to operate, user-friendly copy of information, insert mouse/U disk.

3. Support screen switching

Supporting reverse screen enlargement, four-way video switching, providing technical support.

4. Wide Voltage Design

Vehicle broadband power supply can work steadily in the range of DC 8V-36V voltage.

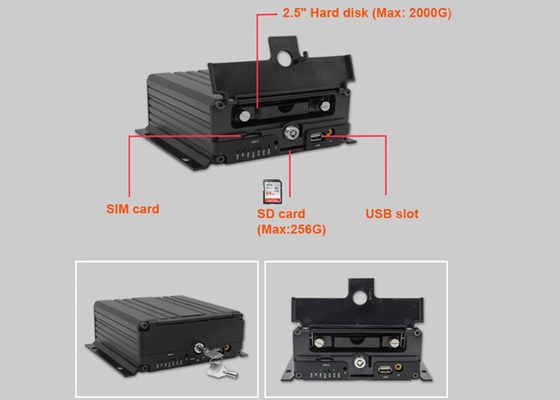

H.264 HDD SSD IPC 4 Channel Mobile DVR GPS WiFi For Truck Vehicle Car 1

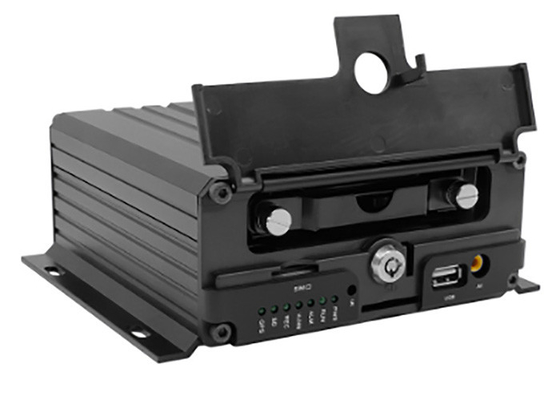

H.264 HDD SSD IPC 4 Channel Mobile DVR GPS WiFi For Truck Vehicle Car 2
