| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-204IP |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , |
| Type: | Car Dome Camera | Power: | 12V- 24V |
|---|---|---|---|
| TV System: | PAL Or NTSC | Sensor: | CMOS / CCD |
| IR LED: | 12pcs | Night Vision: | Yes |
| Audio Built-in: | Support | Ir Distance: | 10m-15m |
| Color: | Black Or Grey | Lens: | 2.1mm / 2.8mm /3.6mm |
| Lens Angle: | 90-110 Horizontal Degree | Resolution: | CMOS/CCD 600TVL, 720P/960P/1080P |
| Certification: | CE,ROHS | Warranty: | 12 Months |
| High Light: | 15m Car Roof Camera,1080P Car Roof Camera,CMOS Vehicle IP Camera |
||

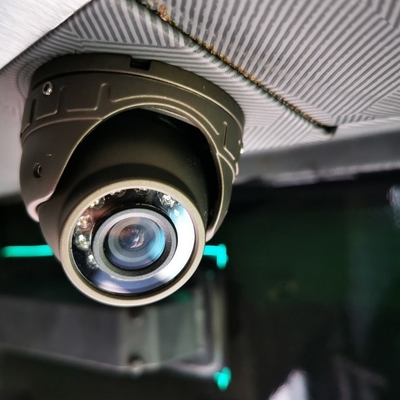

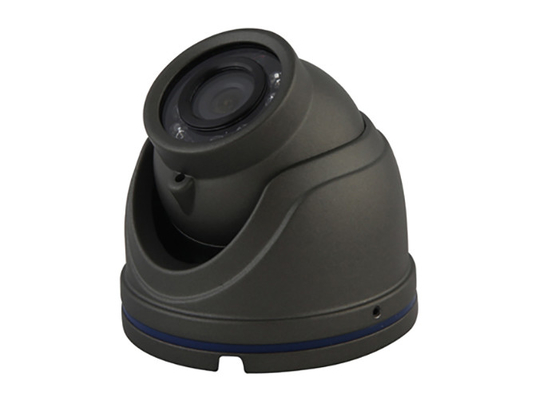

1080P Dome Inside View Poe Car Roof Night Vision Indoor Security Vehicle Network IP Camera
Camera Technical Specifications
| Camera | Main processor | FH8852V200 |
| Image Sensor | 1/2.9″ CMOS GC2063 | |
| Horizontal Resolution | 3.0MP/2.0MP(default) | |
| Minimum Illumination | Color:0.01Lux/F1.2 | |
| S/N | ≥69dB(AGC OFF) | |
| Day and night switch | EXT(default),Support IR CUT switching | |
| Electronic Shutter | 1/25S～1/10000S | |
| IR LEDS Quantity | 12pcs LEDs | |
| IR distance | ≤8 meters | |
| Lens | Lens focal length 2.8mm | 2.8mm |
| Lens mount | M12*P0.5 | |
| Video Processing | Video compression standard | H.264H.265 |
| Video resolution | Main stream: 2304x1296,1920×1080,1280×720；Sub stream:800x448 ,704x576,640x360,352x288 | |
| Video frame rate | 300W(30fps) | |
| Audio | Audio | G.711U,G.711A |
| Audio input | Built-in Mic | |
| Network Function | Network Protocol | Support: P2P,CGI,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP, DNS,IP Filter |
| Access Protocol | Support ONVIF Protocol | |
| Interface | Communication interface | 10/100M adaptable Ethernet interface, RJ45 |
| General Specification | Waterproof grade | IP65 |
| Operating Temperature | ,-20°C~+70°C | |
| Power Supply | DC12V±10% |
There are 2 kinds pof connectors for option
1. 6-pin connector
2. RJ45+DC connector
We are different from other suppliers.Welcome you to test and compare.
Our advantages
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
FQA
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
