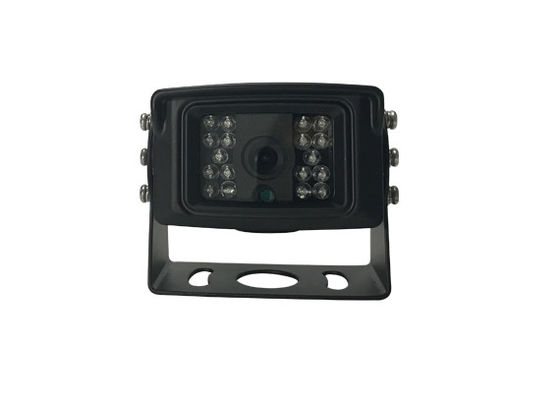

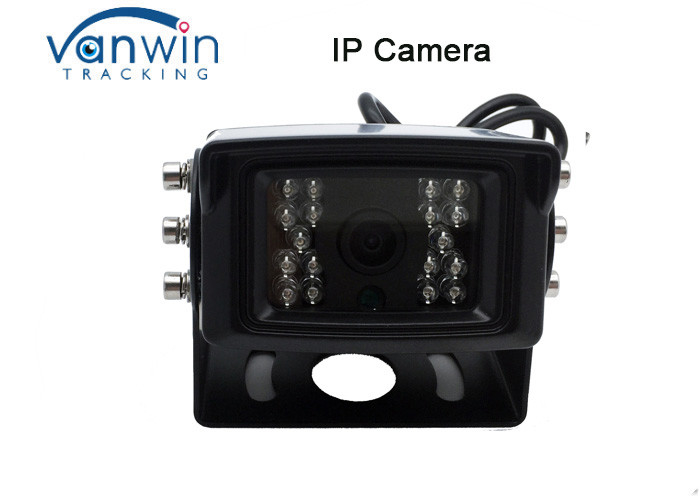

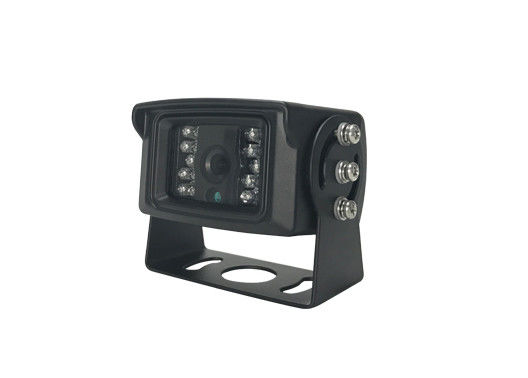

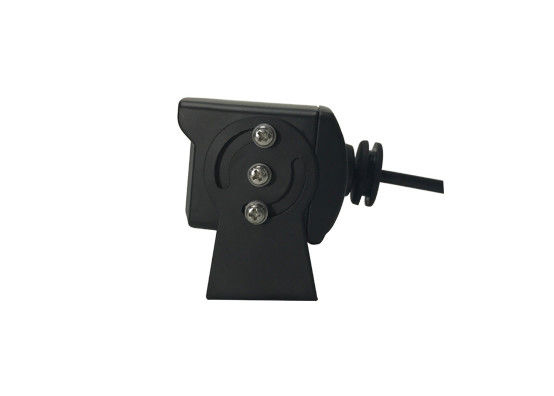

1080P 24V 48V Rear View Surveillance IP Camera IPC Waterproof Night Vision For Truck Bus
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-386IPC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Surveillance IP Camera | Connector: | 6pin Or RJ45 Port |
|---|---|---|---|
| TV System: | PAL Or NTSC | Test Time: | Over 48 Hours |
| Waterproof: | IP68 | IR Lights: | 18pcs |
| Lens: | 2.1mm/2.8mm/3.6mm/6.0mm | Power: | 12V/ 24V / 48V |
| High Light: | IP68 Surveillance IP Camera,Waterproof Surveillance IP Camera,IPC 1080P night vision IP camera |
||
Product Description
1080P 24V/ 48V Rear View IPC Waterproof night vision IP camera for truck bus
HD Waterproof Aluminum Rear/Front View Camera For Truck, Vehicle, Car, Bus
Main Specifications
| Type | Model | VW-386IPC1080P | ||
| Camera | Main processor | Hi3516EV200 | ||
| Image sensor | 1/2.9" Progressive Scan CMOS | |||
| Horizontal Resolution | 3MP | |||
| Min.Illumination | Color:0.1Lux/F1.2(0Lux IR Leds ON) | |||
| S/N Ratio | ≥50dB | |||
| Day/Night mode | ICR IR filter automatically switches | |||
| Lens | 2.8mm/3.6mm | |||
| IR LEDs | 18 PCS | |||
| IR distance | ≤10M | |||
| Electronic shutter | 1/25-1/10000 | |||
| White Balance | Support | |||
| BLC | Support | |||
| Noise Reduction | Support 3D NR | |||
| WDR | Support D-DWR | |||
| Motion Detection | Support | |||
| Privacy Shelter | Support 4 areas | |||
| Video | Video compression standard | H.264 ,H.265 | ||
| Video resolution | Main stream:2304×1296,1920×1080,Sub stream:704*576 ,640*360 , 352*288 | |||
| Video frame rate | 3MP(20fps50HZ/60HZ),2MP(25fps50HZ/60HZ) | |||
| Video adjustments | Brightness, saturability,chroma,contrast,sharpness adjustment | |||
| compression standard | Compression output rate | 32 Kbps~16Mbps | ||
| Audio | Audio | Optional,G.711U | ||
| Input | 1CH In | |||
| Output | 1CH Out | |||
| Network function | Interface Protocol | Support ONVIF | ||
| Network protocol | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, IP Search(Support P6S IP camera, DVR, NVS and etc.) | |||
| Client | iPhone, iPad, Android,Wind ows | |||
| Port | Ethernet | RJ-45 10M/100M | ||
| General specification | IP-rated | IP68 waterproof | ||
| POE | POE 12V optional | |||
| Working Temperature | -20°C~+70°C | |||
| Power supply | DC12V±10% | |||
| Power consumption | ≤ 6W | |||
| Size | 79*67.4*68.3 | |||
Vehicle Mobile NVR keeps an eye on fleet assets while also recording crucial evidence from all-important road events.
Our MDVR/NVR system are designed to be modular and fit the exact needs of our customers. Not only do we provide a whole
lineup of hardware solutions, but our software is configurable to your specific recording and data needs.
We are different from other suppliers.Welcome you to test and compare.
Our advantages
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
