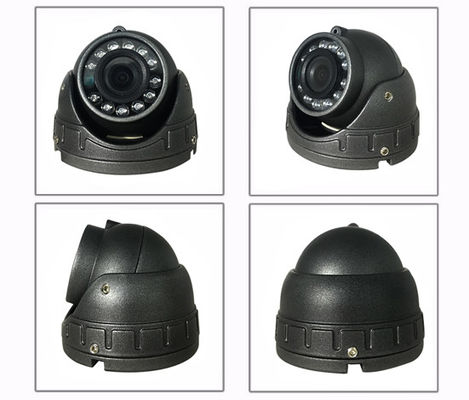

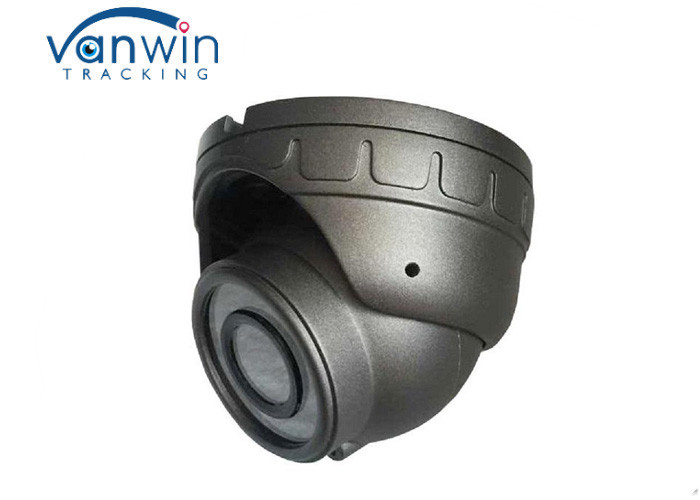

Night Vision Inside View Car Dome Camera Car Video Recorder HD 1080P

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-204IP
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month ,
Type: Car Dome Camera Power: 12V- 24V
TV System: PAL Or NTSC Sensor: CMOS / CCD
IR LED: 12pcs Night Vision: Yes
Audio Built-in: Support Ir Distance: 10m-15m
Color: Black Or Grey Lens: 2.1mm / 2.8mm /3.6mm
Lens Angle: 90-110 Horizontal Degree Resolution: CMOS/CCD 600TVL, 720P/960P/1080P
High Light:

RoHS Night Vision Car Dome Camera

,

Anti collision Car Dome Camera

,

HD1080P Car Video Recorder

Night Vision Inside View Bus vehicle Camera Car Video Recorder HD 1080P Interior Dome Camera

Main Features

1. Low power consumption, easy dissipate heat;

2. Good color reduction and picture quality;
3. Mini conch construction, Exquisite, beautiful and fashion;
4. High hardness, Anti-collision;
5. Built in imported 12 pcs Φ5 IR LED lights, 5m shooting distance;
6. Infrared function auto on when light lower than 10Lux;
7. Use imported lens plate, good moisture-proofing;
8. Color: gray;
9. Appropriative aviation connector design;



Camera Technical Specifications



Model
VW-204 1080P
Image sensor
1/2.9” Aptina 0130 with Nextchip2431
Resolution
720P/1080P
Signal system
PAL/NTSC
Pixel
PAL/NTSC:1280(H) x 720(V)/1920(H) x 1080(V)
Lens
Standard 2.8mm lens
Minimal illumination
0Lux
Backlight compensation
Built-in
Shutter speed
1/53~1/100,000 sec
White balance
Automatic tracking
Noise-signal ratio
>50db (AGC OFF)
Video output
1.0Vp-p,75Ω
Power
DC12V±10%
Consumption
≤3W
working temperature
-20℃ ~ +60℃
Infrared wavelength
850nm
Infrared lamp quantity
Φ5 12LED light
Infrared lamp Irradiation distance
5M
Infrared lamp turn on brightness
>3Lux
Connector
VIDEO OUT (Appropriative aviation connector)

      Night Vision Inside View Car Dome Camera Car Video Recorder HD 1080P 0

We are different from other suppliers.Welcome you to test and compare.



Our advantages


1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.

2. Careful production Process:

Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing


3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been cooperating with us all the time .


4.We explore some wide angle or special cameras to meet your requirements that others don't have.



FQA

Q: What is the MOQ ?
A: 1 peice



Q: How fast for sample delivery?
A: 3-7 days



Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.



Q: How about the warranty period?
A: One year!



Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
