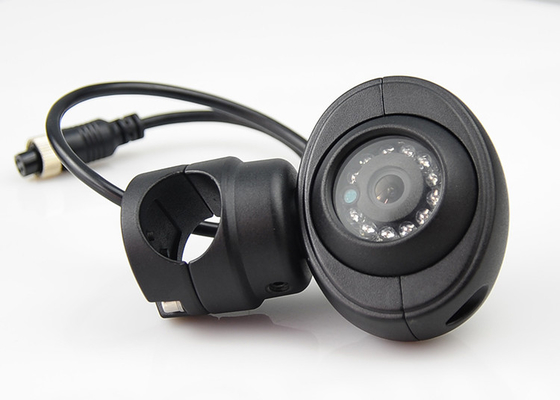

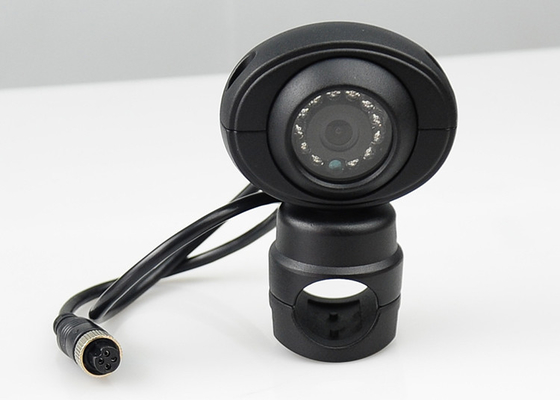

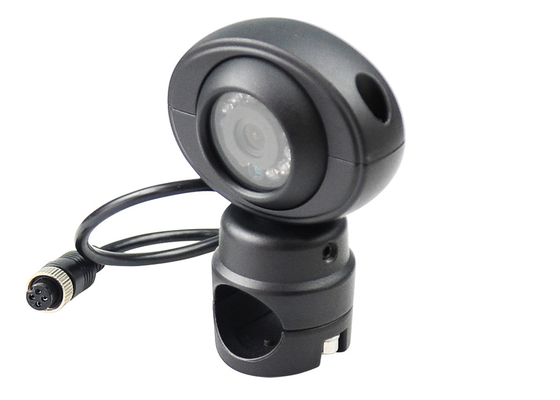

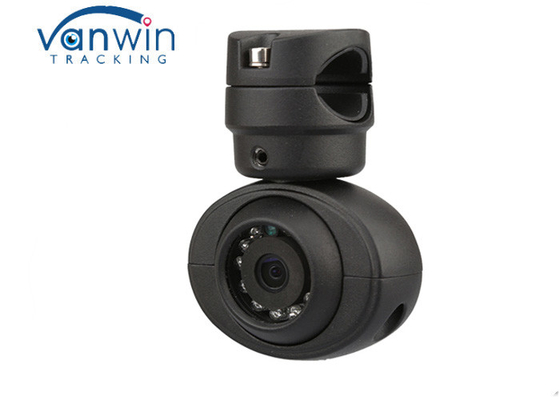

1080P Waterproof Bus Surveillance Camera Front View With Adjustable Bracket For DVR MDVR

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-396
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month; Private Mould HD CCD 700TV line / 960P AHD Front side View Bus / Truck cameras, Waterproof
Type: Bus / Truck Front Cameras Sensor: 1/3 Sharp Sony Car Camera
Voltage: DC12 / DC 24V Waterproof: IP68
TV System: PAL Or NTSC Technology: Infrared,AHD
Connector: 4 Pin Aviation, RCA, BNC Connector Lens: 3.6mm,2.8mm,2.1mm Fixed Lens
Resolution: 600TVL/700TVL; AHD 720P / 960P / 1080P Application: For Trailer / Bus / Truck / Heavy Duty
IR Light: 12 PCS Horizontal Angel: 95-130 Degree
High Light:

1080P Bus Surveillance Camera

,

Adjustable Bracket Bus Surveillance Camera

,

IP68 front view camera

Private Mold 1080P Waterproof Mobile Vehicle Truck Camera with Adjustable Bracket for DVR/MDVR


This is front view camera for heavy duty. It's viewing angle can be easily adjusted bracket to mount in a variety of different ways. Normal and mirror image is switching. Camera comes included with 4P connector, BNC or 6P connector for IP camera

Main Features:

  1. Bus/Truck front/ side view Camera
  2. High resolution 700TVL/600TVL, AHD 720P/960P/1080P for Option
  3. Waterproof, IP67, 10 IR leds(It's working well even without IR lights)
  4. Vandal-proof housing.
  5. With bracket for option

It can support Analog CCD 600/700TVL or AHD 720P/960P/1080P OR IP.



Technical parameters:

mage Sensor 1/3" PC1099 CMOS 1/4" H62 CMOS 1/3" H65 CMOS 1/2.9" Sony IMX323 CMOS 1/2.9" Sony IMX307 CMOS
Signal System PAL / NTSC
Image Resolution 900TVL 1.0MP 1.3MP 2.4MP 2.4MP
Picture Pixels 962(H)*576(V) 1280(H)*720(V) 1280(H)*960(V) 1920(H)*1080(V) 1920(H)*1080(V)
Video Frame Rate / 720p@25fps or 30fps 960p@25fps or 30fps 1080p@25fps or 30fps 1080p@25fps or 30fps
Video Output CVBS: 1.0Vp-p, 75Ω AHD (TVI or CVI is optional)
Transmission Distance / More than 500m via 75-3 coaxial cable
Minimum Illumination Color: 0.1Lux, B/W: 0.01Lux, 0Lux (IR ON) Color: 0.1Lux, B/W: 0.01Lux, 0Lux (IR ON) Color: 0.1Lux, B/W: 0.01Lux, 0Lux (IR ON) Color: 0.01Lux, B/W: 0.001Lux, 0Lux (IR ON) Color: 0.001Lux, B/W: 0.0001Lux, 0Lux (IR ON)
Lens 3.6mm 2MP IR board lens 2.8mm or 3.6mm 2MP IR board lens 3.6mm 2MP IR board lens
Sync System Internal Synchronization
Electronic Shutter PAL: 1/50 (NTSC: 1/60) -1/100,000 Sec PAL: 1/25 -1/50,000 Sec, NTSC: 1/30 -1/60,000 Sec
S/N Ratio More than 50dB
Day and night Auto (ICR) / Color / B/W
Infrared LED Φ5*12pcs LEDs
IR Distance 5-10m
D-WDR / Support
Noise Reduction / 3D NR
White Balance Auto / Manual
Gain Control Auto
General
Operation Temperature -30°C~+60°C / Less than 95%RH (No condensation)
Power Supply DC12V+/-20%
Cable 60cm power & video cable with Aviation connector

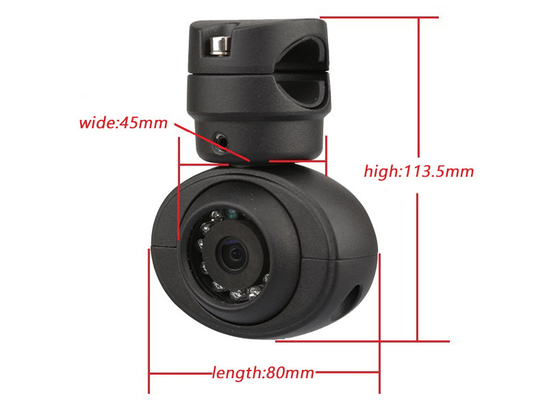

Dimension Φ79*113mm
Housing IP66-rated black color metal case, with Bracket


Application:



1080P Waterproof Bus Surveillance Camera Front View With Adjustable Bracket For DVR MDVR 0

1080P Waterproof Bus Surveillance Camera Front View With Adjustable Bracket For DVR MDVR 1
