Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW629HD-GSW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month; High End Customization 4G / 3G HD Mobile DVR Model with RS232, Seat Sensor, Oil sensor
Get Best Price Contact Now

Detail Information

Type: 4 Channel 1080P AHD Car DVR Vehicle CCTV MDVR Storage Capacity: 2.5" SATA HDD Or SSD, 1TB / 2TB
Cameras: Analog / AHD 720P / 960P/1080P Resolution: 4CH Full 1080P/720P/D1/CIF
Oil Sensor: Support Seat Sensor: Support
Phone Hotspot: Support Panic Button: Support
Alarm Inputs: 8-channel On/off Signal Alarm Input, 1-channel On/off Signal Alarm Output Storage Card: Supporting One 2.5"hard Drive And One SD Card
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Basic Function: 4 Cameras,3G 4G Real Time,GPS Tracking, WIFI Download
High Light:

HDD Recording HD Mobile DVR


4 Channel HD Mobile DVR


GPS 4 Channel Mobile DVR

Product Description

4 Channel 1080P AHD Car DVR Vehicle CCTV MDVR 2TB HDD Recording GPS 4G Truck/Taxi/Bus Camera System Mobile DVR Kits

How does 1080P AHD Car DVR work?


The system that records both the inside and outside of your vehicle to prove what really happened in any situation.

The 4 camera device uses 2 regular HD 1080P cameras as well as 2 HD 1080P night/day cameras,

can be saved to its hard drive to ensure a moment is never missed.

The DVR device is a power managed and wide voltage +8V~+36VDC.

The model is designed for all commercial vehicles, especially those that carry passengers.

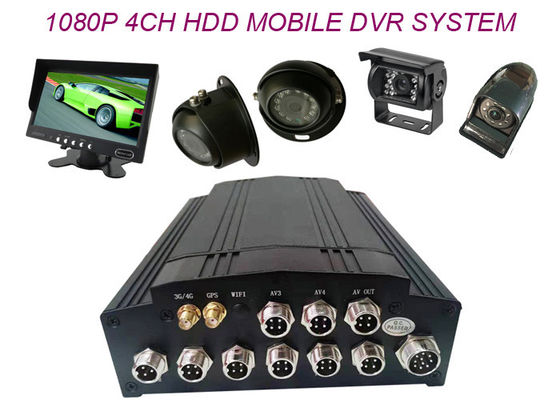

4CH 1080P HDD Mobile DVR system includes:

  1. One 4CH 1080P HDD MDVR with 3G/4G GPS WIFI for option
  2. 4 1080p cameras/ 4 Analog cameras with extension cables
  3. One Hard disk or SSD
  4. One Monitor, Sound Pick-up, Talkback device for option
  5. Canbus for option
  6. Oil sensor for Option

Vehicle CCTV MDVR Main Features


Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection
2TB HDD / SSD ,protect DVR from shock & Dust damage;
Exclusive File System protect data completeness;
ACC Delay off,can set 3- 255 mins to work;
Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
Support GPS/GLONASS,3G/4G Module Optional,WIFI extend;
Support Monitoring,Intercom, PTZ, Alarm,Overspeed,Geo Fence etc through remote control platform;
8CH Alarm inputs(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
High level aviation interface,easily installation and better shockproof, more stable;.
Easily Smart GUI Interface, saving time in device setting;


Mobile DVR Main Specifications


Item Description
OS Linux
Graphics Operation Interface System parameters can be set through external display and remote controller
Security Management 2-level management for user password, administrator password, supporting encrypted transmission
Video and Preview Video Input, Output 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω
OSD Character superposition function, information superposition of time and date, device ID and GPS, etc.
Video Compression Format Compression coding. Applying Hisilicon hi-performance processor.
Dual-Stream Supported
Preview Function Preview of 1-channle, 4-image stitching, supporting full screen triggered by event and switching of stitched images
Frame Rate PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel
Resolution AHD 1080P/ 720P, D1, CIF 4channel
Quality Grade 1 to grade 5 for selection (descending)
Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection 720P: 2048Kbps~6144Kbps

Audio Audio Input, Output 4-channel input, 1-channel output
Compression Format G.726 coding
Recording Storage Medium Supporting one 2.5” hard drive and one SD card, which supports up to 128G, supporting data redundancy storage technology;
File Format/ System Special file system
Video Strategies Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording
Video Search Searching by time, type, storage device and other conditions
Video Playback Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files
Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time
Alarm Alarm Input/ Output 8-channel on/off signal alarm input, 1-channel on/off signal alarm output
Alarm Recording Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min
Storage Space Alarm Supporting settings for alarm of storage space
Function Alarm GPS overspeed alarm, acceleration alarm, motion detection alarm
Communication Ports RS485,RS232, RJ45 10M/100M self-adaptable network interface
Wireless Transmission (Optional) Supporting Wi-Fi;
GPS (Optional) Supporting external GPS
PTZ Control Supporting PTZ control realized by local;
Parameter Configuration Supporting parameter configuration functions for mobile DVR coding channel;
G-Sensor Embedded
System Upgrading Supporting SD card, hard drive upgrading and remote upgrading
Power Supply and Power Consumption Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage DC:+8V ~ +36V
Output Voltage +12V@5*0.5A;
Power-off Protection With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure
Power Consumption <10W in normal operation; <0.5W in standby mode
Operating Environment Temperature Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃
Humidity 10% to 95%
Dimensions 160(W) x62(H) x200(D) mm.
Weight Net: 2200g, Gross: 3500g
















































































1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

2.what can you buy from us?

Mobile DVR/Mobile NVR system for Bus/Truck/Car/Taxi, Car Cameras, IP cameras, Car Monitor and CCTV accessories

3. why should you buy from us not from other suppliers?
Focus on development and manufacture of mobile DVR and car cameras for more than 10 years, have 30,000 systems installed all over the world. We welcome customized requirements on software and firmware

4. what services can we provide?

Timely and Professional service
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
4 Channel 1080P HD Mobile DVR CCTV MDVR 2TB HDD Recording GPS 4G For Truck / Taxi / Bus 0

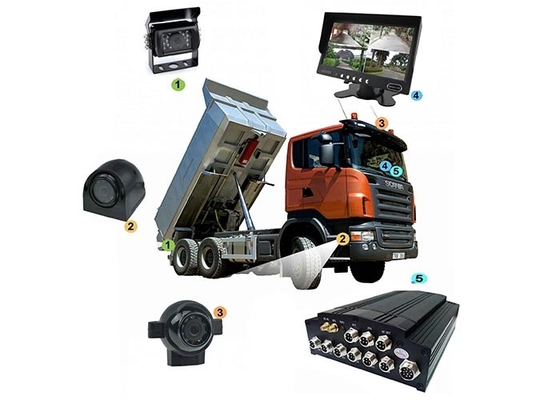

4CH HDD MDVR with 4G GPS WIFI working diagram

4 Channel 1080P HD Mobile DVR CCTV MDVR 2TB HDD Recording GPS 4G For Truck / Taxi / Bus 1
