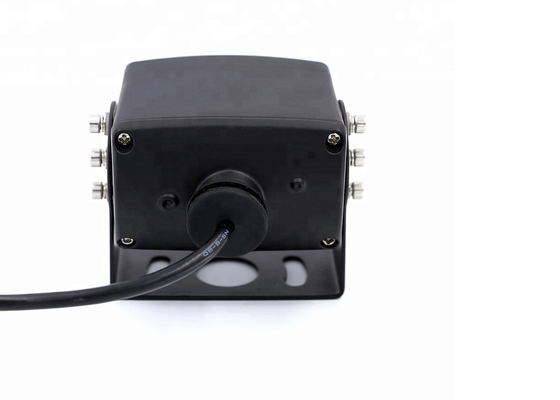

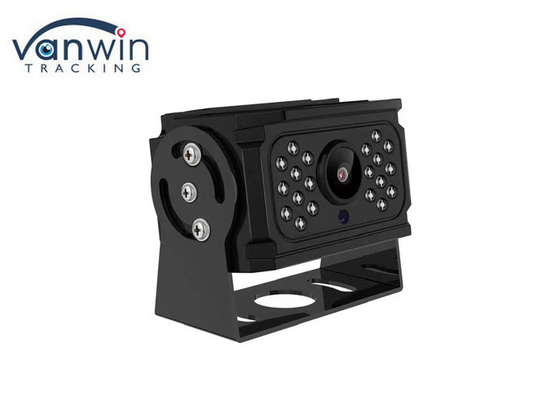

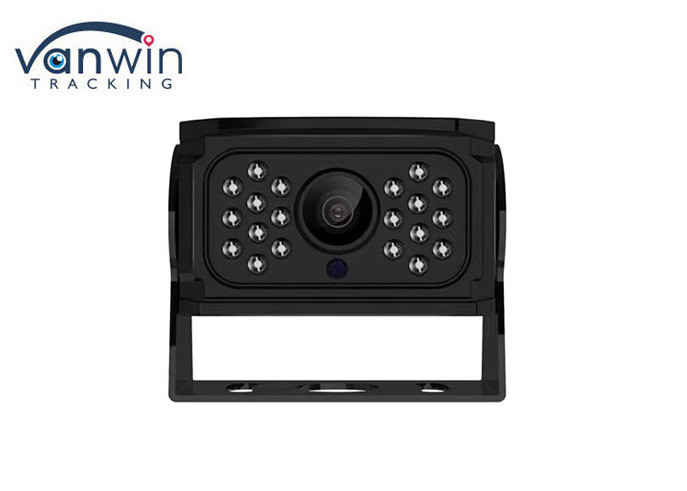

1080P AHD Waterproof Analog Surveillance Camera Bus Truck Rear View Fill Light
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-397 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Analog Surveillance Camera | Connector: | 4 PIN Or RCA BNC Connector |
|---|---|---|---|
| Sensor: | AHD 1080P,1/3" 1.3 Mega Pixels CMOS | Resolution: | CMOS CCD Analog/720P/960P/1080P Optional |
| Lens: | 2.1mm/2.8mm/3.6mm | Mode: | AHD Camera Or Analog Camera |
| TV System: | PAL Or NTSC | Test Time: | Over 48 Hours |
| Waterproof: | IP68 | IR Lights: | 20pcs |
| Advantage: | SMT Factory Plus Strict Production | Special Features: | Waterproof / Weatherproof |
| High Light: | Waterproof Analog Surveillance Camera,1080P AHD bus Analog Surveillance Camera,3.6mm bus Analog Surveillance Camera |
||
Product Description
1080P AHD Bus Truck Rear View Fill light Waterproof Analog Surveillance Camera for Heavy duty semi truck
VW-397 is our new model, waterproof and with good night vision, widely used for heavy duty vehicle like truck, bus, van as the reversing/front/ Scamera.
It can support Analog CCD 600TVL/700TVL or AHD 720P/960P/1080P for option with 4pin/BNC/RCA connector.
There is also different lens and chips to meet different customers' requirement.
Main Specifications
| Technology | infrared |
| Sensor | AHD 1080P |
| Types | rear view camera |
| Waterproof | IP68 |
| Lens | 2.1MM/2.8MM/3.6MM |
| IR LED | 20PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector |
| Material | aluminium alloy |
| Effective Pixels | 1080P 2.0MP |
| Operating Temperature | -25℃~70℃ |
| Chip Technical Specifications | |||
| Image Sensor | 1/2.9" GC2053 FH53-V1 | Video Out | 1CH BNC AHD output, |
| Support TVI/CVI/CVBS Mode | |||
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
| Min.illumination | 0.01Lux full color | White Belance | AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD | Advanced Function | 2D_DNR |
| Frame Rate | 1920×1080@25 fps; | Working Environment | -25℃~+70℃,Humidity 95% |
| 1920×1080@30 fps; | |||
| Lens | 2.1/2.8/3.6 | Power supply | DC 12V +/-15%, |
Our 1080P Truck reverse camera main features for 1080P chip:
Adopt 1080P 2.0MP San CMOS, can capture moving images
Support AHD / TVI / CVI coaxial HD output, with clear and delicate image
Illumination 0.01Lux @ (F1.2, AGC ON), 0LUX with IR
Support IR-CUT switch, CDS external control, realize day and night monitoring
Support OSD menu control, suitable for users to define settings
Support Digital Wide Dynamic
Adapt to digital noise reduction, 3D-DNR, 2D-DNR
Support UTC function
Video 6KV lightning protection, power capacitor design
Support DC 6-15V wide voltage supply
Our advantages
We are different from other suppliers.Welcome you to test and compare.
1.We all the time provide car cameras for many car bus truck factories since 12 years ago .We pay much attention to our cameras quality ,adopt A class PCB tech and 4 holes in mainboard completely insulated, isolation of the camera body from excess power, chip not touch camera body, prevent magnetic interference and ensure signal continuity.
2. Careful production Process:
Raw Material---- Accessories High Temperature Test---Assembly----Finished Products----Waterproof Test----High Low Temperature Test(Simulate -60℃to 80℃)----QA Test(IR with function Test ----Packing
3.Strict Tests one by one .
Due to our strict quality control and careful workmanship ,our clients like our cameras very much .Nearly all clients have been coorperating with us all the time .
4.We explore some wide angle or special cameras to meet your requirements that others don't have.
