800*600 1024*768 Truck Camera Kit Blind Spot Monitoring System
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VM713CR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | LED,50-6500cd/㎡ | Applicable For Power: | 12~36V |
|---|---|---|---|
| Video Inputs: | 3 Channel HD Video Input, Single Image Display, Support720P/960P/1080P | Audio Inputs: | Built-in Speaker，1 Way Audio Input |
| Car Make: | Universal | Warranty: | 18 Months |
| Resolution: | 800*600/1024*768 | Screen Size: | 7" |
| Voltage: | DC 12~36V | Color: | Black |
| Format: | PAL,NTSC | ||
| High Light: | 1024*768 Truck Camera Kit,1024*768 Blind Spot Monitoring System,DC12V Blind Spot Monitoring System |
||
Product Description
800*600 1024*768 Truck Camera Kit Blind Spot Monitoring System

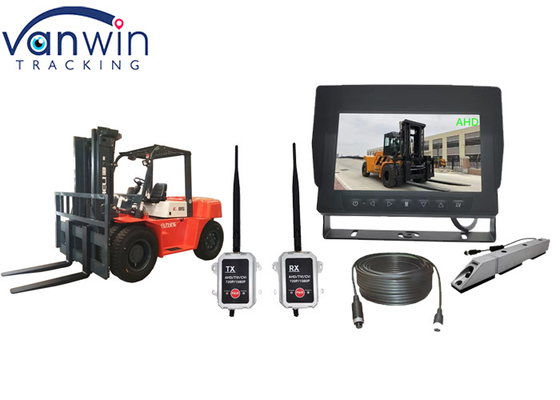

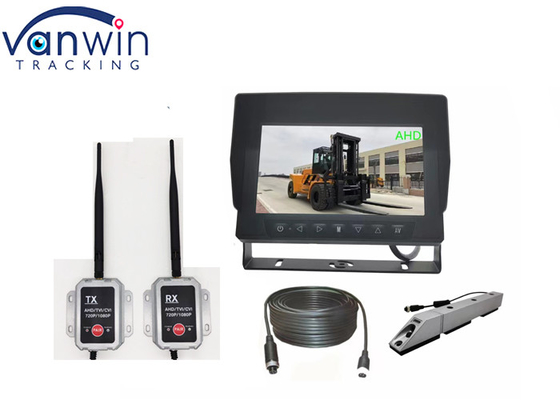

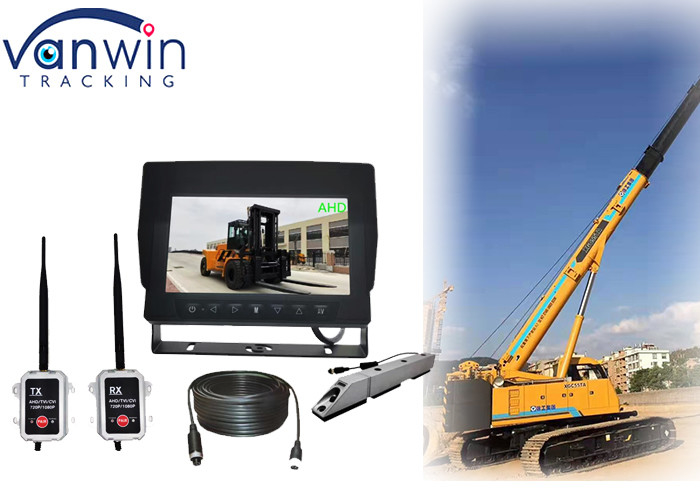

Digital Wireless Truck Camera Kit Blind Spot Monitoring System for crane truck
SPECIFICATION FOR MONITOR
7"-inch AHD vehicle mounted display (Detachable sunshade )
AV Resolution:1024*R.G.B*600 Back Light Luminance:LED,50-6500cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
3 channel HD video input, single image display, support720P/960P/1080P (Video Compatibility: CVBS /AHD)
Audio Input:Built-in speaker,1 way audio input(V2)
3 ways Trig Trigger priority:V2>V1>V3
Power supply:DC 12V-36Vinput,12V output
3videp 4pin connector
SPECIFICATION FOR CAMERA
1/3＂ COLOR CMOS ,700TVL,1.0Lux/F1.2 12V PAL/NTSC IP69K Viewing Angle45°
1/3＂AHD CMOS,1080P,200W,0.01Lux/F1.2 ,PAL/NTSC , 12V
SPECIFICATION FOR WIRELESS VIDEO TRANSMITTER&RECEIVER
