Android VGA HDMI Input AV TFT Car Monitor For HD MDVR Video Display
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VM712/912/1012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 500cd/m2 | Screen Size: | 7/9/10.1 Inch Optional(picture Showing 7 Inch) |
|---|---|---|---|
| Power Supply: | 9-36V Input, 12V Output | Resolution: | 1024*R.G.B*600 |
| Selling Points: | All The Way HDMI Input,All The Way VGA Input， | Video Inputs: | 2 Way Video Input,2 Way Audio Input,HDMI Audio Input |
| HDMI Input: | HDMI Input：Supports 720P / 1080I /1080P/CVBS Image Input | Video Frame Rate: | 720P/1080P:25f/s,30f/s/D1: 25f/s |
| Product Name: | Car Monitor With VGA HDMI Input | ||
| High Light: | AV TFT Car Monitor,HDMI Input TFT Car Monitor,AV TFT Android System Monitor |
||
Product Description
Android VGA HDMI Input AV TFT Car Monitor For HD MDVR Video Display
7 inch AV car monitor with VGA HDMI input for HD MDVR video display Android system box
This 3 in 1 VGA HDMI car DVR monitor can be used for connecting with video recorders of higher definition. HDMI can be equipped with Android system box or household, aerial photography, etc application.
SPECIFICATION
7 inch/9 inch/10.1inch AV VGA HDMIcar monitor
Resolution:1024*R.G.B*600 ,Brightness:500cd/m2
View angle:L/R: 85°,UP:85°,down: 85° degree
All the way HDMI input,All the way VGA input,
2 way video input,2 way audio input,HDMI audio input
Automatically switch to V2 when reversing
HDMI input:Supports 720P / 1080I /1080P/CVBS image input
Video frame rate:720P/1080P:25f/s,30f/s/D1: 25f/s
with light sensor receiver,can adjust screen brightness automatically day & night
Power supply:DC 9V-36Vinput,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber paint
RCA/ 4pin connector (Optional)
standard:Metal U type bracket, Detachable sunshade
/Butterfly bracket/fan bracket/Suction Cup holder/Headrest frame (optional)

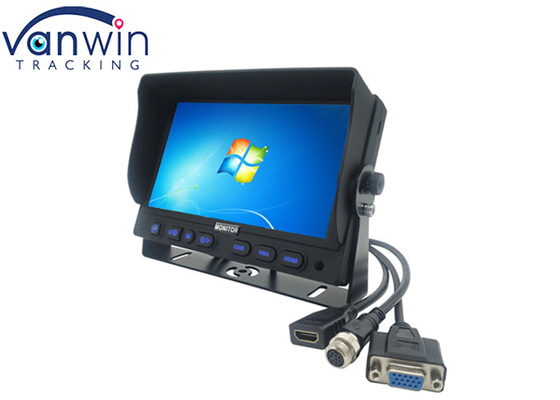

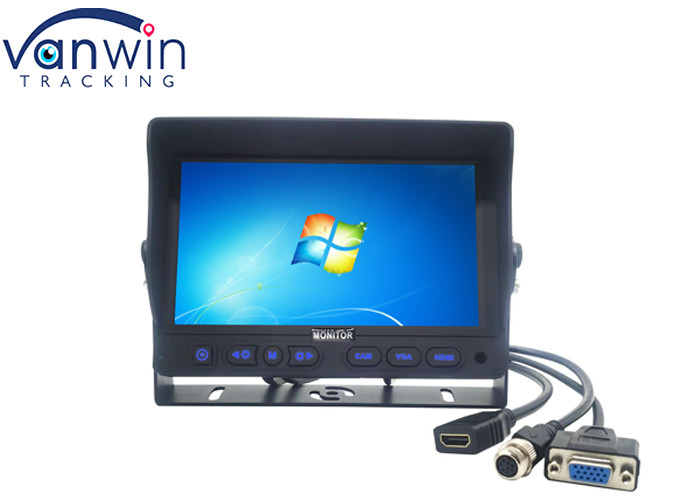

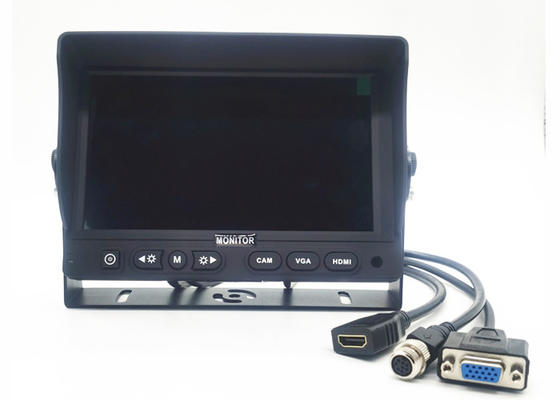

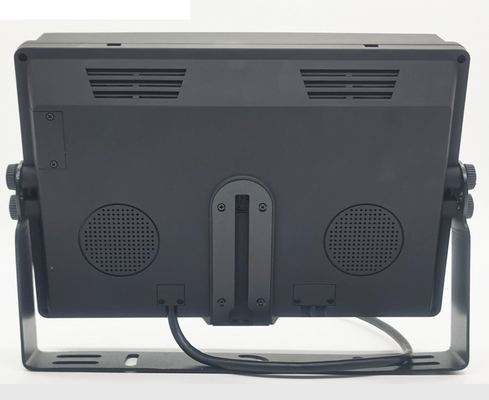

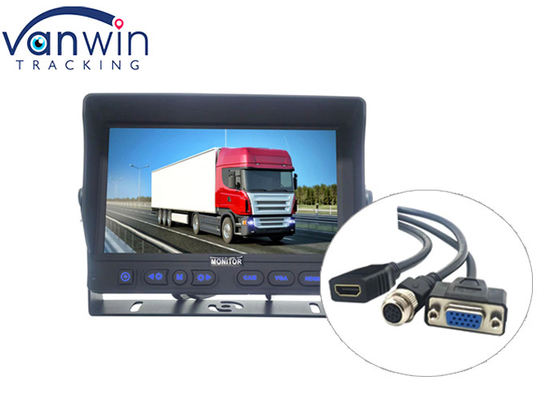

PRODUCT PHOTO
CABLE SPECIFICATION
INSTALLATION
