Rearview TFT Car Monitor VGA input With Double Recording Dispiay

Rearview TFT Car Monitor VGA input With Double Recording Dispiay

Product Details:

Place of Origin: China
Brand Name: Vanwin Tracking
Certification: CE ROHS
Model Number: VM7017HDMI

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD30-USD70
Packaging Details: Neutral package, carton box
Delivery Time: 3-15days upon payment
Payment Terms: L/C, T/T, Western Union,paypal
Supply Ability: 1000PCS/month
Get Best Price Contact Now

Detail Information

Brightness: 500-650cd/㎡ Screen Size: 7inch, With Splits Display For Both Horizontal And Vertical
Power Supply: 9-36V Input, 12V Output Resolution: 1024*R.G.B*600
Selling Points: HDMI/VGA/WITH DVR As Optional Video Inputs: AHD720P/960P/1080P And CVBS Multi-video Hybrid Input
Optional Functions: HDMI Input/VGA Input/ DVR Recording Function Product Name: 7 Inch Car Rearview Mirror Monitor With 2 Split Display For Heavy-duty Vehicles' Blind Spot Monitoring
High Light:

VGA Input TFT Car Monitor

,

7inch TFT Car Monitor

,

7inch Car Rearview Mirror Monitor

Product Description

Rearview TFT Car Monitor VGA Input With Double Recording Dispiay



7 inch Car rearview mirror monitor with 2 split display for heavy-duty vehicles' blind spot monitoring



Exclusive private model-7 inch 2 splits car rearview mirror monitor with CVBS/1080P/VGA/HDMI/DVR recording for heavy duty vehicles
Special support- multiple universal supports optional can be installed.
Support Brightness automatic adjustment. Voltage 9-36V
Support CVBS/AHD720/960/1080 mixed input, VGA input, HMDI input.
Support horizontal screen two split, support vertical screen two split.
Support video, close screen mirror, open screen reverse monitoring



SPECIFICATION
7"inch High Defintion Double Recording Dispiay
AV Resolution:1024*R.G.B*600,Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Two-channel AHD video input,adjustable display of single and two-segment images and picture-in-picture images Full images/2 images adjustable ,Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Automatically switch to V2 when reversing,Reverse reference point
TWO channels independently adjust the image flip in left, right, upper and lower directions
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
All the way HDMI input(optional)
All the way VGA input( optional)

Supports fast photography,Supports replay previous videos and images. It supports pause, fast forward, fast backward and other operations.
Video files can be locked for protection. Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual deletion
Video storage:SD high-speed card, maximum support256G
Video compression format:H.264 compression mode
Power supply: Power supply: DC 9V-36V input,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
RCA/ 4pin connector (Optional)
Dimension:220*107.2*15(33)mm

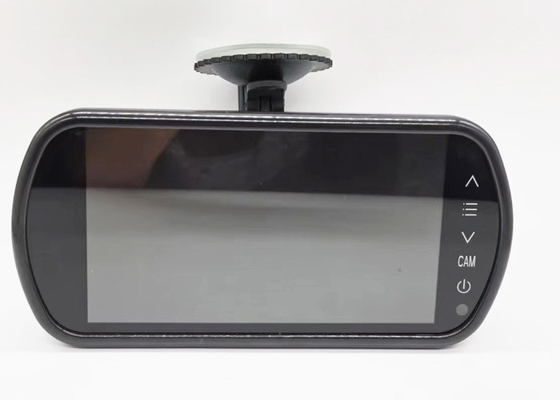

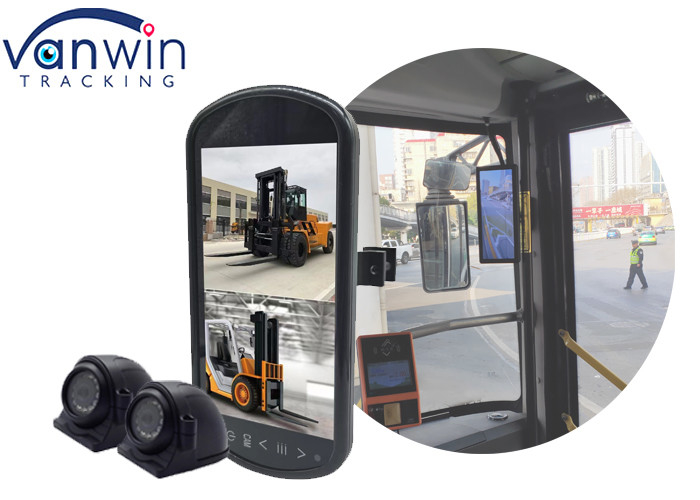

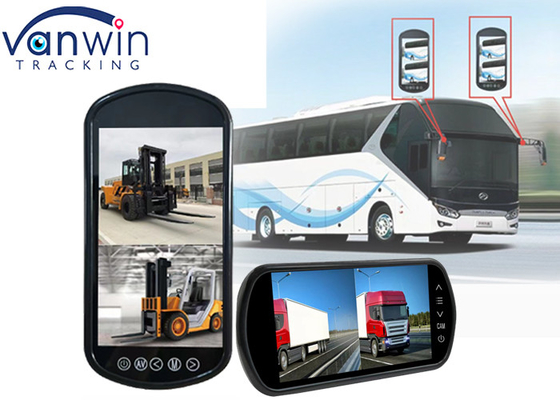

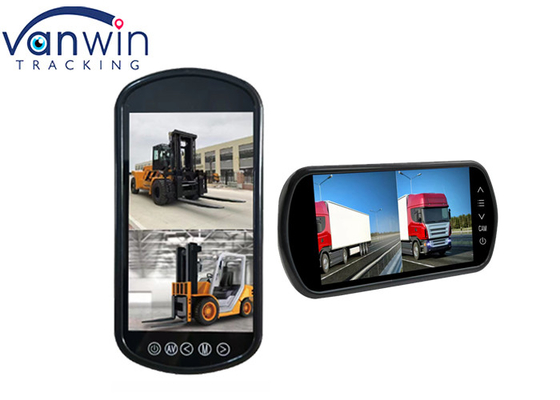

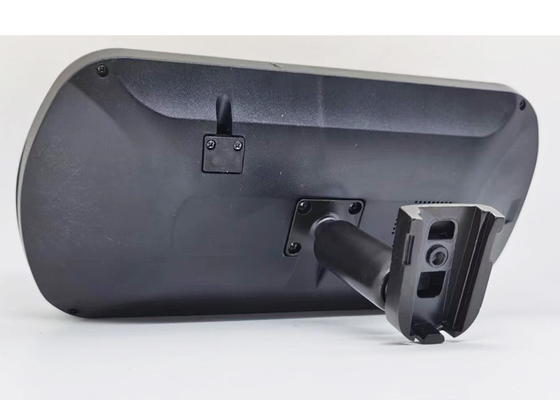

PRODUCT PHOTO

Rearview TFT Car Monitor VGA input With Double Recording Dispiay 0Rearview TFT Car Monitor VGA input With Double Recording Dispiay 1Rearview TFT Car Monitor VGA input With Double Recording Dispiay 2Rearview TFT Car Monitor VGA input With Double Recording Dispiay 3Rearview TFT Car Monitor VGA input With Double Recording Dispiay 4Rearview TFT Car Monitor VGA input With Double Recording Dispiay 5

Rearview TFT Car Monitor VGA input With Double Recording Dispiay 6







CABLE SPECIFICATION



Rearview TFT Car Monitor VGA input With Double Recording Dispiay 7Rearview TFT Car Monitor VGA input With Double Recording Dispiay 8









INSTALLATION POSITION

Rearview TFT Car Monitor VGA input With Double Recording Dispiay 9Rearview TFT Car Monitor VGA input With Double Recording Dispiay 10
