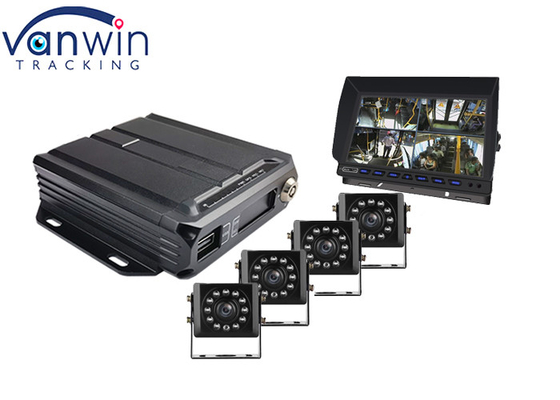

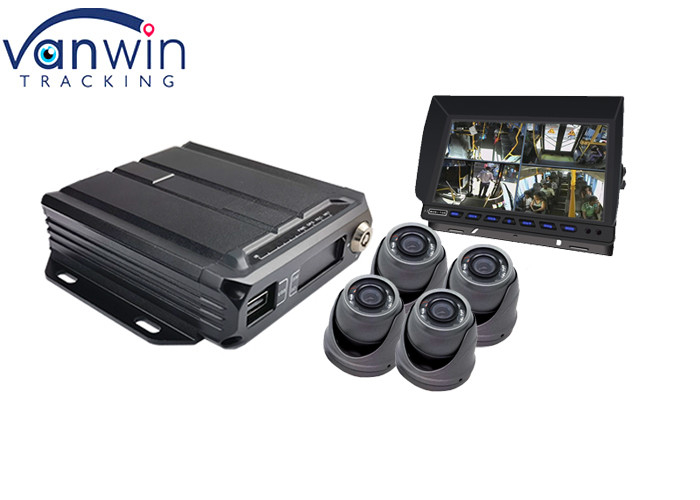

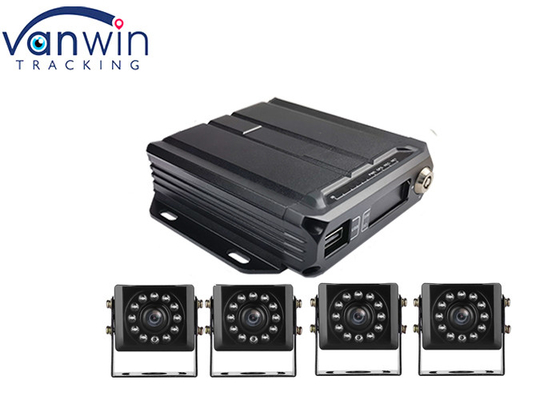

1080P AHD 4ch 3g 4g GPS SD Card Mobile DVR For Taxi Cab Mini Bus Fleets
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9504 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Video Compression: | H. 265 | Storage: | One SD Card, Max 256GB |
|---|---|---|---|
| Resolution: | Support 1080P/720P/D1/CIF | Product Name: | 4ch Mobile Dvr Support 3g 4g Gps Mdvr |
| Warranty: | 18 Months | Type: | SD Card Mobile DVR |
| Video Input: | 4 Channels AHD 1080P Video | Power Input: | DC 8V~36V |
| Gps: | YES | Playback: | Single/4 Pictures/ Customized |
| Language: | English/Chinese/Russian | Alarm Input: | 4CH Alarm Inputs |
| Channel: | 4CH | 4g: | 4G Optional |
| Applicable Vehicles Type: | Taxi, Car, Mini Bus, Mini Car, Small Trucks | Extensive Functions: | Fuel Tank Monitoring, Driving Turning Monitoring, Blindspot Alarm |
| Highlight: | 1080P AHD 4ch Mdvr,GPS SD Card Mdvr,DC8V SD Card Mobile DVR |
||
Product Description
1080P AHD 4ch 3g 4g GPS SD card mdvr for taxi cab mini bus fleets
Product advantages
- The in-vehicle interface can operate reliably and stably in complex environments
- Video encoding H.265, H.264 optional
- Support 4G /5G , GPS function module

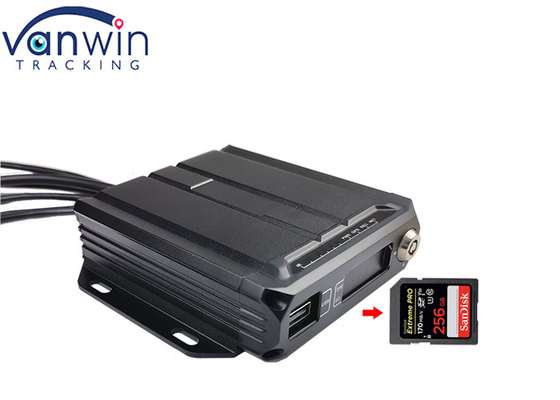

- Support one SD card,max 256GB
- Abundant peripheral interfaces
- Support external UPS battery life
- High scalability
Product Parameter
| project | Parameter Description | |
| Audio and video input | video input | AHD input: 4ch 1080P , maximum frame rate 120fps |
| audio input | 2 audio inputs | |
| Audio and video output | video output | Default 1 CVBS output (VGA output optional) |
| voice output | 1 channel voice output | |
| Audio and video parameter coding | video encoding | H.264 Main Profile/H.265 |
| Video resolution | 1080P/720P/D1 optional | |
| audio coding | Default G.726, G.711A optional | |
| storage | SD card | Support 1 SD card |
| wireless network | 4G wireless | Support 1 SIM card, optional: all mainstream communication modules in the world |
| Targeting | Beidou/GPS | Support hybrid positioning, speed detection, time synchronization |
| interface | USB | 1 USB interface, support exporting data |
| serial port | Support 1 RS232, optional 1 RS485 , external sensor | |
| I/O | 4 switch inputs, compatible with 1 analog input | |
| network port | Optional | |
| Physical Specifications | size | 100 mm (L) * 1 20.8 mm (W) * 32 mm (H) (excluding tail) |
| weight |
Bare metal: 0.6 kg FCL: 0.8kg (with M 15 Hv -SGNE1-L as standard) |
|
| working environment | Operating temperature | -20～+70℃ |
| Working humidity | 8%~90% (non-condensing) | |
| other | operating mode | Remote control, mobile APP, WEB |
| Gravity Sensing | Built-in GSensor | |
| Configurable AI algorithm | Driver identification, people counting, assisted driving, etc. | |
Product Size

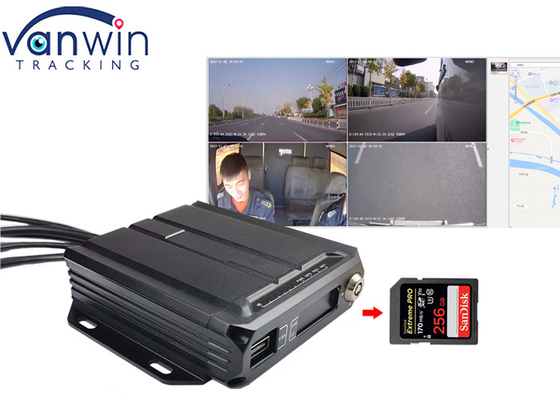

Platform Sceenshot
