7'' Waterproof IP69 AHD Vehicle Mounted TFT Car Monitor
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW718W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 500-650cd/㎡ | Product Name: | Waterproof IP69 AHD Vehicle Mounted Display Monitors |
|---|---|---|---|
| Support: | 3 Channel Video Inputs, Waterproof IP69 | Car Make: | Universal Vehicles,buses,Bus, Boat, |
| Warranty: | 18 Months | Resolution: | 1024*R.G.B*600 |
| Video Inputs: | 3 Channel HD Video Input, Single Image Display, Support720P/960P/1080P (Video Compatibility: CVBS /AHD) 3 Ways Trig Trigger Priority:V2>V1>V3 | Power Supply: | DC 12V-24V |
| Color: | Ferrous Metal | Size: | 7inch(9inch, 10.1 Inch As Optional) |
| Viewing Angle: | 160° | Format: | PAL,NTSC |
| Backlight: | LED | ||
| Highlight: | Waterproof IP69 Display Monitors,AHD Vehicle Mounted Display Monitors |
||
Product Description
7 inch Waterproof IP69 AHD vehicle mounted display monitors with 3 channel video inputs
SPECIFICATION
7"-inch AHD vehicle mounted display (Detachable sunshade)
AV Resolution:1024*R.G.B*600
Back Light Luminance:LED,LED,500-650cd/㎡
View angle: L/R:85°,UP:85°,down:85° degree
2 channel HD video input, single image display
support720P/960P/1080P (Video Compatibility: CVBS /AHD)(optional)3 channel HD video input, single image display
support720P/960P/1080P (Video Compatibility: CVBS /AHD)
3 ways Trig Trigger priority:V2>V1>V3
Reference point and time control for reverse gear setting
with light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Power supply: DC12V-36V input,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Waterproof grade: IP69K
Apearance color:Ferrous metal
standard:Metal U type bracket, Detachable sunshade
RCA/ 4pin connector (Optional)
Dimension:188*127.2*34(79)mm

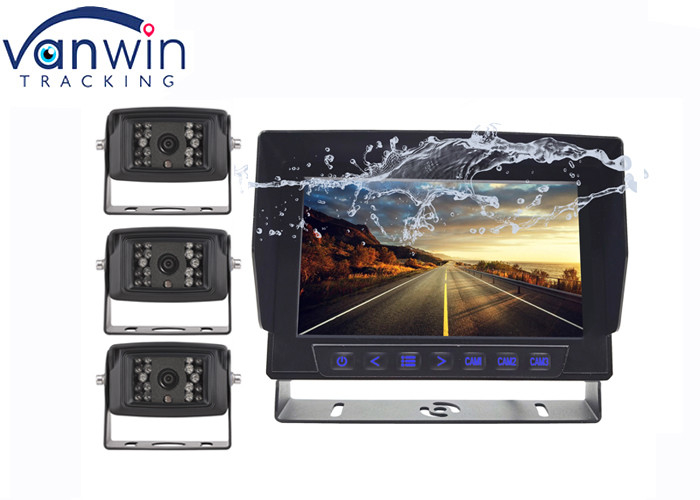

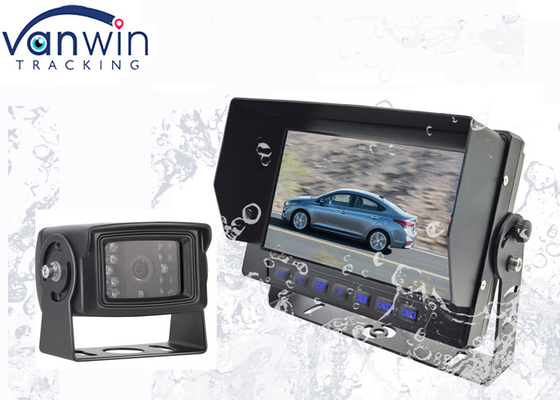

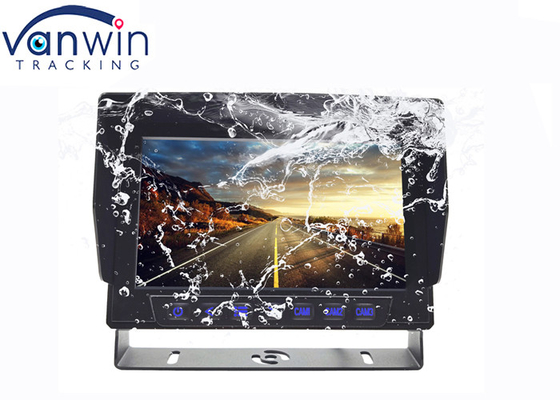

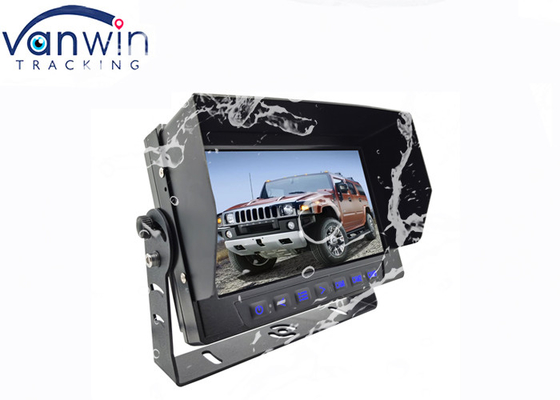

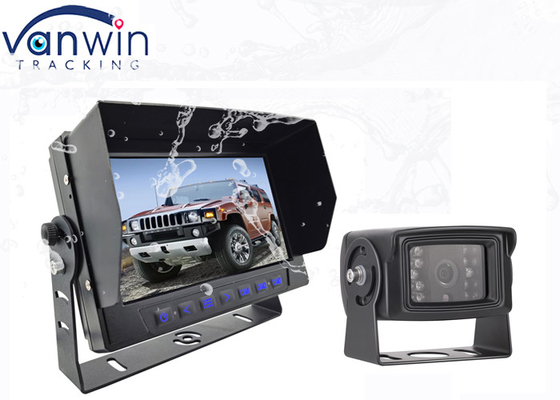

PRODUCT PICTURE
INSTALLATION
APPLICATION
