7 Inch 4ch Car Screen And Rear View Camera LCD Display Recorder For Truck RV
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW706QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 500-650cd/㎡ | Product Name: | AHD Car Monitor 7 Inch 4ch/4 Split DVR Recorder |
|---|---|---|---|
| Support: | 4 Splits, DVR Function, Sd Card Storage | Car Make: | Universal,buses,Bus |
| Warranty: | 18 Months | Resolution: | 1024*R.G.B*600 |
| Screen Size: | 7" | Power Supply: | DC 12V-24V |
| Color: | Black | Video Input: | Quad/4-CH Inputs |
| Size: | 7inch(9inch, 10.1 Inch As Optional) | Viewing Angle: | 160° |
| Format: | PAL,NTSC | Backlight: | LED |
| High Light: | 7 Inch 4ch Display Recorder,Rear View Camera LCD Display Recorder |
||
Product Description
AHD Car Monitor 7 inch 4ch/4 Split DVR Recorder Car Screen and Rear View Camera LCD Display Recorder for Truck RV
SPECIFICATION
Resolution:1024*R.G.B*600
Back Light Luminance:LED,500-650cd/㎡
View angle:L/R:85°,UP:85°,down:85° degree
Four-channel AHD video input, Full images/2 images/3images/4 images adjustable
Support AHD720P/960P/1080P and CVBS multi-video hybrid input
Twelve segmentation modes, cut into two three or four pictures to display H-type, each picture can be presented separately
Audio Input:Built-in speaker,1 way audio input
Four channels independently adjust the image flip in left, right, upper and lower directions
4 ways Trig Trigger priority:V2>V1>V3>V4
With light sensor receiver,can adjust screen brightness automatically day & night
System:PAL&NTSC auto-switching
Supports 4 channel video recording, video recording is stored into four independent files
Video files can be locked for protection. Locked files will not be overwritten and deleted.
Storage card supports overlay deletion automatically and manual deletion
Video storage:SD high-speed card, maximum support 256G
Video compression format:H.264 compression mode
Input voltage:DC + 12-36V (For operation with a camera, the required input voltage is 13V and above)
Output voltage:+11.5V/3A
Power consumption:Normal operation status ＜ 5W (not including the display screen and the camera)
High-low voltage protection&short circuit protection
Working temperature:-20℃ to 70℃
Storage temperature:-30℃ to 80℃
Appearance color: black rubber paint
Butterfly bracket/fan bracket/Suction Cup holder (optional)
RCA/ 4pin connector (Optional)

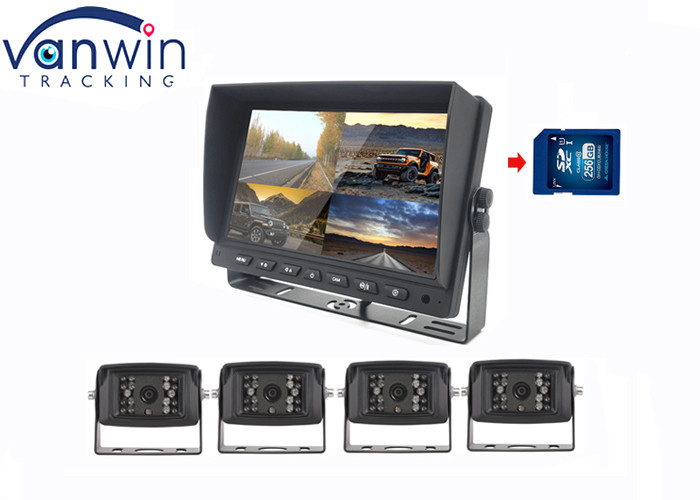

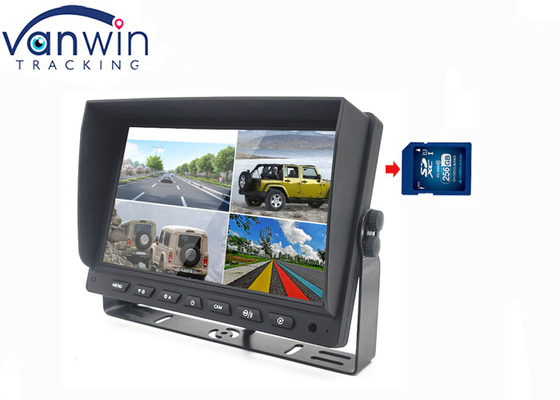

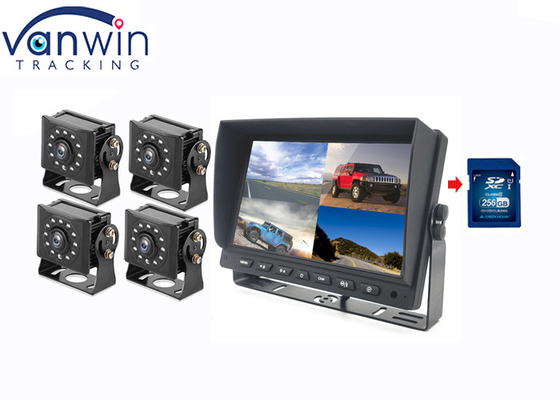

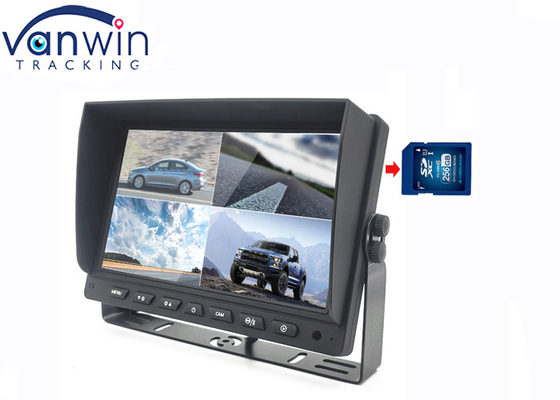

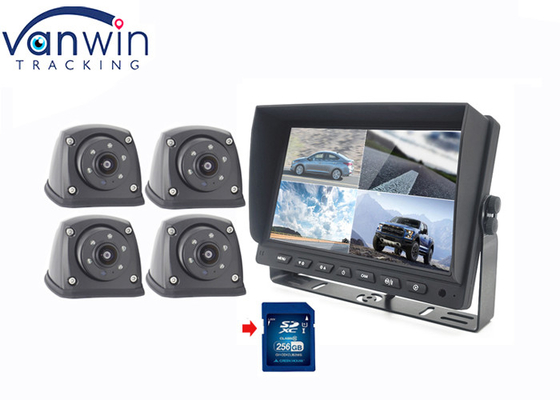

PRODUCT PICTURE
INSTALLATION
APPLICATION
