7 Inch Vehicle On Dash Backup Monitor Digital TFT LCD 2 Video Input For Mdvr Camera
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW703 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 350-400cd/m2 | Signal Input: | 2 Way Video Input，2 Way Audio Input |
|---|---|---|---|
| Car Make: | Universal Vehicles | Working Temperature: | -20℃ To 70℃ |
| Resolution: | 800*R.G.B*480 | Screen Size: | 7" 9" 10.1" Optional |
| Power Supply: | Automobile Storage Battery (12-36V) ，12V Output | Color: | Black |
| Size: | 7inch(9inch, 10.1 Inch As Optional) | Viewing Angle: | 160° |
| Format: | PAL,NTSC | Bracket: | Metal U Type Bracket, Detachable Sunshade |
| Product Name: | 7 Inch Vehicle On-Dash Backup Monitor | ||
| High Light: | 400cd/m2 7 Inch Backup Monitor,Vehicle On Dash Backup Monitor,Backup Monitor For Mdvr Camera |
||
Product Description
7 inch Vehicle On-Dash Backup Monitor Digital HD Car TFT LCD Color Screen Display with 2 Video Input for mdvr camera
SPECIFICATION
7"inch Stand Alone Monitor(Non-detachable sunshade)
Resolution: 800*R.G.B*480 ,Brightness:350-400cd/m2
View angle:L/R 70°,UP:50°,down: 70° degree
2 way video input,2 way audio input
Automatically switch to V2 when reversing
Reference point for reverse gear setting
System:PAL&NTSC auto-switching
Power supply: Automobile storage battery (12-36V) ,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber paint
standard:standard;Butterfly bracket (703 )
fan bracket(903 )
fan bracket/Suction Cup holder/Headrest frame(optional)
RCA/ 4pin connector(Optional)
703:Dimension: 172*115*24mm(47)

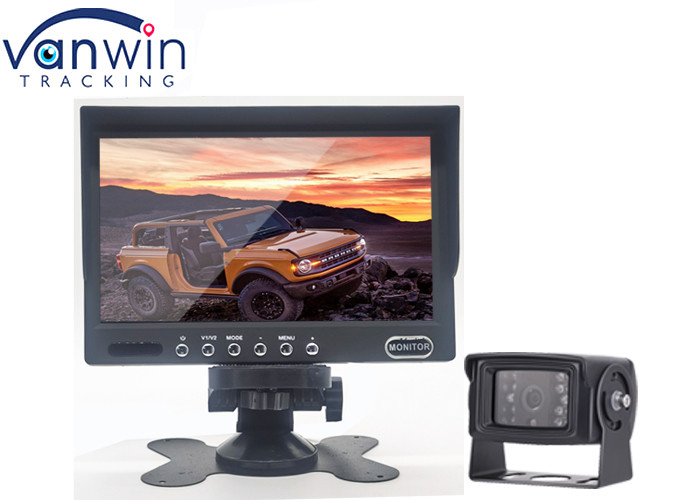

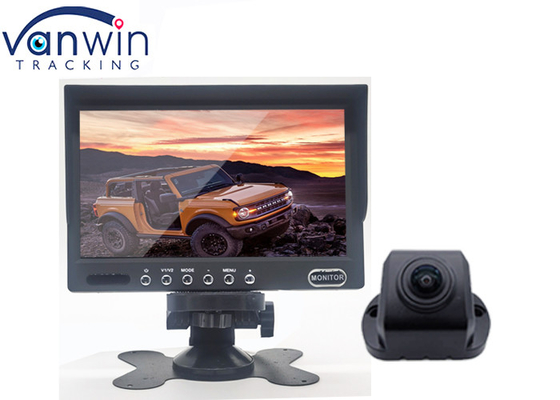

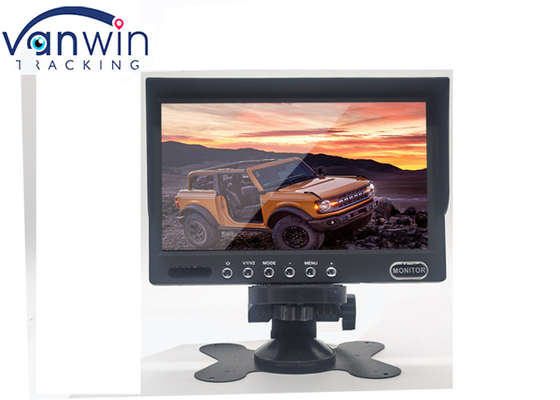

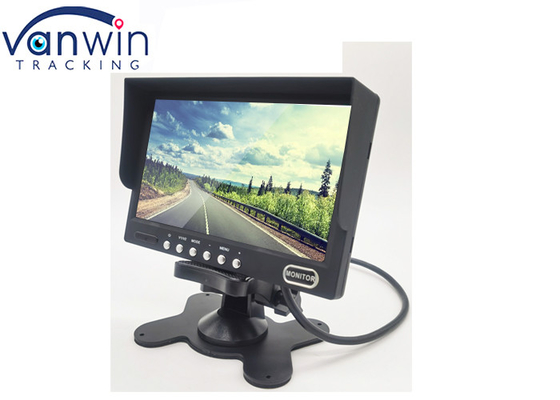

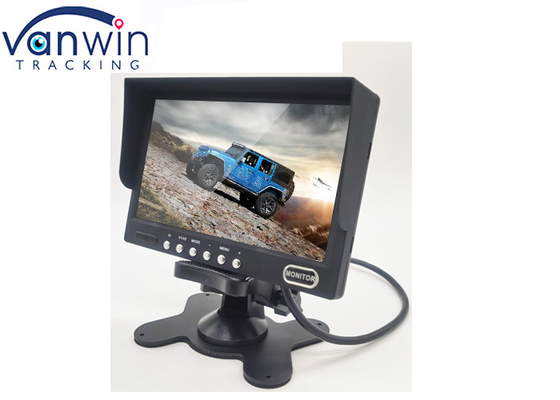

PRODUCT PICTURE
INSTALLATION
APPLICATION
