Car Monitor 7 Inch 4ch / 4 Split Rear View Camera LCD Display For Truck RV
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW703Q |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD30-USD70 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Brightness: | 350-400cd/m2 | Signal Input: | 4 Ways Video Inputs（1way Audio Input Optional) |
|---|---|---|---|
| Car Make: | Universal Vehicles | Working Temperature: | -20℃ To 70℃ |
| Resolution: | 800*R.G.B*480 | Screen Size: | 7" 9" 10.1" Optional |
| Power Supply: | Automobile Storage Battery (12-36V) ，12V Output | Color: | Black |
| Display: | Full Screen/2 Splits/ 4splits Display Optional | Viewing Angle: | 160° |
| Format: | PAL,NTSC | Bracket: | Metal U Type Bracket, Detachable Sunshade |
| High Light: | LCD Display Car Monitor 7 Inch,4ch Car Monitor 7 Inch,4splits 7 inch car display |
||
Product Description
Car Monitor 7 inch 4ch/4 Split Rear View Camera LCD Display for Truck RV
SPECIFICATION
7"inch Rear View Quad Monitor(Non-detachable sunshade)
Resolution: 800*R.G.B*480 Brightness:300-350cd/m2
View angle::L/R 70°,UP:50°,down: 70° degree
4 ways video inputs(1way audio input optional)
Full image/2 images/3images/4 images adjustable
4 ways Trig Trigger priority:V2>V1>V3>V4
Reference point and time control for reverse gear setting
System:PAL&NTSC auto-switching
Power supply: Automobile storage battery (12-36V) ,12V output
High-low voltage protection&short circuit protection
Working temperature:-20℃ to70℃
Storage temperature:-30℃ to 80℃
Apearance color: black rubber paint
standard:standard;Butterfly bracket (703 )
fan bracket(903 )
fan bracket/Suction Cup holder/Headrest frame(optional)
RCA/ 4pin connector(Optional)
703:Dimension: 172*115*24mm(47)

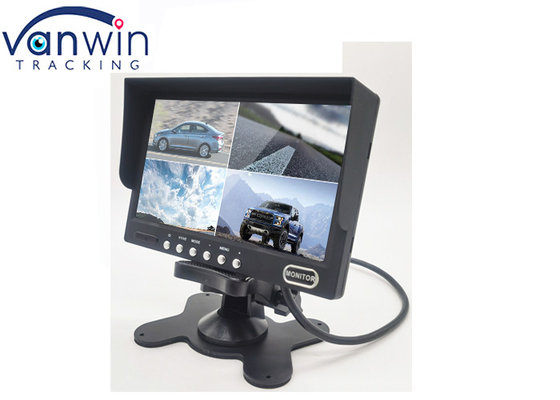

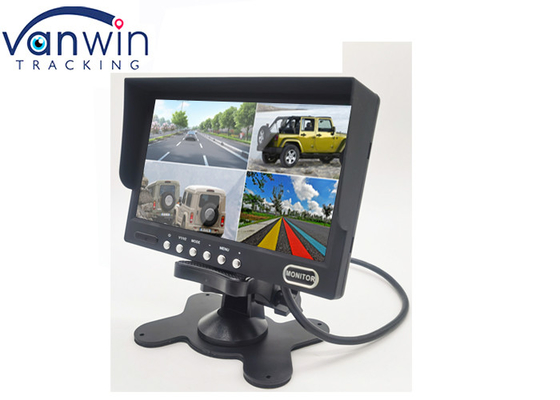

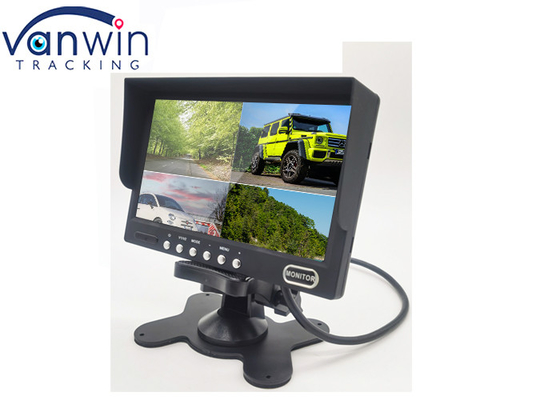

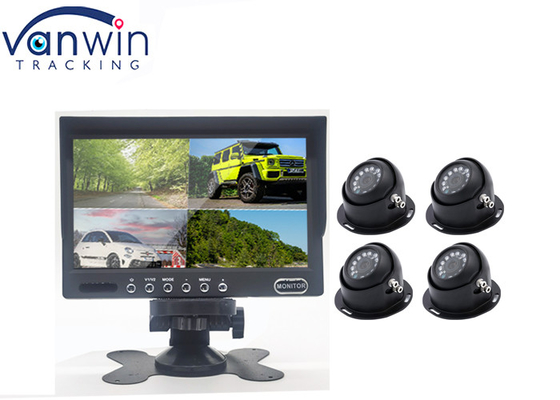

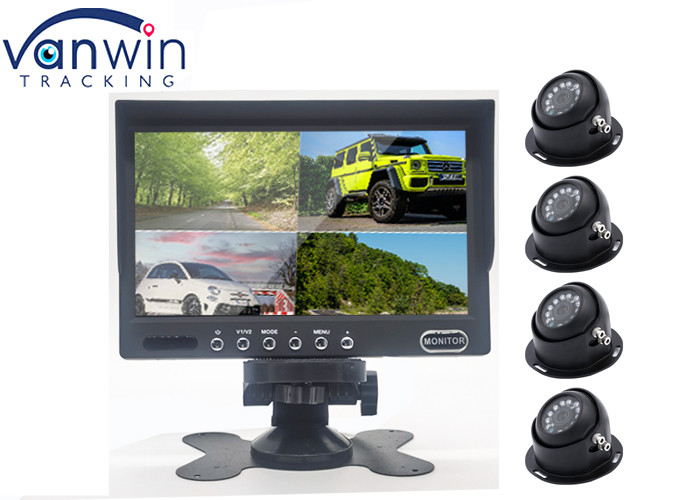

PRODUCT PICTURE
INSTALLATION
APPLICATION
