8 Channel Mobile DVR with 3G 4G GPS and 2TB HDD Support for Vehicle CCTV Monitoring
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW728 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 8 Channel HDD 4G GPS WIFI Basic MDVR AHD H.264 video mobile DVR for Bus with Mouse Operation |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Storage Capacity: | HDD/SSD, Can Support 2TB |
|---|---|---|---|
| Basic Function: | 8 Cameras Monitoring With 3G Real Time, GPS Tracking,Wi-Fi | Software Support: | Client, Server, Playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | Quality: | The World Class Anti-vibration Technology |
| System Upgrading: | Supporting SD Card, Hard Drive Upgrading And Remote Upgrading | Cameras: | 1~8 Analog Cameras |
| WIFI Download: | Support | Dimensions: | 180(W) X60(H) X195(D) Mm |
| Highlight: | 8ch Mobile CCTV Camera,4G GPS Mobile CCTV Camera |
||
Product Description
3G 4G GPS WiFi Wireless 8 Channel Mobile DVR Video Monitoring System
Product Overview
Advanced 8-channel mobile CCTV camera video monitoring system with comprehensive connectivity options including 3G/4G, WiFi, and GPS capabilities.
Main Features
- 8CH 720P/1080P HD video recording
- 2TB HDD support with 256GB SD card support
- USB slot for easy downloading
- G-sensor support
- 2-way intercom support
- GPS tracking (optional)
- 3G/4G transmission (optional)
- WiFi support (optional, 150M module)
- 8 alarm input & 2 alarm output support
- RS232/485 and RJ45 LAN port
- Remote engine stop capability
- Mirror recording in SD card
- Patent UPS power-off file protection
- VPN support
Technical Specifications
| OS | Linux |
| Graphics Operation Interface | System parameters can be set through external display and remote controller |
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission |
| Video Input | 8-channel video input |
| Video Output | 1 channel video output; 1.0Vp-p, 75Ω |
| OSD | Character superposition function, information superposition of time and date, device ID & GPS, etc. |
| Compression | H.264. Hisilicon hi-performance processor |
| Dual-Stream | Supported |
| Display | 1/4/6/8/9/16/25/36/100 channels |
| Frame Rate | PAL: 200FPS, up to 25FPS/CH; NTSC: 240 FPS, up to 30 FPS/CH |
| Resolution | 1080P, 720P, 960P, CIF, HD1 & D1 for option |
| Quality | Grade 1~ grade 5 for option |
| Audio Input & Output | 8CH input, 1CH output |
| Audio Compression | G726 coding |
| Storage | 1PC 2.5" HDD max 2TB & 1PC Max 256GB SD card for mirror recording, supporting cycle recording |
| File System | Special security file system |
| Video Strategies | Recording at startup by default, support timed recording, recording triggered by alarm and manual recording |
| Video Search | By time, type, storage device and other conditions |
| Alarm Input/Output | 8-CH on/off signal alarm input, 2-CH on/off alarm output |
| Alarm Recording | Prerecording function 15S before alarm, duration of recording upon alarm is optional from 30s ~ 30min |
| Storage Space Alarm | Supporting alarm for storage space |
| Interface | RS232/485, RJ45 |
| WiFi | Embedded Wi-Fi module |
| GPS | Support external GPS |
| 3G/4G | WCDMA/EVDO; FDD_LTE/FDD_LTE/TD_LTE |
| PTZ Control | Support PTZ control realized by local |
| G-Sensor | Embedded |
| Power Supply Features | 1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
| Input Voltage | Input: DC: +9V ~ +36V Output: +12V@9*0.5A |
| Power-off Protection | With patented UPS power supply technology for 3~5S recording upon sudden power cut to keep video data safety |
| Power Consumption | <10W in normal operation; <0.5W in standby mode |
| Working Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ |
| Working Humidity | 10% to 95% |

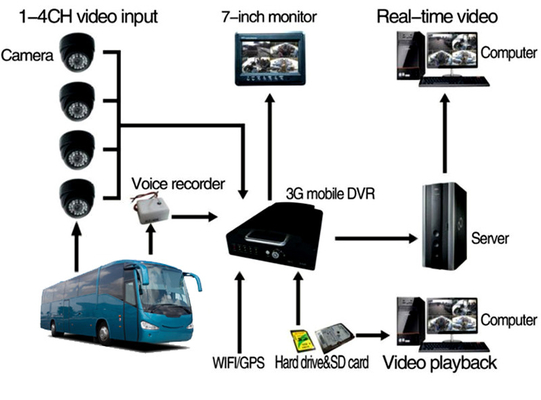

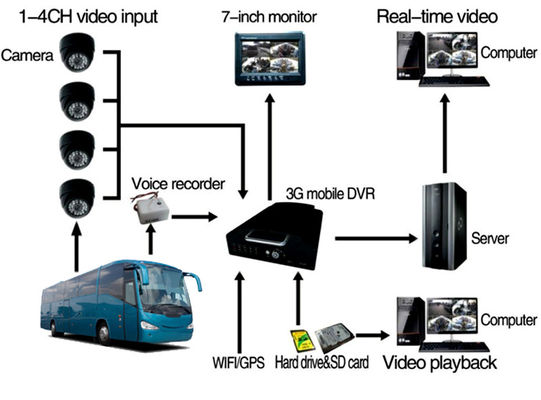

Platform
Installation Examples
Cameras for Option
Want to Know more details about this product
