Hard Driver 8 Channel Mobile DVR RS485 / RS232 Alarm Port Customize

Hard Driver 8 Channel Mobile DVR RS485 / RS232 Alarm Port Customize

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW610GSW

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Power Supply: 8V-36V Storage Capacity: 1TB HDD Or SSD
Basic Function: 8 Cameras Monitoring With 3G Real Time,GPS Tracking,Wi-Fi Software Support: Client,Server,Playback Software
Applicable: Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets Quality: The World Class Anti-vibration Technology

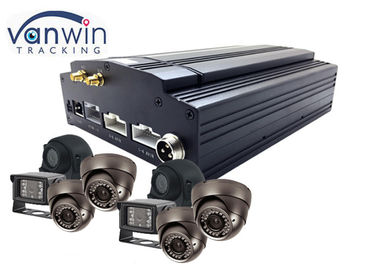

H.264 Format: YES Product Name: 3G Mobile Car DVR 8 Channel Full Kit With Cameras For Bus Camera Surveillance System
Warranty: 16 Months
High Light:

car camera dvr

,

digital video recorder

Product Description

Hard Driver 8 Channel Mobile DVR RS485 / RS232 Alarm Port Customize





Main Features



3) Supports max 2TB HDD and SD card;

4) Motion Detect/ G-Sensor/ Alarm Record/ High Speed/ Low Speed Alarm;

5) 6 I/O Alarm Input & 1 Alarm Output;

6) UPS Technology (3~5s Power-off delay after power cut);

7) Max. 4 Hours Power-off Delay after ACC-off;

8) GPS Tracking

9) 3G/ 4G Remote View on PC or Smartphone;

10) Supports talkback function (2 Ways Audio);

11) Geo-Fence/ Remote Engine Stopping/ Remote Oil Cut, etc;

12) Welcome OEM ODM for VPN MDVR or 3G DVR with RFID , We Have More Examples for Customization.

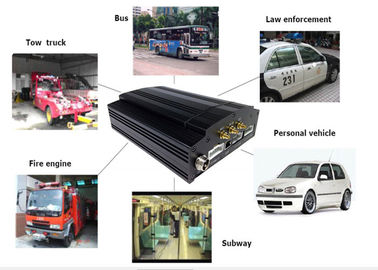

The MDVR allows you to track and view your vehicles in REAL TIME via live video camera streaming from up to 4 cameras on your truck, car ,bus,taxis, police cars, excavators, petorl trucks, law enforcement vehicles, and other various types of vehicles with people counting,RFID card reader,fuel consumption sensor,LED display functions etc.

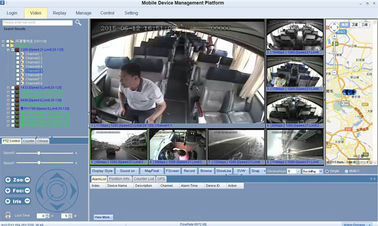

  Using the Internet, GPS, and Mobile CCTV technology, you can now view your vehicles, drivers and cargo from your office, wherever they are in the country. Our cloud-based Control Room software also allows you track your fleet, identifying speed, location, fuel-level and many more.

   Vehicle Tracking that lets you SEE the FULL picture.







Specification



Item

Description

OS

Linux

Graphics Operation Interface

System parameters can be set through external display and remote controller

Security Management

2-level management for user password, administrator password, supporting encrypted transmission

Video and Preview

Video Input, Output

8-channel video input, 1channel video output; 1.0Vp-p, 75Ω

OSD

Character superposition function, information superposition of time and date, device ID and GPS, etc.

Video Compression Format

Compression coding. Applying Hisilicon hi-performance processor.

Dual-Stream

Supported

Preview Function

Preview of 1-channle, 8-image stitching, supporting full screen triggered by event and switching of stitched images

Frame Rate

PAL: 200 frames/s, up to 25 frames/s per channel; NTSC: 240 frames/s, up to 30 frames/s per channel

Resolution

CIF, HD1 and D1 for selection, supporting 2 channels of D1  6 channels of CIF at the most

Quality

Grade 1 to grade 5 for selection (descending)

Bit Rate

CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection

HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection

D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection

Audio

Audio Input, Output

4-channel input, 1-channel output

Compression Format

G.726 coding

Recording

Storage Medium

Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology;

File Format/ System

ASF/FAT32

Video Strategies

Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording

Video Search

Searching by time, type, storage device and other conditions

Video Playback

Supporting playback on local device, supporting synchronous playback of up to 8 channels and analysis on vehicle information in the files

Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time

Alarm

Alarm Input/ Output

6-channel on/off signal alarm input, 1-channel on/off signal alarm output

Alarm Recording

Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min

Storage Space Alarm

Supporting settings for alarm of storage space

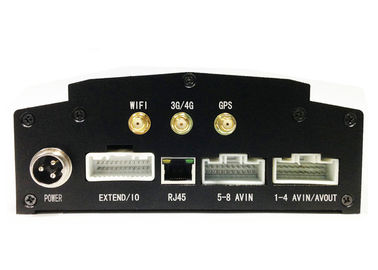

Communication Ports

RS232/485, RJ45 10M/100M self-adaptable network interface

Wireless Transmission (Optional)

Embedded Wi-Fi module;

GPS (Optional)

Supporting

Remote Data Transmission Channel Selection

SupportingWi-Fi data channel transmission, supporting Wi-Fi priority transmission strategy; supporting remote downloads of back-end recording strategies;

PTZ Control

Supporting PTZ control realized by local;

Parameter Configuration

Supporting parameter configuration functions for mobile DVR coding channel;

G-Sensor

Embedded

System Upgrading

Supporting SD card, hard drive upgrading and remote upgrading

Power Supply and Power Consumption

Power Supply

1. ACC on/off

2. Hard drive lock on/off

3. Delayed shutdown

4. Timed on/off

Input Voltage

DC:+8V ~ +36V

Output Voltage

+12V@8*0.5A; +5V@0.5A

Power-off Protection

With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure

Power Consumption

<10W in normal operation; <0.36W in standby mode

Operating Environment

Temperature

Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃

Humidity

10% to 95%

Dimensions

160(W) x62(H) x200(D) mm.

Weight

Net: 2200g, Gross: 3500g
