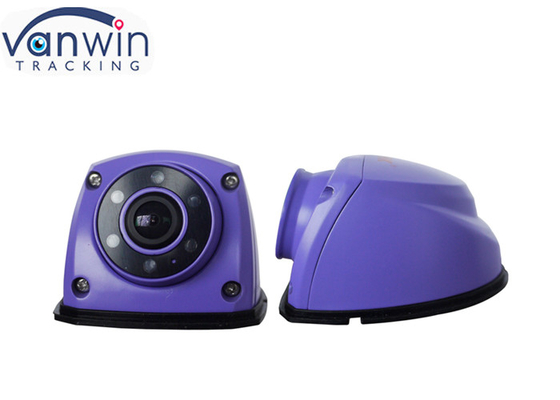

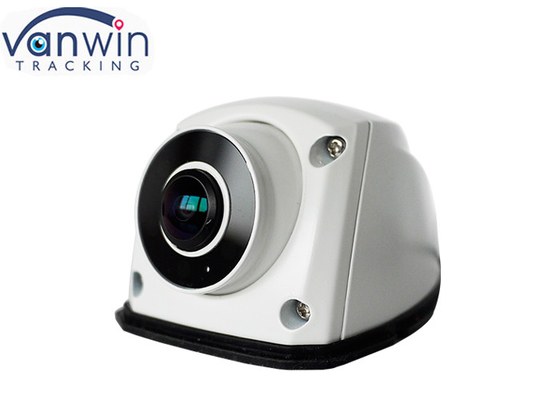

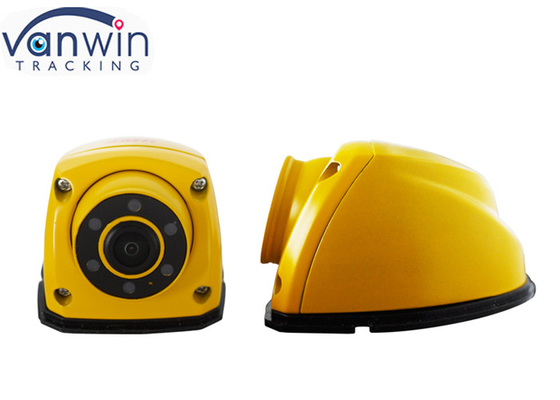

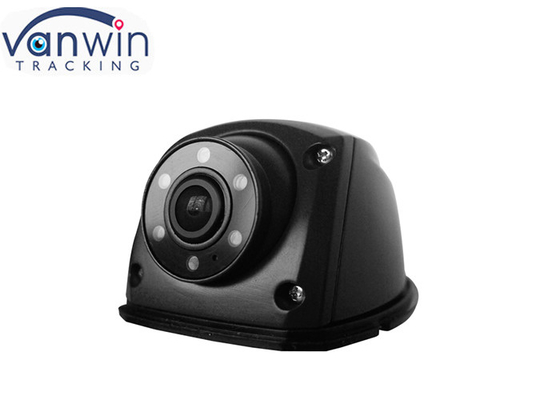

1080P AHD Bus Truck Sideview Camera IP69K Waterproof 170 Degree Wide Viewing Angle
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW362B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000 pcs per month; AHD 720P Mini Car Dome Cameras with Mirror/Non-mirror ON or OFF, 130 Degree |
|
Detail Information |
|||
| Type: | Bus Truck Sideview Cameras | Image Sensor: | CMOS/SONY |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| Viewing Angle: | 120/150 Degrees Or 170 Degrees | Warranty: | 12 Months |
| LED: | 7 IR Lights | Sensor: | CCD / CMOS |
| Lens: | 2.1mm | IR Distance: | 10M |
| High Light: | Bus Truck Sideview Camera,1080P AHD Sideview Camera,170 Degree 1080P AHD Camera |
||
Product Description
1080P AHD 170 degree wide viewing angle bus truck sideview camera IP69K waterproof
Main Features
- Image sensor: CMOS 1/3
- Definition: 960H
- Effective pixels: 976(H)*592(V)
- System: PAL or NTSC or PAL&NTSC adjustable
- Viewing angle: horizontal 130 degree
- Image mode: mirror or non-mirror or mirror&non-mirror adjustable
- Parking guide line: without or with or adjustable
- Appearance: aluminium alloy material, out-hung design
- Waterproof level: IP69K
- Power supply: DC12V
- Application: suitable for car, bus, truck
Specifications
| SPECS | Model No.:VW-C392 |
| Image sensor | PixelPlus PO3100K CMOS 1/3 |
| DSP chip | AVS7110 image correction chip |
| Resolution | 480TVL |
| Illuminance | 0.1Lux,infrared night vision |
| Viewing angle | 2.1 mm waterproof lens, 170 degree |
| Image | Mirror as default (Could set mirror&non-mirror switchable) |
| System | PAL system as default (Could set PAL&NTSC switchable) |
| Reference line | Off as default (Could be opened by software) |
| Appearance and Application | Aluminium alloy material, out-hanging design, suitable for bus, truck and small vehicles |
| Waterproof level | IP67 |
| Shockproof level | 4G |
| Connectors | 4PIN or RCA |
| Power supply | DC12-24V |
| Power consumption | About 1.8W |
| Maximum current | 150MA |
| Key control | Support single key adjustment |
| Output | 1 channel CVBS output |
| Working temperature | -20℃ to 70℃ |
| Storage temperature | -30℃ to 80℃ |
| Size | 67*55*43.5mm |
| Weight | About 170G |
| Accessories | hexagon screws, user manual |
Outline Drawing

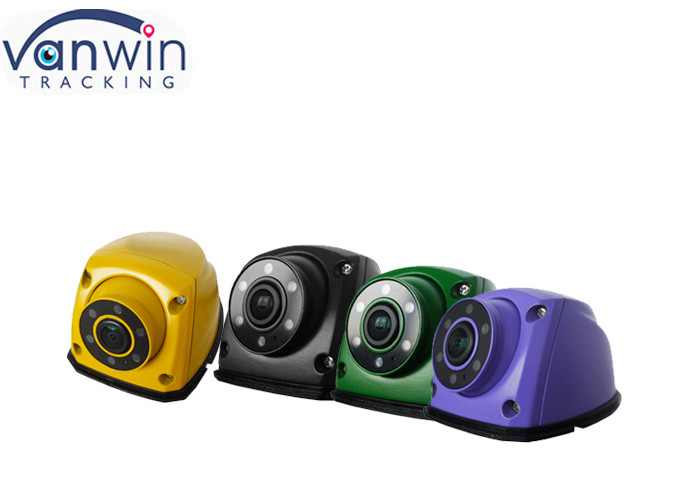

More color options
