Hd 720p 1080p Car Dome Light Camera 700tvl Ir Night Vision Ip69 Waterproof Metal Housing
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C408 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , Mini Outdoor Waterproof AHD Camera Video Surveillance Bus Mount with IR Lights |
|
Detail Information |
|||
| Product Name: | Vehicle Mini Dome Camera HD 720P 1080P | Image Sensor: | Analog / AHD |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| Night Vision: | Yes | Lens Angle: | 140 Degree Wide Angle |
| Application: | Bus Train Subway Ambulance | Working In Water: | IP66 |
| Installation: | Easy Installation On Ceiling Or Wall, Surface Or Flush Mount. | Material: | Metal |
| Color: | Black By Default, White And Other Colors Are Optional | ||
| Highlight: | 720p car dome light camera,ip69 car dome light camera,1080p car dome camera |
||
Product Description
Vehicle Mini Dome camera HD 720P 1080P 700TVL IR night vision IP69 waterproof Metal housing use for Bus Train Subway
Main Features:
●Metal-cased IP66 weatherproof micro dome with fixed lens.
● Low power consumption.
● Easy installation on ceiling or wall, surface or flush mount.
● 10 Infrared LEDs.

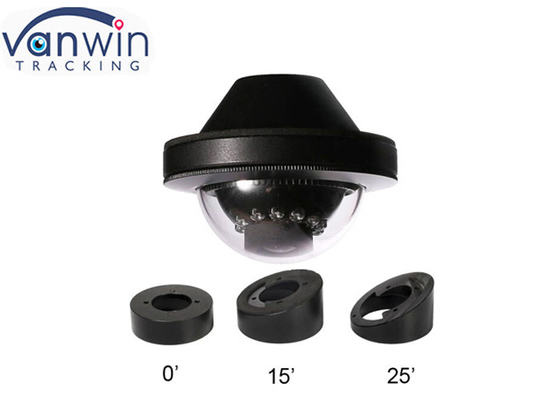

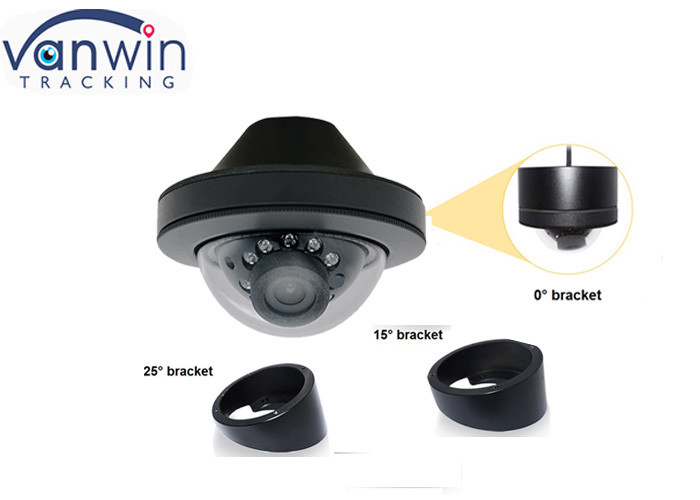

●With 0° /15° /25° bracket for different installation environment
Specifications:
| Image Sensor | 1/2.9” GC2053 |
| TV System | PAL/NTSC (optional) |
| Picture Elements | 1920 (H) x 1080 (V) |
| Sensitivity | 0 Lux (IR LED On) |
| Scanning System | Progressive scan RGB CMOS |
| Synchronization | Internal |
| Auto Gain Control (AGC) | Auto |
| Electronic Shutter | Auto |
| BLC | Auto |
| Infrared Spectrum | 940nm |
| Infrared LED | 10 LEDs |
| Video Output | 1 Vp-p, 75Ω,AHD |

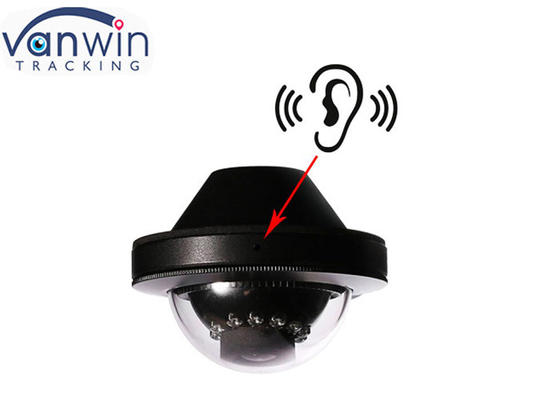

| Audio | Available |
| Mirror | Optional |
| ICR | N/A |
| Noise Reduction | 3D |
| Lens | f2.8mm Megapixel |
| Power Supply | 12V DC±10% |
| Power Consumption | 160mA (Max) |
| Dimensions (ø X H) | 77 x 60.3 mm |
| Net Weight | 200 g |
| Weatherproof/Water Proof | IP66 |
| Operating Temperature | -30° C ~ +70 ° C |

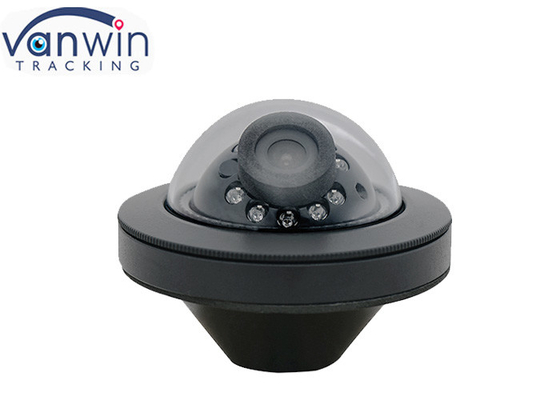

Product Pictures

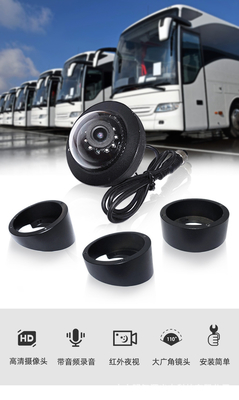

Installation and application
Other Cameras for Option
Installation Pictures
Want to Know more details about this product
