Ir Night Vision 720p 1080p Ahd Camera 360 View Bus Truck Side
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW206 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Image Sensor: | AHD 720P/1080P |
|---|---|---|---|
| Product Type: | IR Night Vision 720P 1080P 360 View Bus Truck Side AHD Camera | Night Vision: | Support |
| TV System: | PAL Or NTSC | ||
| High Light: | ir 720p ahd camera,night vision 1080p ahd camera,bus truck side 1080p ahd camera |
||
Product Description
IR Night Vision 720P 1080P 360 View Bus Truck Side AHD Camera
Main Feature:
| Product type | Truck AHD Camera |
| Chip | AHD 720P/1080P |
| Effective pixels | 720P/1080P |
| TV system | 600TVL |
| Shutter speed | 1/60-20us |
| White balance | Auto |
| Video output | 1.0Vp-p, 75ohm |
| SNR | >48dB |
| Size | 73*40*25MM |
| Waterproof | IP67 |
| Power supply | DC12V |
| View Angle | 120 Degree |
| Operating Temperature | -20°C~ 70°C, RH95% Max |
| Operating humidity | -30°C ~ 85°C, RH95% Max |
| Horizontal synchronization frequency | 15625KHZ |

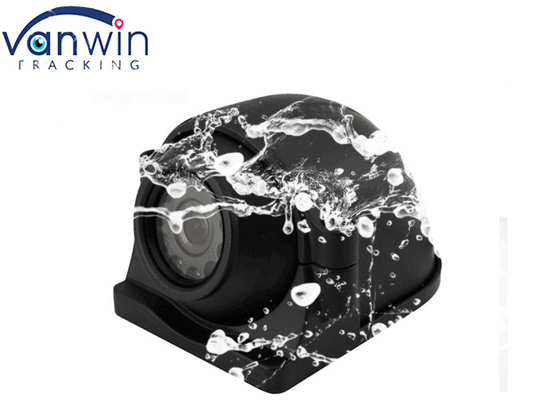

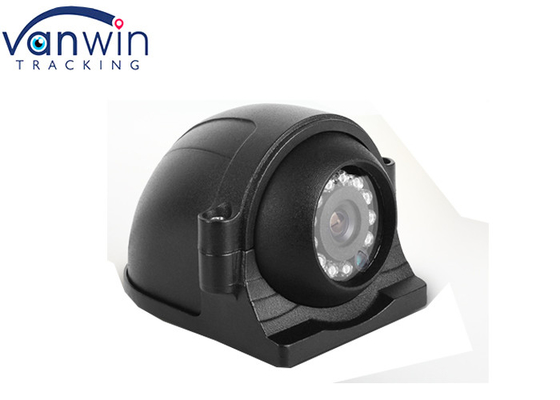

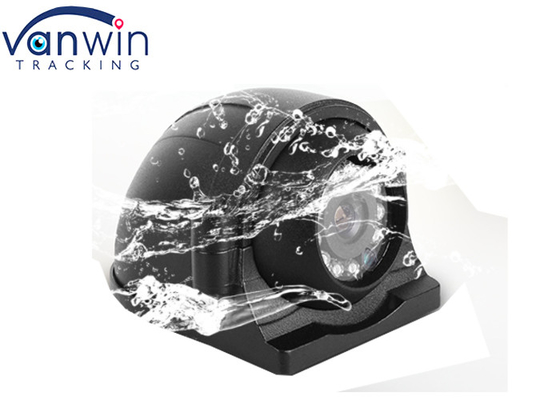

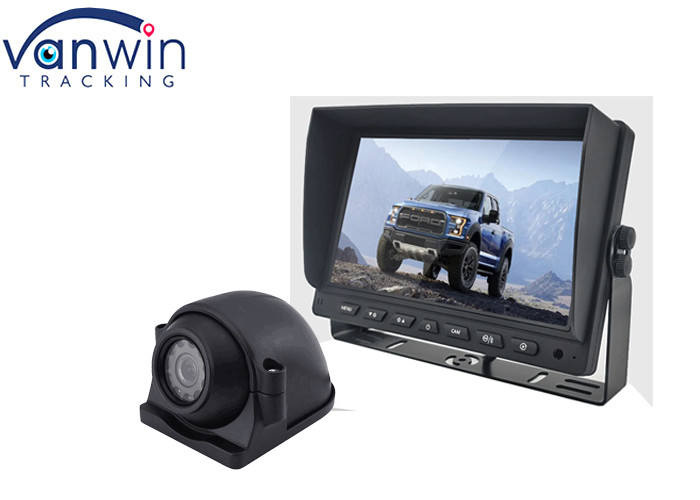

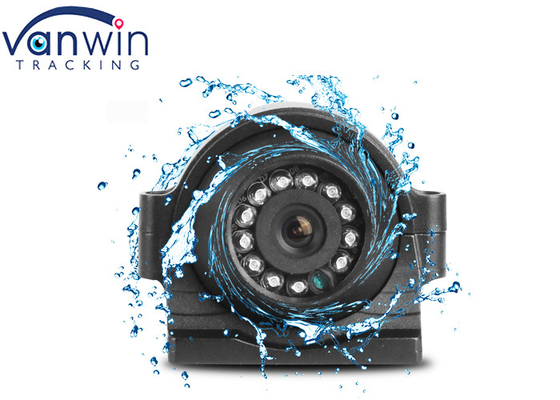

Product Photos
How to connect the Car Camera?
Notes:
(1)Make sure the power is off before installation.
(2)Check and confirm the availability of right power supply. Wrong voltage will inflict
damage to component(s) in camera.
(3)Do not use camera in overheated and humid environment. Keep a good
ventilation so as to reduce fire and outrage.
(4)Only the professional technicians are entitled for installation and repair. By no
means, this camera shall not be repaired or dismantled on customer's own.
Manufacturer holds no responsibility in case of unauthorized repair, and use of
uncertified spare parts.
(5 )If abnormal conditions are found,please turn off the power supply and contact us.
