Vehicle Security Analog 5v Fuel Tank Level Sensor Capacitive Oil Water Liquid
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VWN09 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Measuring Length Range: | 0~1500mm | Material: | Probe :Aluminum Wire: PVC (PA Is Optional) |
|---|---|---|---|
| Measuring Liquid Type: | Gasoline, Diesel , Fuel, Kerosen | Output Signal: | 0~5V,0.5~4.5V RS232,RS485(OEM) |
| Power Supply: | 10-32VDC | Accuracy: | ≤1mm |
| Application: | Working With Mdvr Or Gps, For Monitoring Vehicle's Tank Fuel Level | ||
| High Light: | 5v fuel tank level sensor,capacitive fuel tank level sensor |
||
Product Description
Vehicle security analog 5v capacitive oil water liquid fuel tank level sensor
INTRODUCTION
Capacitance fuel level sensor is used to continuously detect fuel level by measuring the capacitance variations as the liquid level changes, which can be easily shortened to fit the different tank depths. It can carry out real-time monitoring with GPS tracking system, can directly replace the fuel level sensor and connect the instruments in original car; With the characteristics of strong stability and long service life.
FEATURES
* The aluminum alloy tubing can be cut off according to the height of the fuel tank, and the cut will not affect the use.
* Filtered signal processing technology, the signal output is accurate and stable,and it is safe to use in bumpy road conditions
* Working temperature -40~85°C wide temperature compensation, not affected by temperature changes
Parameter
Suitable for Vehicle, truck, coach, agrimotor, GPS fleet management. GPS tracking system, generator set, construction machinery.
|
Length range |
0~1500mm |
| Material | Probe :Aluminum Wire: PVC (PA is optional) |
| Medium | Gasoline, Diesel , fuel, Kerosen |
| Output signal | 0~5V,0.5~4.5V RS232,RS485(OEM) |
| Power supply | 10-32VDC |
| Resolution | ≤1mm |
| Working temp | -40℃~+85℃ |
| Accuracy | 0.5%F.S, 1%F.S |
| Process connect port | 5 holes SAE flanges |

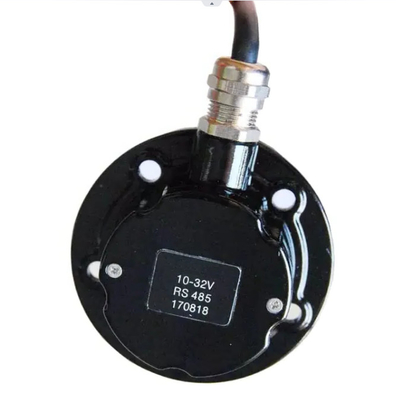

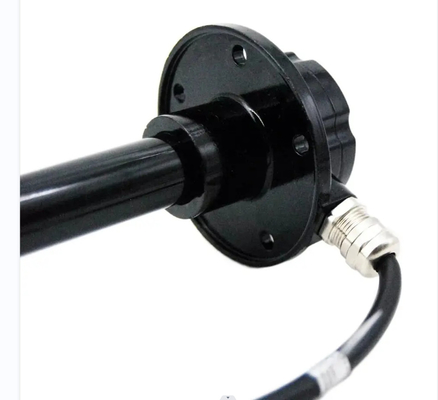

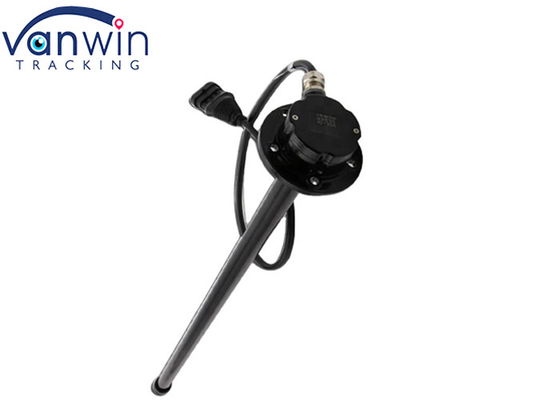

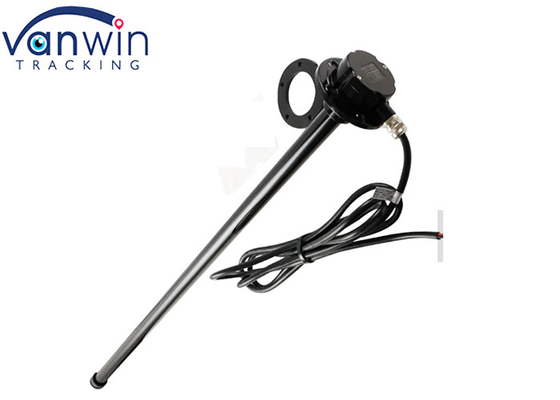

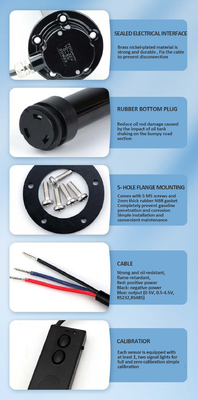

Product pictures

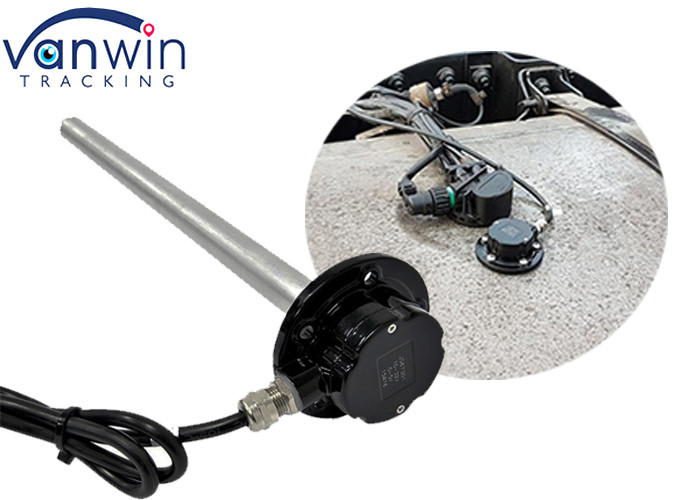

APPLICATIONS
