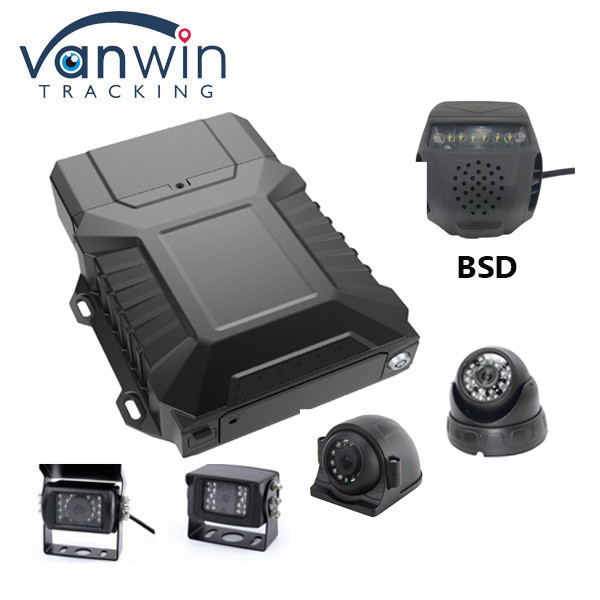

4CH 1080P Mobile DVR SD Card Hard Disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR For Truck Bus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW628HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; 4CH 1080P Mobile DVR SD card hard disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR for truck bus |
|
Detail Information |
|||
| Power Supply: | 8V-36V DC | Mouse Operating: | Support |
|---|---|---|---|
| Storage Capacity: | HDD/SSD, Can Support 2TB | Software Support: | Client, Server, Playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | System Upgrading: | Supporting SD Card, Hard Drive Upgrading And Remote Upgrading |
| Basic Function: | 4 1080P Cameras Monitoring With 4G Real Time, GPS Tracking, Wi-Fi | Cameras: | 720P/960P/1080P/IP |
| Ai Function: | Built-in DMS And Face Algorithm | Alarm: | 6CH Alarm Inputs, 2CH Alarm Output |
| Function: | IR Infrared LED Night Vision | Storage: | HDD/SSD+SD Card |
| ADAS Camera: | Support | BSD: | Optional |
| DMS Camera: | Support | Gps: | Built-in |
| Warranty: | 18 Months | ||
| High Light: | 4CH 1080P Mobile DVR,ADAS Fatigue Detect MDVR |
||
Product Description
4CH 1080P Mobile DVR SD card hard disk ADAS DSM BSD Face Recognition Fatigue Detect MDVR for truck bus
The MDVR supports 4 channel FULL 1080P video recording, 4G/5G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&RS485 serial port, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 14 days recording.
The complete system includes:
Main Specification
|
Item
|
parameters
|
|
|
Audio and Video Inputs
|
video input
|
AHD:4ch 1080/25fps
IPC:Scalable 1-4ch |
|
audio input
|
4ch audio input
|
|
|
Audio and Video outputs
|
video output
|
Default 1-way CVBS output (VGA output optional)
|
|
speech output
|
1ch audio output
|
|
|
Audio and video parameter coding
|
video coding
|
H.264 Main Profile/H.265
|
|
Resolution
|
1080P/720P/D1 optional
|
|
|
audio coding
|
Default G.726,G.711A optional
|
|
|
storage space
|
HDD
|
1 2.5-inch optional: SSD/HDD hard disk
|
|
SD
|
Support 1 SD card
|
|
|
wireless network
|
4G
|
Supports 1 SIM card, optional: all major communication modules in the world
|
|
WIFI
|
2.4/5.8G optional
|
|
|
locate mode
|
BD/GPS
|
Support for mixed positioning, speed detection, time synchronization
|
|
interface
|
USB
|
USB2.0 interface, support export data, external engineering treasure
|
|
serial port
|
Support 1 RS232, 1 RS485, can be connected with external sensor
|
|
|
I/O
|
4 level inputs, 2 analog inputs, 2 alarm outputs
|
|
|
network interface
|
Support external IPC, support hybrid NVR function
|
|
|
· Intercom
|
1 special intercom handheld mark interface
|
|
|
Physical Specifications
|
size
|
176.9mm(L)*186.8mm(W)*54mm(H)
|
|
weight
|
NW:1.4kg
GW:2kg(M51H-DGNE1-L as a standard) |
|
|
work environment
|
operating temperature
|
-20〜+70℃
|
|
operating humidity
|
8%〜90%(No condensation)
|
|
|
Other
|
operator schema
|
remote control,APP,WEB
|
|
· Gravity sensor
|
Built-in G-Sensor
|
|
|
Configurable AI algorithms
|
Face recognition ,People Counting,ADAS+DMS
|
|
Product Details
H----DC 8-36V - Connect red to battery positive, black to battery negative, and yellow to ACC line
of the electrical panel
I----ANV IN1 2 3 4 - Inputs for video/audio cameras. Connect your cameras here with the included cable
which provides a DC connector to power the camera at 12VDC, a video BNC and an RCA for
any sound. The MDVRs support analog CVBS, AHD720P and AHD1080P cameras.
A----VOUT -- Audio video output for CVBS monitors. Connect your monitor here with one of the adapter cables
which provides a DC connector to power the monitor at 12VDC, a video BNC and an RCA for
any sound.
C----LAN - Network port for connecting to a LAN network with the included RJ45 adapter cable
E----GPS - Connector for GPS antenna
F----3/4G - Connector for antenna for data connection on 3/4G mobile network
G----WIFI - Connector for WiFi antenna
D----HMIC - Not used
B----I/O - Connect the supplied cable for connecting inputs and outputs
Cameras for Option
HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
