New Mold 1080P AHD 145 Degree Wide View Waterproof Rear View Camera For Truck Bus
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-348 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Type: | Rear View Camera For Truck Bus | Chip Mode: | AHD Camera/CMOS /SONY CCD |
|---|---|---|---|
| TV System: | PAL Or NTSC | Test Time: | Over 48 Hours |
| Material: | Metal Housing | View Angel: | 145 Degree |
| Waterproof: | IP68 | Power Supply: | 12V / 24V |
| Resolution: | 600TVL/720P/960P/1080P Optional | Application: | Outdoor Installation For Bus Truck Van |
| Night Vision: | Support, With IR Lights | Connector: | 4PIN/6PIN/BNC/RAC |
| High Light: | Waterproof Rear View Camera,145Degree Wide View Camera |
||
Product Description

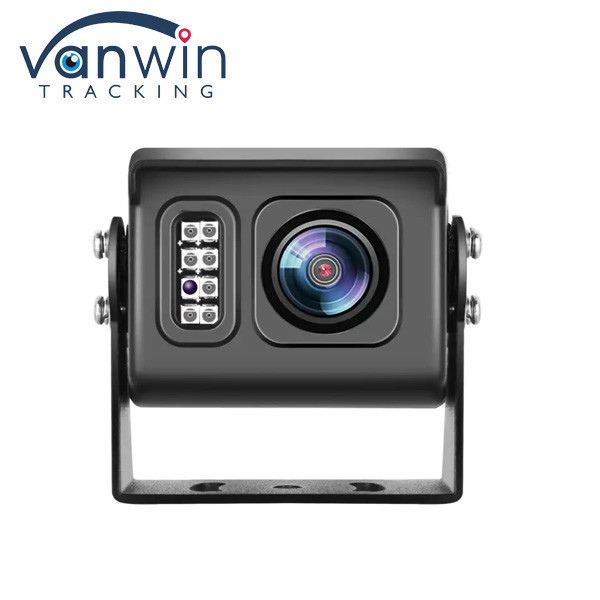

New Mold 1080P AHD 145 degree Wide View Waterproof Rear View Camera for Truck Bus
Main Features:
1. Wide viewing angle: This backup camera is designed with guide line(option) that superbly kills all blind angles when vehicle is in reverse gear. Suitable for RV/Motorhome/Bus/Lorry/Trucks/Vans, an indispensable part of car backup parking system.
2. High Definition Image: Sharp color 1/3" CCD sensor; 720P/960P/1080P; Bright color contrast

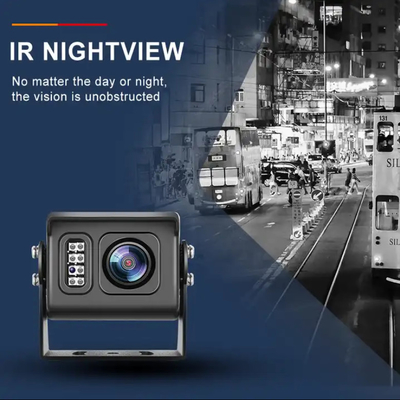

3. Infrared night vision:Automatically sense the dark night scene andswitch the infrared mode. With IR cut, good performance in day and night.

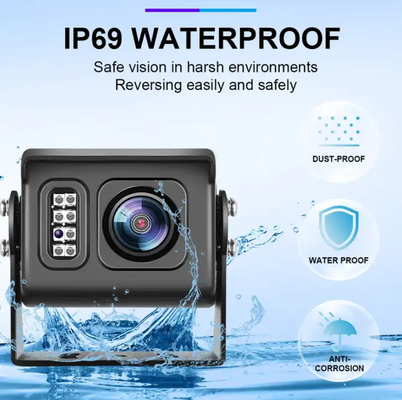

4. IP69 Waterproof: High strength weatherproof lens to protect camera when raining or snowing.
5. Pure copper shielded aviation wire: double shielded AV cable is equipped, providing stronger transmission signal without delay.
Specification: (1080P for example)
|
Image Resolution
|
1080p
|
|
Effective Pixels
|
2.0MP, 1920*1080
|
|
TV System
|
PAL/NTSC
|
|
Electronic Shutter
|
1/25s~1/50,000s , 1/30s~1/60,000s
|
|
S/N Ratio
|
≥50dB
|
|
Scanning System
|
Progressive Scan
|
|
Focus Length
|
Board Lens 3.6mm/F2.0
|
|
Focus Control
|
Fixed
|
|
Lens Type
|
Fixed
|
|
Pixels
|
2M Pixels
|
|
Infrared Distance
|
5~10M
|
|
IR Status
|
Under 10 Lux by CDS
|
|
IR Power On
|
CDS Auto Control
|
|
Day/Night
|
Auto(ICR)/Color/B&W
|
|
OSD Menu Language
|
Yes
|
|
White Balance
|
Auto/Manual
|
|
Gain Control
|
Auto
|
|
Noise Reduction
|
3D NR
|
|
Picture Adjustment
|
Yes
|
|
WDR
|
DWDR
|
|
OSD Support
|
optional
|
|
Housing
|
Metal,waterproof IP69
|
|
Bracket
|
Yes
|
|
Dual Voltage
|
NO
|
|
IR Cut Filter
|
YES
|
|
Heater
|
NO
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
Power Source
|
DC12V±10%, 500mA
|

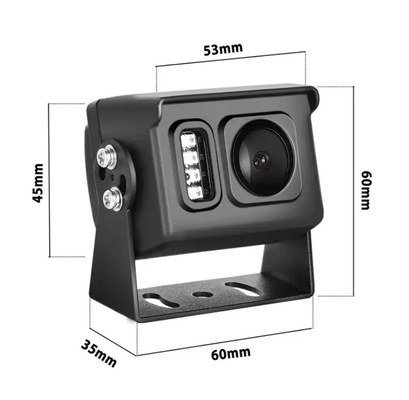

Product Size:
