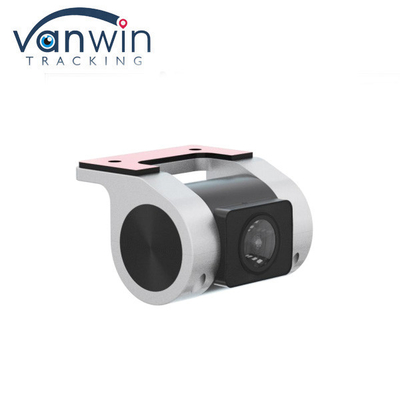

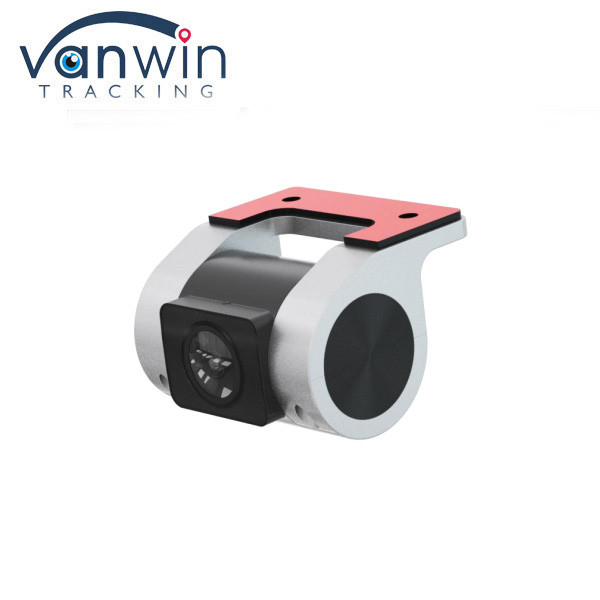

High Quality ADAS 1080p Wide Angle Front Car Camera For Trucks
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-029 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Type: | Front Camera/ADAS Camera |
|---|---|---|---|
| Connector: | 4 PIN Connector Or RCA Connector | Effective Pixels: | 720P/1.0MP 1080P/2.0MP |
| Feature: | Windshield, Dustproof | TV System: | PAL Or NTSC |
| 3M Glue: | Support | Technology: | AHD |
| View Angle: | 90-120 Degree | Sensor: | 1/2.9" CMOS |
| Highlight: | Wide Angle Front Car Camera,1080p Front Car Camera,ADAS Front Car Camera |
||
Product Description
High Quality ADAS 1080p Wide Angle Front Car Camera For Trucks
ADAS Camera Main Features
• Suitable for commercial and passenger vehicles;
• Using 2 million progressive scan CMOS, capturing moving images without any sawtooth
• Low illumination, 0.001Lux @(F1.2,AGC ON)
• Support automatic electronic shutter function to adapt to different monitoring environments
• Support automatic electronic gain function, brightness adaptive
• Installed on windshield
ADAS Camera Technical Specification
| Product Model | VW-029 | ||||
| Sensor | 1/2.9“ CMOS | ||||
| TV System | PAL/NTSC | ||||
| Effective pixel | 1920(H)×1080(V) / 1280(H)x720(V) | ||||
| Minimum illumination | 0.1Lux@(F1.2,AGC ON),0LUX with IR | ||||
| Frames | 1080P/720P@25fps / 1080P/720P@30fps | ||||
| NR | 3DNR/2DNR | ||||
| Day/Night mode | Auto | ||||
| S/N ratio | 38dB | ||||
| Lens | 6mm | ||||
| Field of view | 60.8°(D) 53°(H) 30°(V) | ||||
| Aperture | F2.0 | ||||
| Lens structure | 4G+1IR | ||||
| Working Voltage | 12V(±20%) | ||||
| Working Current | 45mA | ||||
| Working Temperature | ,-30℃~70℃ | ||||
| Product Size | L:59.7mm*W:58.7mm*H:43.1mm | ||||
| Product Weight | about 138g | ||||
Connetor Available for Option
- 4Pin Aviation connector
- DC+RCA connector
- CCTV security BNC+DC connector
Cameras for optional
