ADAS DMS Camera AHD 1080P Driver Fatigue Smoke Warning Detection Camera For Truck Vehicle School Bus
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-89 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Image Sensor: | CMOS AHD 1080P, 1/3" 1.3 Mega Pixels CMOS | Feature: | Dual Lens, One Len Face To Front, One Len Face To Indoor Of The Vehicle |
|---|---|---|---|
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Connector: | 4 PIN Connector Or RCA Connector |
| Product Type: | ADAS DMS Camera | Resolution: | 1080P(2.0MP)/720P(1.0MP) |
| TV System: | PAL Or NTSC | Warranty: | 12 Months |
| Highlight: | AHD 1080P ADAS DMS Camera,Driver Fatigue Smoke Warning Detection Camera |
||
Product Description
ADAS DMS Camera AHD 1080P Driver Fatigue Smoke Warning Detection Camera for Truck Vehicle School bus
Main Feature:
• DSM+ADAS are integrated to facilitate installation and wiring
• DSM can adjust the angle up and down
• DSM has two 940nm always-on infrared lights, with an irradiation distance of 3-4 meters
• 3D digital noise reduction technology adds noise reduction to the original signal management, the night image is cleaner and brighter
• Car-grade digital video processor, low power consumption, high stability Work performance
• Installed on windshield
Specifications:
| Product Model | VW-89 | ||||
| Sensor | 1/3" CMOS | ||||
| TV System | PAL/NTSC | ||||
| Effective pixel | 1920(H)×1080(V) / 1280(H)x720(V) | ||||
| Minimum illumination | 0.1Lux@(F1.2,AGC ON),0LUX with IR | ||||
| Frames | 1080P/720P@25fps / 1080P/720P@30fps | ||||
| NR | 3DNR/2DNR | ||||
| Day/Night mode | Auto | ||||
| S/N ratio | 42dB | ||||
| Lens | 6mm(DSM) | 6mm (ADAS) | |||
| Field of view | 60°(D) 50°(H) 29°(V) | 60°(D) 50°(H) 29°(V) | |||
| Aperture | F2.0 | F1.6 | |||
| Lens structure | 4G+940nm | 4G+650nm | |||
| Working Voltage | 12V~24V | ||||
| Working Current | 210mA | ||||
| Working Temperature | ,-30℃~70℃ | ||||
| Product Size | L:54.74mm*W:45.7mm*H:127.32mm | ||||
| Product Weight | about 145g | ||||

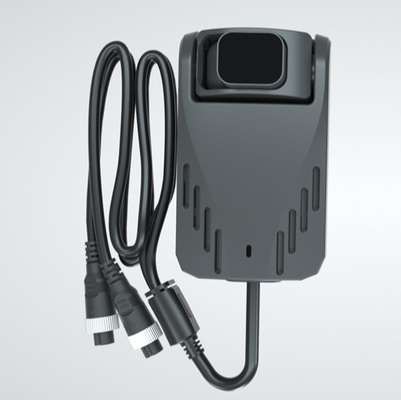

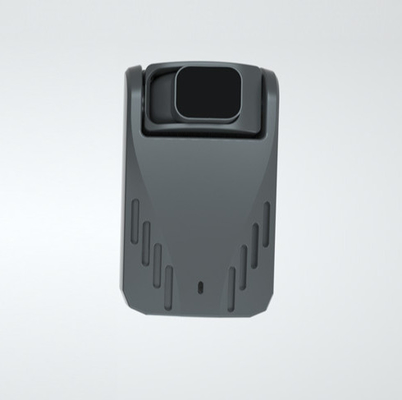

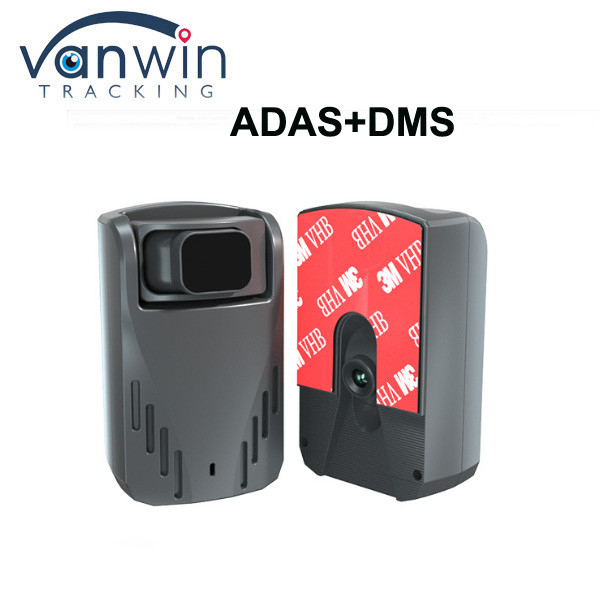

Product Photos
