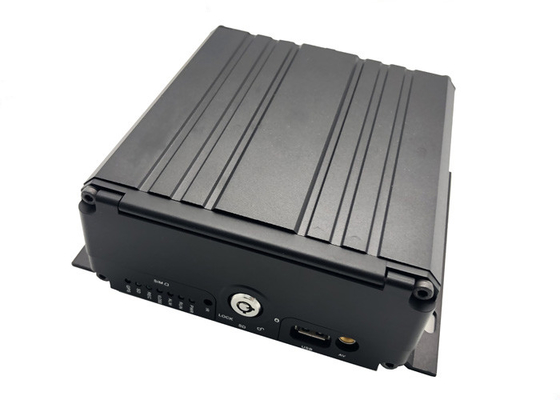

Mobile DVR System 4 Channel 1080P H.265 HDD AHD Vehicle Car DVR Video Recorder for for Truck Bus Camper Van
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW704HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; Mobile DVR System 4 Channel 1080P H.265 HDD AHD Vehicle Car DVR Video Recorder for for Truck Bus Camper Van |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Mouse Operating: | Support |
|---|---|---|---|
| Storage Capacity: | HDD/SSD, Can Support 2TB | Software Support: | Client, Server, Playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | System Upgrading: | Supporting SD Card, Hard Drive Upgrading And Remote Upgrading |
| Basic Function: | 4 1080P Cameras Monitoring With 3G Real Time, GPS Tracking, Wi-Fi | Cameras: | 1~4 Analog Or AHD 1080P Cameras |
| Dimensions: | 150*137*60MM | Alarm Inputs: | 4CH Level Alarm Inputs |
| Highlight: | 1080P Mobile DVR System,Truck Bus DVR Video Recorder,4 Channel Mobile DVR System |
||
Product Description
Mobile DVR System 4 Channel 1080P H.265 HDD AHD Vehicle Car DVR Video Recorder for for Truck Bus Camper Van
The MDVR supports 4 channel FULL 1080P video recording, 3G/4G wireless live video transmission through PC&phone remotely, with GPS tracking on google map, wifi auto downloading, with RJ45, RS232&RS485 serial port, I/O port interface for multiple outer device integration. Its storage (max 2TB) lasts more than 14 days recording.

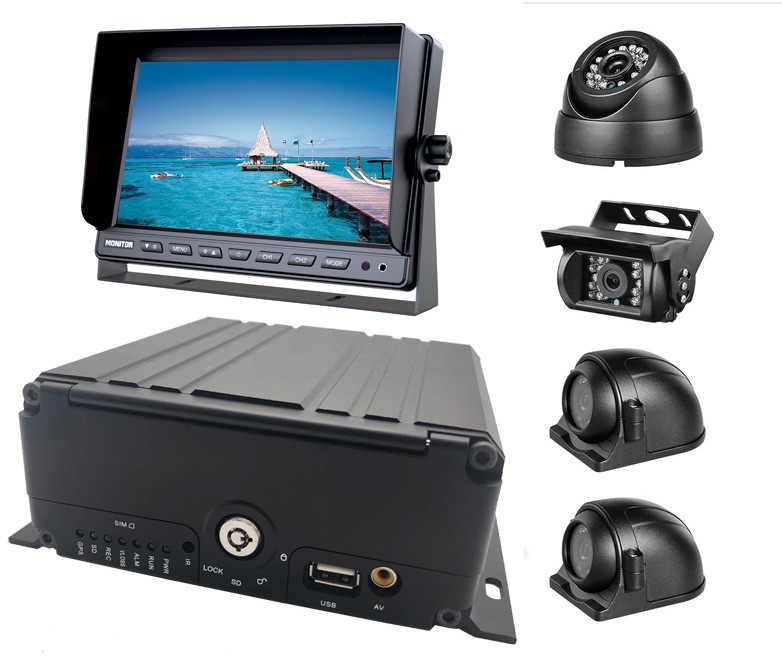

The complete system includes:
1. One 4CH MDVR with 4G/3G GPS WIFI G-sensor for Option
2. DSA+ADAS built-in
3. 4 1080p / 960p cameras with extension cables
4. One monitor for the driver
5. HDD 500GB/1TB/2TB
6. Micphone, Talkback device, Panic button
- Easy Install Camera System – come with 4CH Mobile DVR,4pcs 1080P cameras,7 inch HD VGA monitor and all the accessories required for installation are already equipped, such as differenct length extension cables,tape,screws and so on
- DVR for Long Loop Recording – ① It have HDD +SD Card slot where you can insert a HDD/SSD up to 2TB and 256GB SD card (SD card not included) ② H.265 Video Format – H.265 coding offers longer recording time saving up to 30-40% of storage space than H.264 systems
- Cameras for all-Round Monitoring – ① 4pcs 1080P AHD 2.0MP metal cameras,all 3.6MM lens ② side view and rear view camera are IR night vision and waterproof ③ the indoor dome camera without IR and not waterproof, built in Microphone for recording,so it is very suitable to install behind the windshield
- 7 inch HD VGA Monitor – ① Provide 8FT monitor power supply wires,more installation locations to choose ② Powered directly from the MDVR, more convenient to install ③ Screen resolution: 1024*600
- Well Protected by Super-capacitor – designed to record reliably even when effected by shocks and strong vibrations. MDVR Support 5s recording and mandatory event videos saving
- Professional 4CH MDVR system for effective fleet management - It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Main Specification
| Operating System | Linux | |
| Language | English, Chinese or Customized language. | |
| Video Compression | H.265 | |
| OSD | Support time, date, vehicle ID, image, etc. | |
| GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote |
| Video | Video Input | 4CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
| Support 1CH full screen and 4CH division. | ||
| Preview | Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing | |
| Recording Resolution | Support 1080P/720P/D1/HD1/CIF, support at maximum 4 Channels 720P | |
| Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | |
| Video Rate | PAL:100 fps,CCIR625line,50 scenes | |
| NTSC:120fps,CCIR525line,60 scenes | ||
| CIF:256Kbps - 1.5Mbps,8 grades image quality for optional | ||
| HD1:600Kbps - 2.5Mbps,8 grades image quality for optional | ||
| D1:800Kbps - 3Mbps,8 grades image quality for optional | ||
| 720P:800Kbps - 4Mbps,8 grades image quality for optional | ||
| 1080P:2Mbps -6Mbps,8 grades image quality for optional | ||
| Recording Mode | Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc | |
| Audio | Audio Input | 4CH Aviation connector inputs |
| Audio Output | 1CH Aviation connector output, Output level:1V - 2V | |
| Compression format | G.726, Speed for 8KB/s | |
| Alarm Input | 4CH level alarm inputs | |
| Alarm Output | 1CH level signal output | |
| Communication Interface | Optional for 1CH RS232 or 1CH RS485 | |
| Wireless Transmission | Support built-in 3G wireless transmission, WCDMA, CDMA2000, TDD-LTE, FDD-LTE. | |
| Location /G-sensor | Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route | |
| Video Storage | Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage |
| Upgrade Method | Support SD card local upgrade, remote upgrade automatically | |
| File Format | H.264 general video format | |
| File System | FAT32 exclusive file system | |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Expansion functions | TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
| Power and | Power Management | Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc |
| Consumption | Support time setting startup/shutdown, delayed power off function | |
| Power and Consumption | Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V/1.5A,+5V/1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
Main Features
- H.265 video compression, multi code stream.
- Support 4CH 1080P/720P HD real-time video inputs. Also, support 4CH analog cameras inputs or compound inputs for 2CH HD cameras and 2CH analog cameras.
- 1CH VGA output is optional.
- With exclusive pre-allocated type vehicle file system technology, it solved the file fragmentation problems which caused by overwrite, SD card data loss and SD card couldn’t be found, keep the data completed and stable.
- 8-36V wide voltage power supply, super low power consumption. With overload/ undervoltage/ shortcircuit/ reversing protection, support all vehicles.
- Support a 2T 2.5 -inch HDD and 1 256G SD card storage
- With watchdog abnormal restart protection function, it can better protect the machine and video.
- Delayed video recording functions when vehicle is shut down (time settings can be up to 24 hours).
- Various video recording modes to meet different demands, such as automatic recording, manual recording, alarm recording, etc.
- Support 4CH alarming inputs and 1CH independent alarm input.
- Optional for 1CH RS232 Serial port or 1CH RS485 extension.
- Support GPS/G-Sensor.
- Support remote operation and monitoring by 3G.
- Support ministry of communications agreement, support SMS remote configuration and equipment control.
- Support voice broadcast, intercom and text schedule dispatch.
- Support fuel sensor, temperature sensor, POS, LED advertising screen.
- Support shockproof aviation connector, easy to plug or pull out, with best quality and best price, stable and reliable.
- With full enclosed lock design, it can prevent the man-made sabotage effectively; Support mouse operating.
- Support all vehicles, including bus, taxi, truck, school bus, etc.

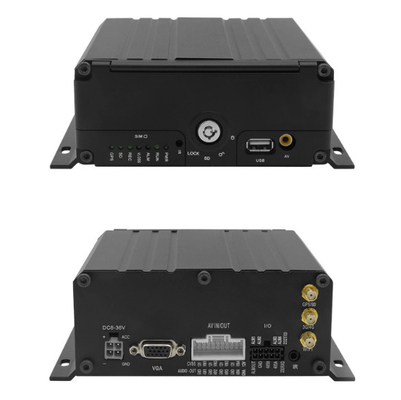

Back View for 4CH 1080P MDVR
Installing Cases from Customers
Cameras for Option
HD Video welcome to view it in the link: https://youtu.be/TfEbHKxrNPQ
