New Arrival 8CH 1080P HDD Mobile DVR with Hisilicon Chip, Support 4TB HDD storage, 4G GPS WIFI
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW708AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Power Supply: | 8V-36V | Mouse Operating: | Support |
|---|---|---|---|
| Storage Capacity: | HDD/SSD, Can Support 2TB | Software Support: | Client, Server, Playback Software |
| Applicable: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets | System Upgrading: | Supporting SD Card, Hard Drive Upgrading And Remote Upgrading |
| Basic Function: | 8 1080P Cameras Monitoring With 4G Real Time, GPS Tracking, Wi-Fi | Cameras: | 1~4 Analog Or AHD 1080P Cameras |
| Alarm Inputs: | 6CH Level Alarm Inputs | Playback: | Playback With Google Map Route |
| Highlight: | 1080P HDD Mobile DVR,4G GPS WIFI Mobile DVR,Hisilicon Chip Mobile DVR |
||
Product Description

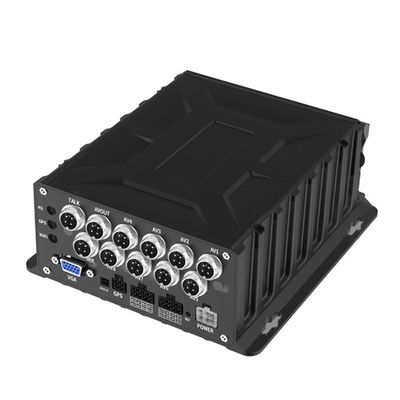

New Arrival 8CH 1080P HDD Mobile DVR with Hisilicon Chip, Support 4TB HDD storage, 4G GPS WIFI
It is a 8CH Mobile DVR support 8 1080P AHD camera input for recording, 4G/GPS/WIFI function optional, ADAS/DMS/BSD special function customized. Max. 4TB HDD for saving recording files. The strong metal housing protecting HDD memory very well. It can be used for train, metro, big truck, fuel tank, boats CCTV system.

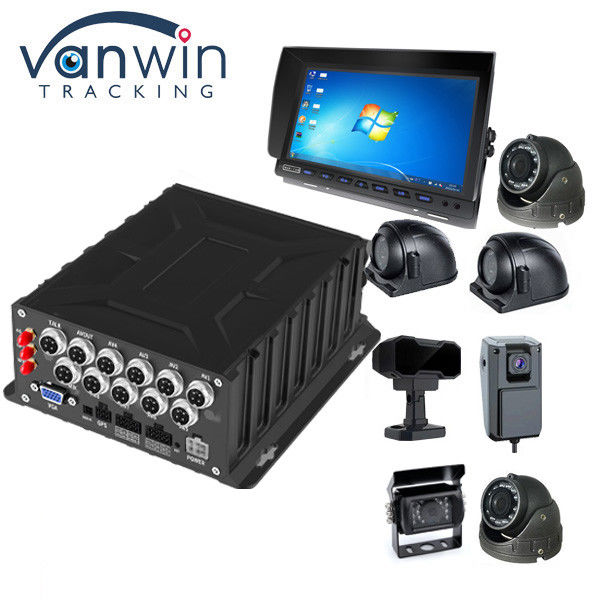

The complete system includes:
1. One 8CH MDVR with 4G/3G GPS WIFI G-sensor for Option
2. DMS+ADAS+BSD option
3. 6-8 pcs 1080p / 960p cameras with extension cables
4. One monitor for the driver
5. HDD 500GB/1TB/2TB
6. Micphone, Talkback device, Panic button
- Easy Install Camera System – come with 4CH Mobile DVR,4pcs 1080P cameras,7 inch HD VGA monitor and all the accessories required for installation are already equipped, such as differenct length extension cables,tape,screws and so on
- DVR for Long Loop Recording – ① It have HDD +SD Card slot where you can insert a HDD/SSD up to 2TB and 256GB SD card (SD card not included) ② H.265 Video Format – H.265 coding offers longer recording time saving up to 30-40% of storage space than H.264 systems
- Cameras for all-Round Monitoring – ① 4pcs 1080P AHD 2.0MP metal cameras,all 3.6MM lens ② side view and rear view camera are IR night vision and waterproof ③ the indoor dome camera without IR and not waterproof, built in Microphone for recording,so it is very suitable to install behind the windshield
- 7 inch HD VGA Monitor – ① Provide 8FT monitor power supply wires,more installation locations to choose ② Powered directly from the MDVR, more convenient to install ③ Screen resolution: 1024*600
- Well Protected by Super-capacitor – designed to record reliably even when effected by shocks and strong vibrations. MDVR Support 5s recording and mandatory event videos saving
- Professional 4CH MDVR system for effective fleet management - It’s designed for various vehicles management, and widely used in buses, coaches, construction machinery, taxis, lorries, fire trucks, ambulances, passenger vehicles, etc.
Main Specification
|
Operating System
|
Linux
|
|
|
Language
|
English, Chinese or Customized language.
|
|
|
Video Compression
|
H.264/H.265
|
|
|
OSD
|
Support time, date, vehicle ID, image, etc.
|
|
|
GUI
|
OSD Interface
|
Can external connect to LCD and set the system specifications by remote
|
|
Video
and Recording |
Video Input
|
8CH 1080P AHD/Analog/Compound video input, aviation connector,
1.0Vp-p, 75Ω |
|
Video Output
|
1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω.
Support 1CH full screen and 4CH division. |
|
|
Preview
|
Single/8CH Pictures Preview, support full screen of event trigger or
back view of car reversing |
|
|
Recording
Resolution |
Support 1080P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P
|
|
|
Video Rate
|
8CH @1080P PAL, 1*15fps@1080P PAL,1*20fps@1080P NTSC
|
|
|
Audio
|
Audio Input
|
8CH Aviation connector inputs
|
|
Audio Output
|
1CH Aviation connector output
|
|
|
Communication Interface
|
Optional for 1CH RS232 or 1CH RS485
|
|
|
Wireless Transmission
|
Support built-in 3G/4G wireless transmission, WCDMA, CDMA2000,
|
|
|
Location /G-sensor
|
Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route
|
|
|
Video Storage
|
Supports 2*2.5-inch hard disks, maximum supports 2*4TB solid state drives, thickness 14MM
|
|
|
Security Management
|
User Password or administrator password management, support screen locked
|
|
|
Power and
Consumption |
Power Management
|
Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc
Support time setting startup/shutdown, delayed power off function |
|
Power and Consumption
|
Input Voltage
|
DC:+8V - +36V
|
|
Output Voltage
|
+12V 1.5A,+5V 1.5A
|
|
|
Power-off Protection
|
UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off.
|
|
|
Working environment
|
Temperature
|
-40℃ - +70℃
|
|
Humidity
|
20% - 80%
|
|
The difference &advantage&highlights are below :
1.Best Progam named HI-SILICON which could compete with any big brands.
2.Full new unique appearance .
3.Maximum could support 4TB and 512G sd card.
4.It could add or cusomize more functions in the future when you need .
By now could add any function of ADAS+DMS+BSD algorithm.
5.The price could be support you same as old modle before or even less for you to advertise .
6. 4G GPS WIFI optional .
Back View for 8CH 1080P MDVR
4G Client Platform
