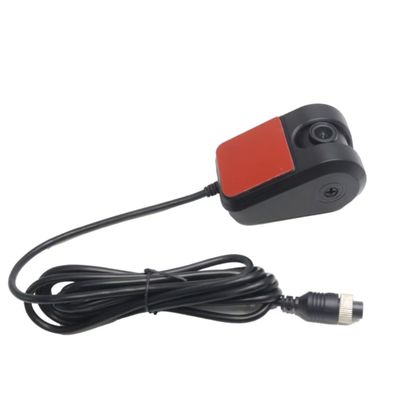

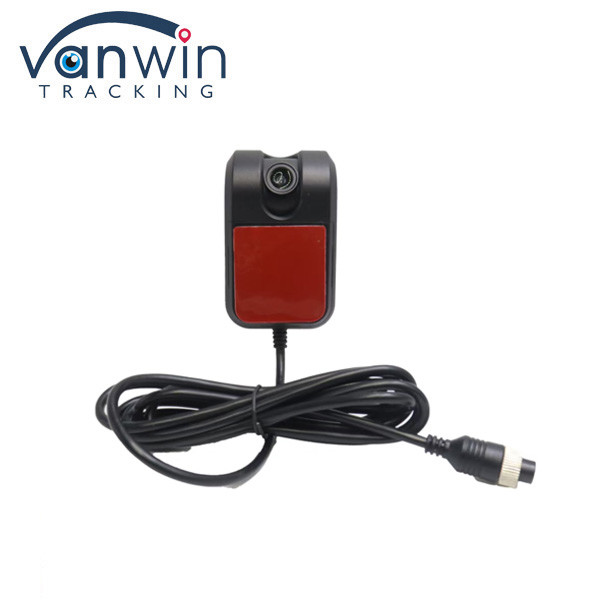

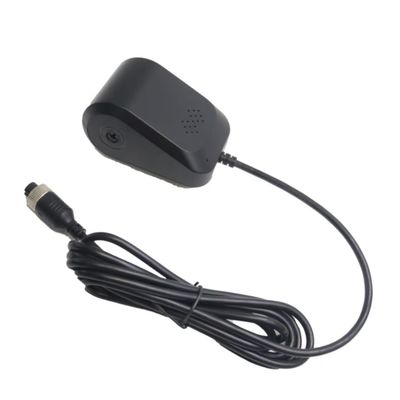

Private Mold Windshield Front Surveillance Car Camera 1080P ADAS Camera for Bus/Truck/Van
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-210B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Image Sensor: | CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS |
|---|---|---|---|
| Type: | Front Camera/ADAS Camera | Feature: | Windshield, Dustproof |
| TV System: | PAL Or NTSC | Color: | Black |
| 3M Glue: | Support | Technology: | AHD |
| View Angle: | 90-120 Degree | Material: | Plastic |
| Highlight: | 1080P ADAS Camera,Bus/Truck/Van ADAS Camera,Windshield Front Surveillance Car Camera |
||
Product Description
Private Mold Windshield Front Surveillance Car Camera 1080P ADAS Camera for Bus/Truck/Van
Front Camera Technical Specification
| AHD Cameras:VW-210B | |
| Technology | infrared |
| Sensor | 1/3 AHD 1080P |
| Shape | Streamlined camera |
| Types | Front view camera |
| Installation | Screw and 3M Glue |
| Lens | 2.8MM/3.6MM |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P/130W 1080P/200W |
| Operating Temperature | -25℃~70℃ |
| Warranty | 1 Years |
| Chip Technical Parameters | |||
| Image Sensor | 1/2.9" IMX323 2.0MP | Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
| Min.illumination | 0.01Lux full color | White Belance | AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD | Advanced Function | 2D_DNR |
| Frame Rate | 1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment | -25℃~+70℃,Humidity 95% |
| Lens | 2.1/2.8/3.6 | Power supply | DC 12V +/-15% |
Connetor Available for Option
- 4Pin Aviation connector
- DC+RCA connector
- CCTV security BNC+DC connector
Bus security Cameras Accessories
Manual 1pcs, glue 2 pcs
Cameras for optional
Want to Know more details about this product
