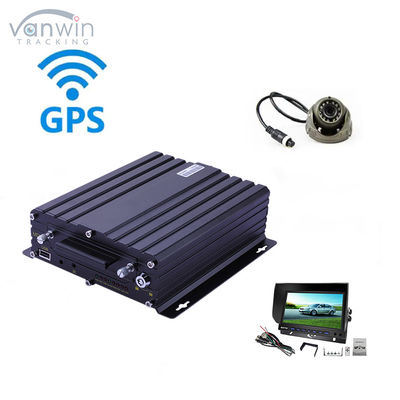

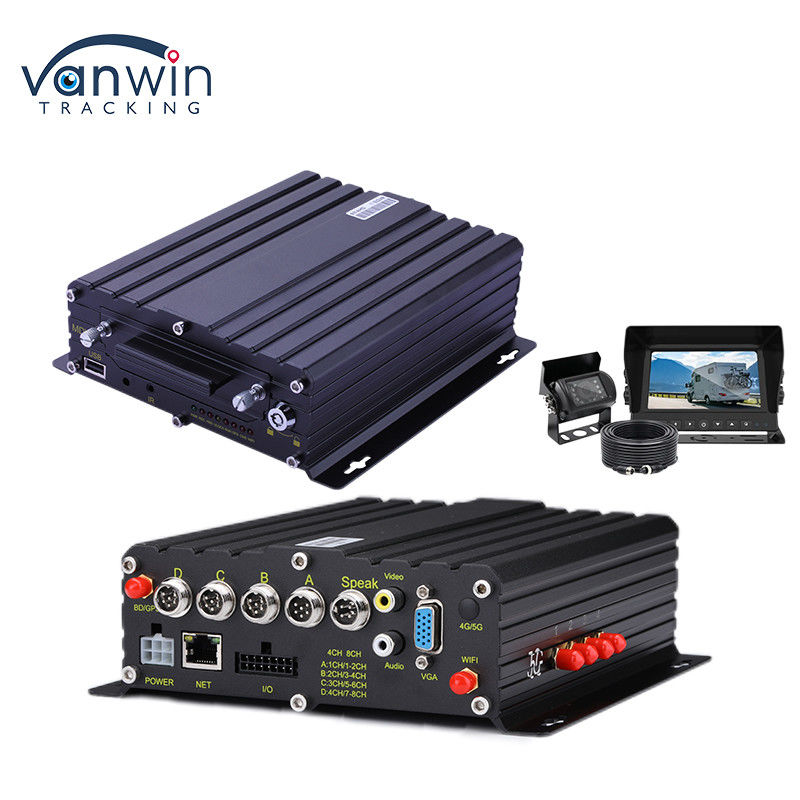

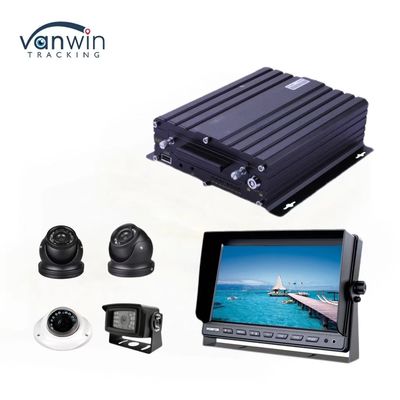

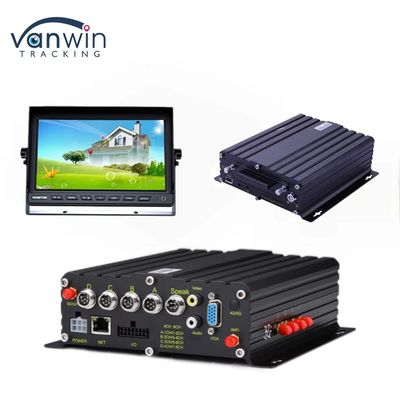

H.265 4CH HD Vehicle Mobile DVR 1080P AI Car Recorder With Alarm Input Pulse Speed Input
Product Details:
Place of Origin: | Shenzhen,China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-M9208-AI |
Payment & Shipping Terms:
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiated |
Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
Delivery Time: | 2-3 days for samples,15-30 days for large orders |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 5,0000 pcs per month |
Detail Information |
|||
Alarm Input: | 4CH IO Alarm Input, Pulse Speed Input,support Alarm Linkage Function | Compression: | G.711A Compression, 8KB/s Speed |
---|---|---|---|
OS: | Linux | Voltage Input: | DC:+12V ~ +36V |
Humidity: | 20% To 80% | Temperature: | -20℃ To +70℃ |
Voltage Output: | +12V@2.5A,+5V@2A | Language: | Chinese/English/Russian/Others (can Be Customized) |
Net Weight: | 2.5 Kg | ||
Highlight: | 4CH HD Vehicle Mobile DVR,1080P AI Car Recorder,H.265 AI Car Recorder |
Product Description
H.265 4CH HD Vehicle Mobile DVR 1080P AI Car Recorder
Key Features of 4CH HD DVR
-
Four Camera Inputs: Supports up to four HD cameras simultaneously, allowing for comprehensive monitoring of the vehicle's surroundings.
-
High-Definition Recording: Capable of recording video in high-definition (HD) quality, typically 720p or 1080p, ensuring clear and detailed footage.
-
Storage Options: Utilizes SD cards for video storage, making it easy to replace or upgrade storage capacity as needed.
-
Loop Recording: Automatically overwrites the oldest footage when the storage is full, ensuring continuous recording without manual intervention.
-
G-Sensor Integration: Equipped with a built-in G-sensor that detects sudden movements, such as collisions, and triggers emergency recording to save important footage.
-
Remote Access: Some models offer remote monitoring capabilities, allowing users to view live video feeds via smartphones or computers.
-
Durability: Designed to withstand harsh conditions, making it suitable for various environments, including extreme temperatures and vibrations.
The applications of a 4-channel HD Car Mobile DVR
1. Public Transportation
- Buses and Coaches: Enhanced safety and security for passengers and drivers, with real-time monitoring and recorded footage of incidents.
2. Taxi Services
- Ride-Hailing and Taxis: Provides evidence in case of disputes, safeguarding both drivers and passengers, and improving overall service security.
3. Logistics and Delivery
- Freight Vehicles: Monitors driver behavior and protects cargo, ensuring accountability and reducing theft or damage during transit.
4. Emergency Services
- Ambulances and Fire Trucks: Captures critical events during emergency responses, aiding in training and improving service delivery.
5. Fleet Management
- Vehicle Tracking: Assists businesses in monitoring driver performance, optimizing routes, and ensuring the safety of fleet vehicles.
6. Law Enforcement
- Police Vehicles: Provides video evidence for investigations and enhances officer accountability during interactions with the public.
7. School Transportation
- School Buses: Ensures the safety of students during transit, providing a record of events in case of emergencies.
8. Construction and Heavy Machinery
- Construction Vehicles: Monitors operations and safety compliance, helping to prevent accidents and ensure adherence to regulations.
9. Personal Use
- Private Vehicles: Offers peace of mind for individual users, providing evidence in case of accidents or disputes on the road.
10. Insurance Verification
- Accident Documentation: Provides clear video evidence for insurance claims, helping to expedite the claims process and reduce fraud.
Specification | ||
Item | specification | |
OS | Linux | |
Language | Chinese/English/Russian/Others (can be customized) | |
Video Compression | H.265 H.264 | |
OSD | Character overlay function,Overlays information such as date time and vehicle ID | |
GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation |
Video Record System | Video Input | 4CH:1080P,720P,D1 |
8CH:1080P,720P,D1 | ||
Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |
Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |
Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |
Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |
Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields | |
NTSC: 120 frames per second, CCIR525 line, 60 fields; | ||
CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; | ||
HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; | ||
D1: 800Kbps ~ 3Mbps, multi levels video quality optional; | ||
720P : 1Mbps~2Mbps, multi levels video quality optional; | ||
1080P: 1Mbps~4Mbps, multi levels video quality optional; | ||
Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |
Audio | Audio Input | 4 or 8 channel aviation Plug |
Audio Output | 1channel | |
Compression | G.711A compression, 8KB/s speed | |
Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |
Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |
Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |
1CH 485 interface, can connect PTZ,etc. | ||
Wireless transfer | Built-in 4G network wireless transmission, TD-LTE, FDD-LTE | |
Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |
Storage | Storage | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security.IPC MDVR max to 4TB. |
Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |
Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |
USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |
Video Playback | Video Search | Search video by Record Time/Record Mode etc |
Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |
Support x 2,x4,x8,x16. fast forward or fast backward play | ||
Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; |
Support timed power on/off and delayed shutdown functions. | ||
Voltage Input | DC:+12V ~ +36V | |
Voltage Output | +12V@2.5A,+5V@2A | |
Power Consumption | Normal Working <5W | |
Working Environment | Temperature | -20℃ to +70℃ |
Humidity | 20% to 80% | |
Safety Management | Password Access | Two level management of user password and administrator password |
others | Size | 20.5*21 *6.2cm or IPC MDVR 22.5CM (D)* 18.7CM(W)* 6.2CM(H) |
Net Weight | 2.5 Kg |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
