1080P HD Explosion-proof Vehicle Surveillance Camera with CE/FCC/RoHS Certification
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-116 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Power Supply: | DC12V (±10%) | Signal System:: | 720P/960P/1080P |
|---|---|---|---|
| Video Output: | AHD/TVI/CVI/CVBS Switchable | Sensor: | 1/2.7＂ SC2035 + NVP2441H |
| Operating Temp: | -20 º C To 60 º C | Warranty: | 1 Year |
| TV System:: | PAL Or NTSC | Certification: | CE/FCC/RoHS |
| Working Humirity: | Less Than 90 % | ||
| Highlight: | Explosion-proof Vehicle Surveillance Camera,RoHS Vehicle Surveillance Camera,1080P HD Vehicle Surveillance Camera |
||
Product Description

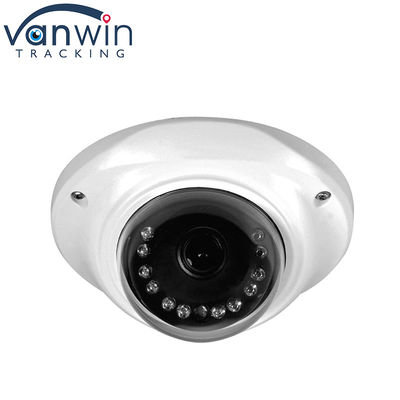

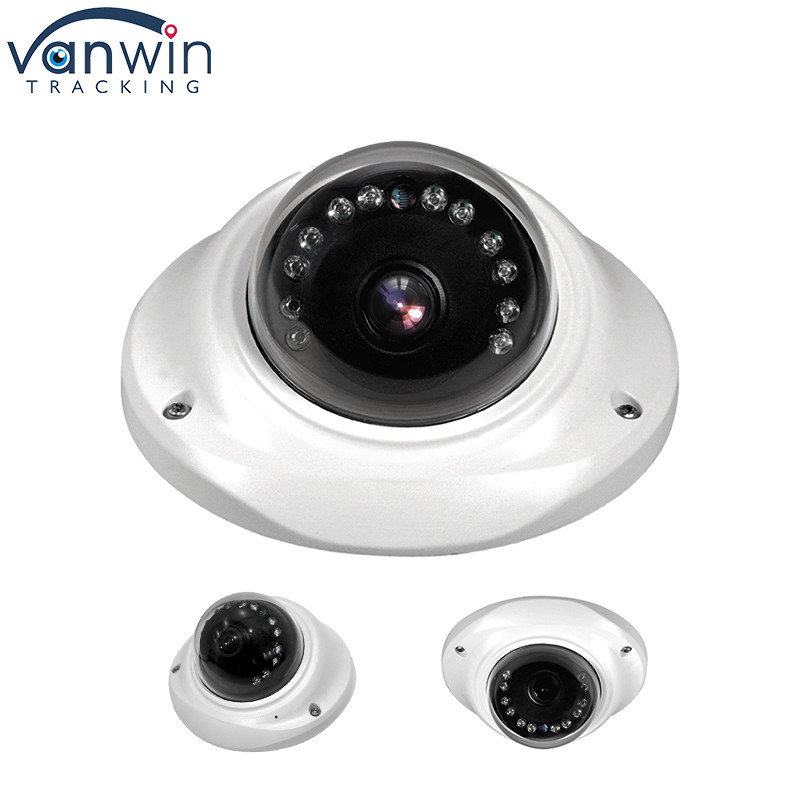

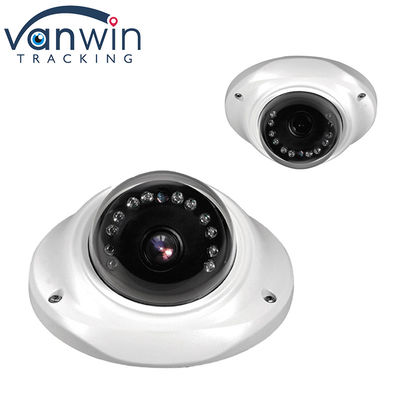

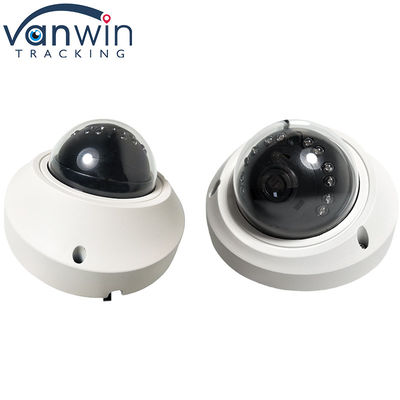

HD Explosion-proof Vehicle Surveillance Camera 1080P CCTV Dome Camera
| Sensor | 1/2.7＂ SC2035 + NVP2441H |
| TV System | PAL / NTSC |
| Effective Resolution | 1920(H)×1080(V) |
| Minimum Illumination | 0.01 LUX / F1.2 |
| Horizontal Resolution | AHD: 2.0 MP 1080P,Analog: 2000 TVL |
| Day&Night Mode | External control (default)/automatic/color/black and white |
| Frame Rate | 1080P@25fps / 1080P@30fps |
| Synchronization Method | inter-sync |
| Shutter | AUTO /1/50～1/５0000s |
| SNR | >46dB |
| Video Output | AHD/TVI/CVI/CVBS Switchable |
| Working Temperature | -20 º C to 60 º C |
| Working Humirity | less than 90 % |
| Power | DC12V (±10%) |
1.Q: Does the MDVR support Hard drive and SD card?
A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.
The storage capacity can be from 32GB to 2TB.
2.Q: Is it difficult to install MDVR into the vehicle?
A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.
And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.
3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,
is it available?
A: Definitely yes!
The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.
In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,
PTZ camera, and so on.
4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?
A: Yes, we have SDK ready and welcome your OEM customized order!
