Rotatable Lens Vehicle Hidden Camera AHD 1080P/960P Side Mounted Waterproof Night Vision
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-S543 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 500 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, L/C，Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Type: | Blind Area Monitoring Vehicle Hidden Camera | Strong Point: | IP69K Waterproof, Rotatable Len, Sideview, For BSD Camera |
|---|---|---|---|
| Image Sensor: | 1/3" CMOS AHD 720/960/1080P | Effective Pixel: | 1280(H)*720(V) |
| Minimum Illumination: | 0.5Lux@(F1.2,AGC ON) | Video Output: | AHD Standard，720P /960P 1080P Output |
| Application: | Cabs, Minivans, Buses, Vans | ||
| Highlight: | Waterproof Night Vision Vehicle Hidden Camera,Side Mounted Vehicle Hidden Camera,AHD 1080P Vehicle Hidden Camera |
||
Product Description
AHD 1080P/960P side mounted waterproof night vision vehicle mounted camera blind area monitoring Vehicle hidden camera
Product Characteristics:
HD Infrared Night Vision Car Camera,High sensitivity with good night vision.
Metal housing, dust-proof, water-proof, hydrochloric acid-proof, explosion-proof.
For outdoor sideview or BSD blind spot detect .
Product Parameters:
| item | |
| Place of Origin | China |
| Guangdong | |
| Brand Name | vanwin |
| Warranty | 1year |
| Special Features | Waterproof / Weatherproof, Low Power |
| Sensor | CMOS, CCD |
| Style | Side mounted or lifting camera |
| Function | Wide Angle |
| Video Compression Format | H.265/H.264 |
| Data Storage Options | Connect to MDVR |
| Application | Internal or external to buses/trucks/taxis, etc |
| Customized support | Customized logo, OEM, ODM |
| Product name | 1-inch Plastic side mounted camera |
| Support chip | AHD1080P/960P/720P/SONY 700TVL, etc. |
| Default connection port | Aviation Female |
| Support connection port-1 | Aviation Female/Aviation Male/BNC+DC |
| Support connection port-2 | RCA+DC/4 core small Male/4 core small Female |
| Default lens | 2.8mm |
| Support installation lens | 1.7mm/1.8mm/2.1mm/2.5mm/2.8mm/3.6mm/6mm |
| Default voltage support | 12V(Generally, the output voltage of MDVR and all-in-one MDVR is 12V) |
| Custom voltage support(Wide voltage) | 12V~24V/8V~36V |
| Custom support | OEM,ODM |

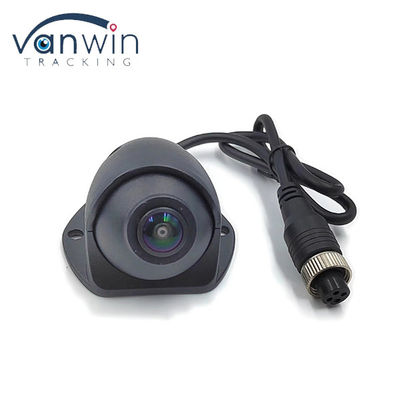

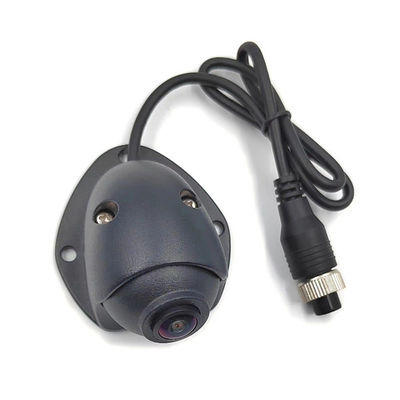

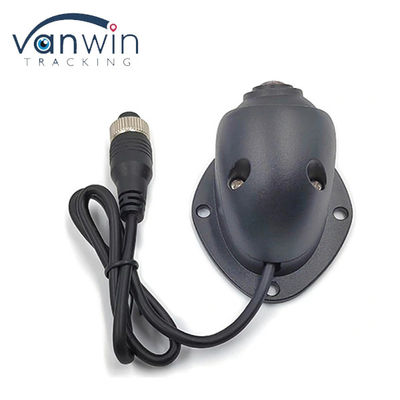

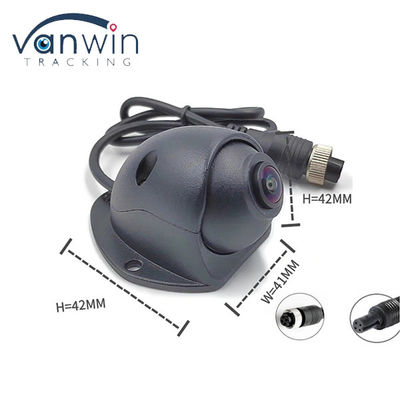

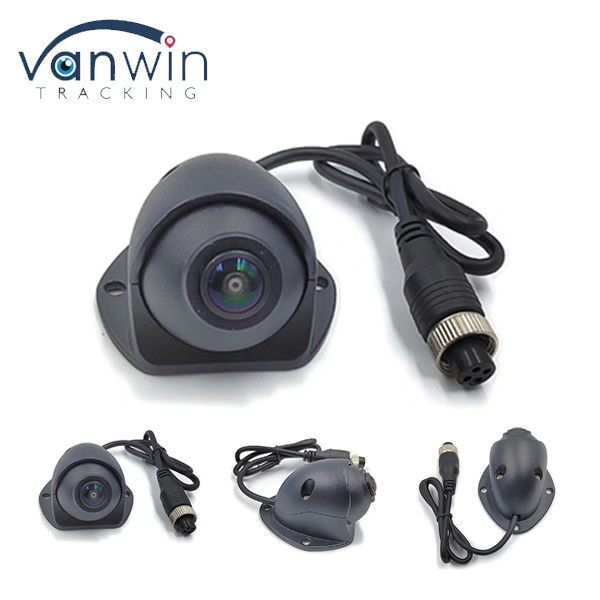

Product Pictures:
Product Installation Instructions:
Our Service:
1.Any inquiry will be replied within 24 hours.
2. all products will be strictly checked before shipment
3. All products will be packed carefully before shipment.
4. High quality, reasonable and competitive price.
5. We have our own factory to produce products that can meet your different needs.
If you have any other questions, please contact us.
