4G GPS WIFI Dual SD Card 4 Channel MDVR 1080P HDD AI DVR for Bus Cars Floklift
Product Details:
| Place of Origin: | SHENZHEN CHINA |
| Brand Name: | Vanwin Tracking |
| Certification: | CE,FCC,RoHS |
| Model Number: | VW-8608-AI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Standard carton box |
| Delivery Time: | 2-3 days for sample,15-30 days for large order |
| Payment Terms: | T/T, Western Union |
|
Detail Information |
|||
| Item Name: | 4G GPS WIFI Dual SD Card 4 Channel 1080P HDD AI MDVR | Support System: | ADAS BSD DSM |
|---|---|---|---|
| Storage: | HDD SD Card With Max 2TB + 512GB | Power Input: | DC 8V-36V |
| Video Compression: | H. 264 H.265 ( High ) | Channel: | 4CH / 4CH AHD + 4CH IPC |
| Highlight: | Bus Cars Floklift MDVR,4G GPS WIFI 4 Channel MDVR,1080P HDD AI DVR |
||
Product Description

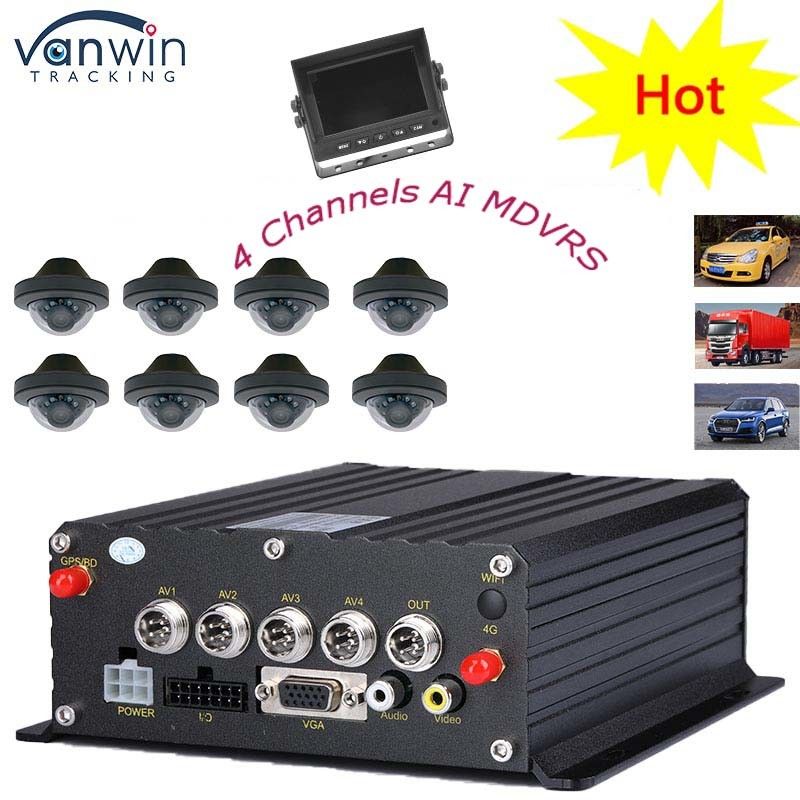

4G GPS WIFI Dual SD Card 4 Channel MDVR 1080P HDD AI DVR for Bus Cars Floklift
WHY YOU SHOULD CHOOSE US?
Our Advantages:
1. Professional in AI vehicle security control system (like ADAS,DMS,BSD)and more than 15 years experience. We provide one stop solution.
2. The Research and development department has a rich experience in car MDVR and cameras and displays. Any product are welcome for customized requirements for case, HW and software.
3. With a lot of imported test equipment for aging tests, reliability test and stability tests during development and also mass production period.
4. With thorough quality system to guarantee the good quality products.
5. Good after-sales service.

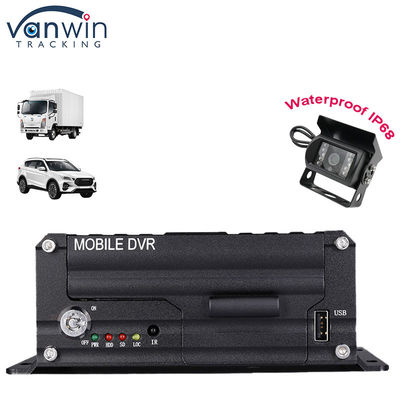

Description of MDVR:
Mobile DVR (Mobile Digital Video Recorder) is a video surveillance device designed specifically for vehicles, widely used in various modes of transportation such as buses, taxis, police cars, logistics vehicles, etc.

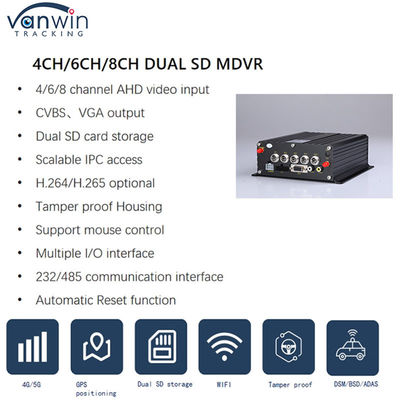

Specifcations of 4 Channel MDVR:
1. H.264/ H.265 hard compression mode, support 8 channels D1, 720P, 1080P HD adaptive input; Any mix of modes.

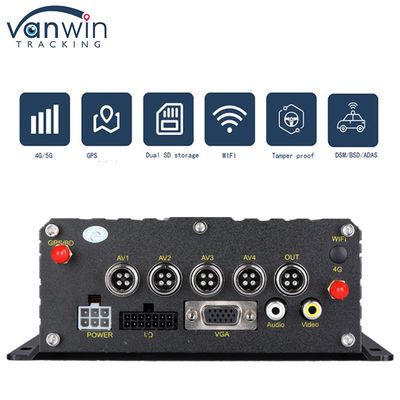

2. 3 video outputs (1 CVBS video AV output, 1 VGA output, 1 Aviation joints output).
3. Dedicated file system solves the problem of easy damage caused by unbalanced disk writing, solves the problem of file fragmentation caused by repeated erase and write, and solves the problem of data loss, memory inability and file garbled caused by memory file system crash.
4. DC12V-36V adaptive wide voltage input, ultra-low power consumption design.
5. One SD card and one HDD storage (The SD card supports a Max of 512GB, supports 2.5-inch mechanical hard drives or SSD hard drives, and supports a Max of 2TB.)
Specifications:
| Item | specification | |
| OS | Linux | |
| Language | Chinese/English/Others (can be customized) | |
| Video Compression | H.264/H.265 | |
| OSD | Overlays information such as date time and vehicle ID | |
| GUI | Graphical User Interface | Can connect to external LED screen. Setup system parameters with the remote control. |
| Video Record System | Video Input | 4CH:1080P,720P,D1 |
| Video Output | 1 CVBS video AV, 1 VGA, 1 Aviation joints | |
| Preview | Multi-mode screen preview, support manual/event trigger full-screen display function | |
| Resolution | Max support: 8*1080N 120FPS; 8*720P 120FPS | |
| Video Quality | Adjustable video levels from 1 to 8: best level 1, minimum level 8 | |
| Video Standard | Default automatic recording, support ignition recording, manual recording, alarm recording, etc | |
| Audio | Audio Input | 8CH |
| Audio Output | 1CH | |
| Compression | G.711A compression, 8KB/s speed | |
| Alarm Input | 4 CH of IO alarm input; It has the function of alarm linkage | |
| Alarm Output | 2CH output, linkage sound and light alarm, oil and power cut-off, etc | |
| Communication Interface | 1CH RS232, can be connected to oil sensor, temperature sensor, OBD, etc | |
| 1CH RS485 (extensible) | ||
| Wireless transfer | Support 4G, TDD-LTE, FDD-LTE etc | |
| Position | Built-in GPS/BD module | |
| Storage | storage | SD Card Max 512GB ,HDD or SSD HDD Max 2TB. |
| Upgrade | Support USB flash disk updating SD card upgrade , OTA remote upgrade automatically | |
| USB | Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data | |
| Video Playback | Video Search | Search video by Record Time/Record Type etc |
| Playback | Max support 8CH Replay /Stop/Fast Forward/Fast Reverse at same time | |
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, support Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection..Support Time Setting/Delay power off |
| Voltage Input | DC:+12V ~ +36V | |
| Voltage Output | +12V@1A | |
| Power Consumption | Normal Working ＜5W | |
| Working Environment | Temperature | -10℃ to +70℃ |
| Humidity | 8% to 90% | |
| Safety Management | Safety enter | user/Admin 2 Levels Different Passwords , |
| CMS access | CMSV6, JT/T808-2011, JT/T808-2019, JT/T1078-2016 | |
FAQs
1. Can you provide technical support?
Yes, we can provide professional technical support before and after sales.
2. What platform do you use?
We use CMSV6 platform. We will provide you the authorized code after you buy our equipment.
3. How can you guarantee the quality?
Strict quality control policy, 12 months warranty and Lifetime technical support.
4. Do you support ODM&OEM?
Yes, we can support ODM&OEM if you need.
5. How can i get a better price?
Tell us your specific needs and quickly match the right product for you, price are negotiable for bulky order.
