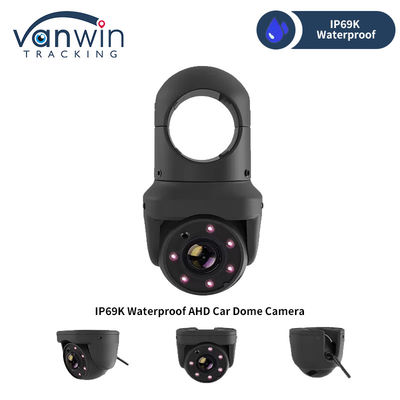

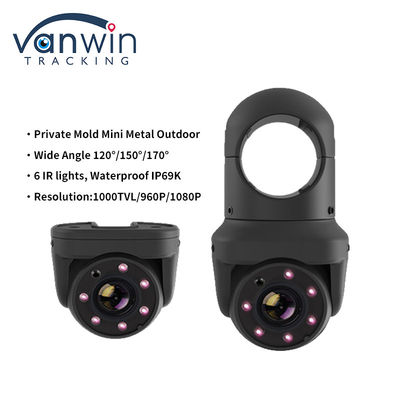

Mini AHD 6 IR Lights IP69K Waterproof Car Dome Camera For Truck Bus With Super Nightvision
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-773 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Waterproof:: | IP69K | Support Perspective: | 120°/150°/170° |
|---|---|---|---|
| Resolution:: | 1000TVL/960P/1080P | Dimensions:: | 47.8mm*41.9mm*42.2mm |
| IR Lights:: | 6 IR Lights | Video Compression Format: | H.265 |
| Application: | Outdoor, Indoor | Warranty:: | 1Year |
| Highlight: | Super Nightvision Car Dome Camera,Truck Bus Car Dome Camera,IP69K Waterproof Car Dome Camera |
||
Product Description
Mini AHD 6 IR Lights IP69K Waterproof Car Dome Camera For Truck Bus With Super Nightvision
IP69K Waterproof Car Dome Camera Description
The IP69K Waterproof Car Dome Camera is designed for high-performance surveillance in harsh environments. With its robust construction and advanced features, this camera is perfect for vehicles operating in extreme weather conditions, ensuring reliable monitoring wherever you go.
Key Features:
IP69K Rating: Fully protected against dust and capable of withstanding high-pressure water jets, making it ideal for outdoor use in any climate.
High Definition Video: Captures clear, high-resolution footage, ensuring that every detail is visible, day or night.

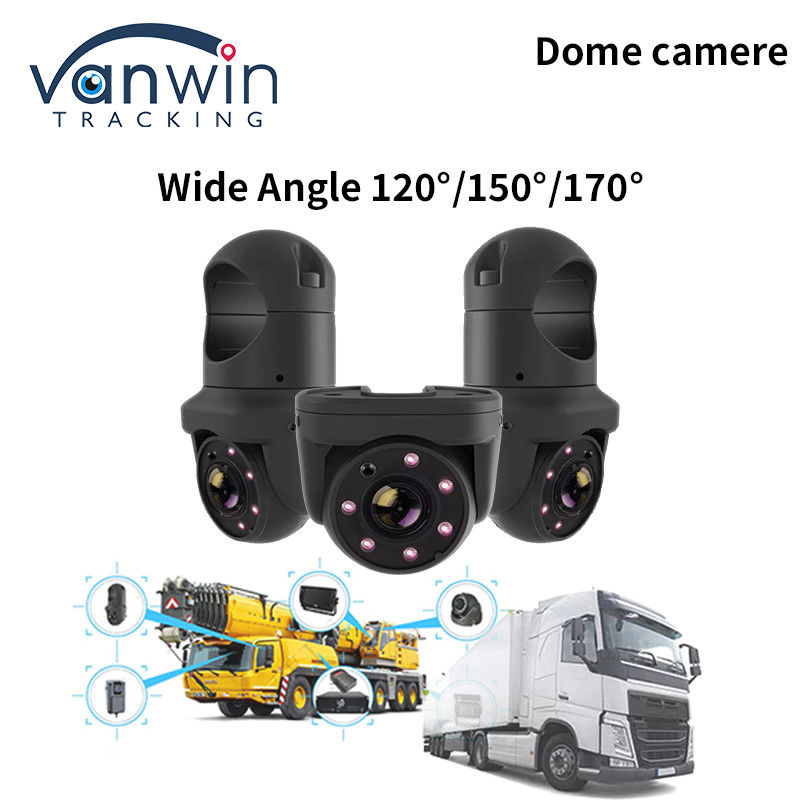

Wide Viewing Angle: Equipped with a wide-angle lens, this camera provides an expansive field of view, reducing blind spots and enhancing safety.

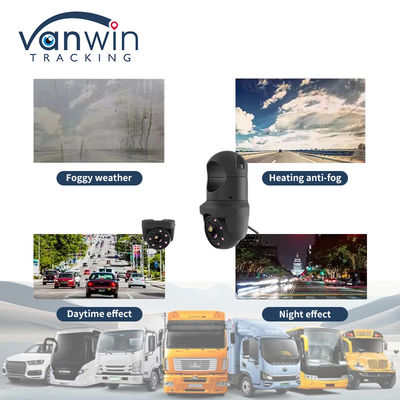

Night Vision Capability: Infrared LEDs allow for clear visibility in low-light conditions, ensuring 24/7 surveillance.
Durable Design: Built with rugged materials to withstand impacts, vibrations, and extreme temperatures, suitable for trucks, buses, and other heavy vehicles.
Car Dome Camera Specifications
| Image sensor | CMOS | Starlight CMOS | CMOS |
| Horizontal Resolution | 1.3Megapixel | 1.3Megapixel | 2.0Megapixel |
| TV system | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixel | 1280(H)*960(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Minimum Illumination | Color 0.1Lux,0 Lux with IR | Color 0.01Lux,0 Lux with IR | Color 0.05Lux,0 Lux with IR |
| S/N ratio | ≥45dB | ≥60dB | ≥56dB |
| Day/Night mode | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching | ||
| sync system | Internal | ||
| Backlight compensation | AUTO | ||
| White balance | AUTO | ||
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) | ||
| Video output | AHD(default)Standard,720P output | AHD(default)Standard,1080P output | |
| lens | 170°/150°/120°/More optional | 150°/120°/More optional | |
| IR leds Qty | 6pcs LEDs | ||
| IR distance | ≤3 meters | ||
| waterproof grade | IP69K | ||
| Operating Temp. | -20°C~+70°C, RH95%MAX | ||
| Storage Temp | -30°C~+80°C, RH95%MAX | ||
| Power supply | DC12V±10% | ||
| Power consumption | ≤2W | ||
| Dimension | 47.8*41.9*91.4(mm) | ||
