4 Ch AI Truck Bus Mobile DVR With AI DSM ADAS BSD Support 4G 5G WIFI GPS
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9014 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 10,00pcs per month; |
|
Detail Information |
|||
| Product Name: | 4 Ch AI Truck Bus Mobile DVR With AI DSM ADAS BSD Support 4G 5G WIFI GPS | Video Compression: | H. 264 H.265 |
|---|---|---|---|
| Channel: | 4CH Or 4CH AHD+4CH IPC | Resolution: | Support 1080P/720P/D1/CIF |
| Storage: | SDD/HDD SD, Max 2TB+512GB | Type: | AI Mobile DVR,4Ch Mobile DVR |
| Power Supply: | DC 8V~36V | Support: | Automatic Reset Function,mouse Control |
| Highlight: | BSD Support Mobile DVR,4G 5G WIFI GPS Mobile DVR,AI 4 Channel Mobile DVR |
||
Product Description
4 Ch AI Truck Bus Mobile DVR With AI DSM ADAS BSD Support 4G 5G WIFI GPS
Product Description

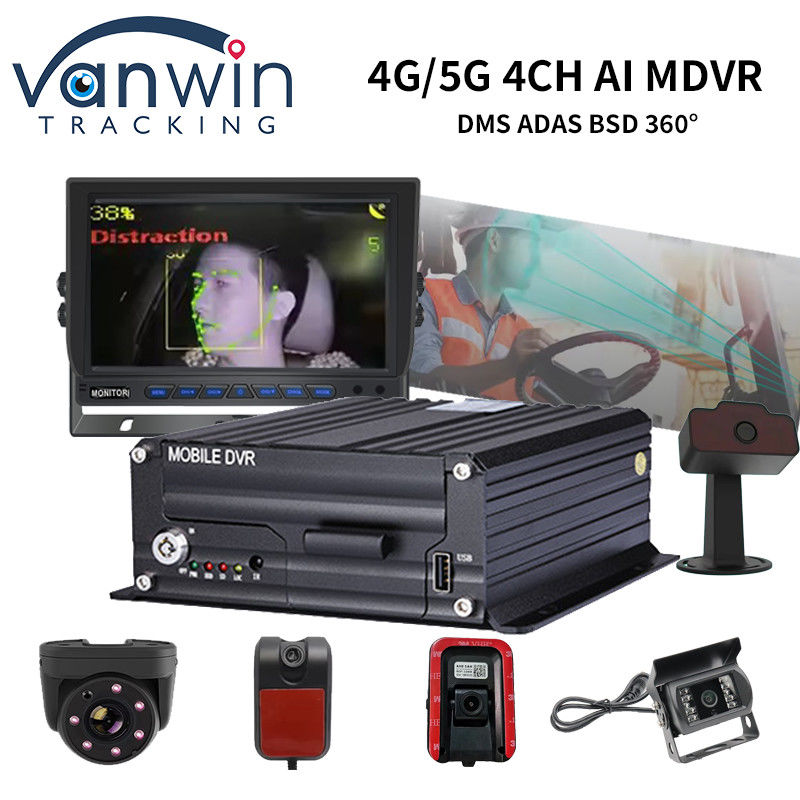

The AI Mobile DVR is a state-of-the-art digital video recording system designed for mobile applications. Engineered with advanced AI technology, it enhances surveillance and monitoring for vehicles such as buses, trucks, and emergency vehicles.
Applications:
Ideal for public transportation, logistics, law enforcement, and emergency services, the AI Mobile DVR enhances security, improves safety protocols, and aids in incident investigations.Can be used for buses, taxis, trucks, trains, ships, special work vehicles.
Product Parameter:
| Item | specification | |||
| OS | Linux | |||
| Language | Chinese/English/Russian/Others (can be customized) | |||
| Video Compression | H.265 H.264 | |||
| OSD | Character overlay function,Overlays information such as date time and vehicle ID | |||
| GUI | Graphical User Interface | System parameters can be set through an external display screen and remote control operation | ||
| Video Record System | Video Input | 4/8CH:1080P,720P,D1 | ||
| Video Output | 1 composite video output+optional VGA output, 1.0Vp-p, 75 Ω, supports 1 full screen and 2/4 split channels | |||
| Preview | support Single channel, 2/4 screen splicing preview, support manual/event triggered full screen display function | |||
| Resolution | Maximum support: 4*1080P 25 frames per channel; 8*1080P 15 frames per channel. | |||
| Video Quality | 0-8 levels video recording available, 0 is the best level, 8 is the lowest level. | |||
| Video Standard | PAL: 100 frames per second, CCIR625 line, 50 fields NTSC: 120 frames per second, CCIR525 line, 60 fields; CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional; HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional; D1: 800Kbps ~ 3Mbps, multi levels video quality optional; 720P : 1Mbps~2Mbps, multi levels video quality optional; 1080P: 1Mbps~4Mbps, multi levels video quality optional; |
|||
| Record Mode | Default automatic recording, supporting ignition recording, manual recording, alarm recording, etc | |||
| Audio | Audio Input | 4 or 8 channel aviation Plug | ||
| Audio Output | 1channel | |||
| Compression | G.711A compression, 8KB/s speed | |||
| Alarm Input | 4CH IO Alarm Input, pulse speed input,support alarm linkage function | |||
| Alarm Output | 2-channel switch output, linked with sound and light alarm, oil and power outage, etc | |||
| Communication Interface | 1CH RS232,Expandable POS machine, fuel sensor, LED advertising screen, OBD, etc | |||
| 1CH 485 interface, can connect PTZ,etc. | ||||
| Wireless transfer | Built in 4G network wireless transmission, TD-LTE, FDD-LTE 5G Optional |
|||
| Position | Support built-in GPS/BD module, can report to the CMSV7 standard platform | |||
| AI Algorithm | Support ADAS, DSM, BSD AI Safety Driving System | |||
| Storage Medium | SD&HDD | SD card supports up to 512GB, hard drive supports 2TB; SD card can be used as a mirror recording to ensure data security | ||
| Update Mode | Support USB flash drive upgrade, SD card upgrade, FTP remote automatic upgrade | |||
| Storage Mode | Exclusive bare disk storage method: Currently it is a relatively advanced storage method in the industry | |||
| USB | Front USB interface, can use USB flash disk to upgrade and backup ; support USB mouse to backup video | |||
| Video Playback | Video Search | Search video by Record Time/Record Mode etc | ||
| Playback | Supports a maximum of four channels simultaneous replays, including pause, fast forward, and fast rewind | |||
| Support x 2,x4,x8,x16. fast forward or fast backward play | ||||
| Voltage &Power Consumption | Power Management | Adaptive wide power input, with protection functions such as overload, undervoltage, short circuit, and reverse connection; Support timed power on/off and delayed shutdown functions. |
||
| Voltage Input | DC:+12V ~ +36V | |||
| Voltage Output | +12V@2.5A,+5V@2A | |||
| Power Consumption | Normal Working ＜5W | |||
| Working Environment | Temperature | -20℃ to +70℃ | ||
| Humidity | 20% to 80% | |||
| Safety Management | Password Access | Two level management of user password and administrator password | ||
| others | Size | 205(W)* 210(L)* 68(H) mm | ||
| Net Weight | 2 Kg | |||
FAQ:
What is an AI Mobile DVR?
An AI Mobile DVR is a digital video recorder designed for mobile environments, such as vehicles. It uses artificial intelligence to enhance video processing, including features like real-time analysis, object detection, and incident recording.
What are the key features of the AI Mobile DVR?
- 4channel AHD video input
- H.264/H.265 optional
- HDD&SSD&SD card storage
- Supprt ADAS/DSM/BSD AI algorithm integration
- 4CH Or 4CH AHD+4CH IPC
- Support JT808 and JT1078 standard protocols
- HD adaptive input(Automatically match cameras to work)
- Support 4G/5G/WIFI &GPS/BD/G-Sensor module expansion
How long can the AI DVR record?
Recording duration depends on the storage capacity and settings. Most devices support expandable storage options, allowing for longer recording times.SDD/HDD SD, Max 2TB+512GB.
