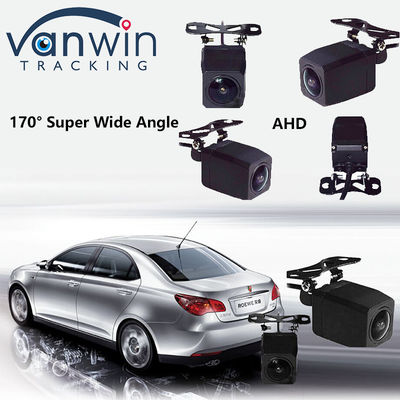

Super Night Vision IP69K Waterproof Rear View Camera With 170 Degree Wide Angle
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C258 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Video Resolution: | 1920*1080P | Effective Pixel: | 960(H)*576(V) |
|---|---|---|---|
| Waterproof Grade: | IP69 | Warranty: | 12 Months |
| View Angle: | 170 Degree | TV System: | PAL/NTSC |
| Power Supply: | DC12V±10% | Power Consumption: | ≤0.6W |
| Highlight: | Super Night Vision Rear View Camera,IP69K Waterproof Rear View Camera,170 Degree Rear View Camera |
||
Product Description
Super Night Vision IP69K Waterproof Rear View Camera With 170 Degree Wide Angle
Product Description
Enhance your driving safety with our advanced Waterproof Rear View Camera, designed to provide clear visibility in all weather conditions. This camera is perfect for cars, trucks, and SUVs, ensuring you can reverse safely, even in rainy or snowy environments.
Key Features:
-
High-Resolution Imaging: Equipped with a high-quality lens that delivers crystal-clear video, ensuring you can see everything behind you with precision.
-

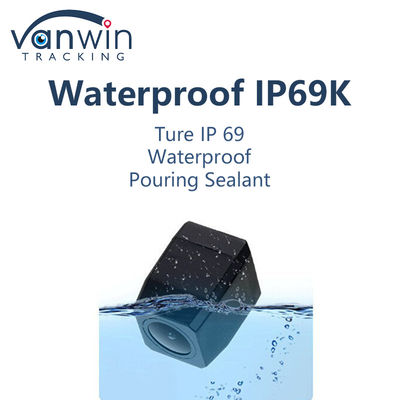

Waterproof Design: Rated IP69, this camera can withstand heavy rain and extreme temperatures, allowing it to perform reliably in any conditions.
-

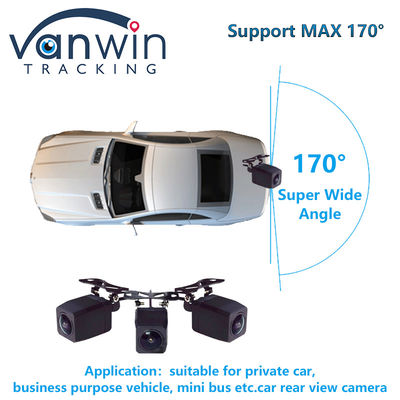

Wide Viewing Angle: With a 170-degree field of view, our camera captures more of the area behind your vehicle, reducing blind spots for safer maneuvering.
-

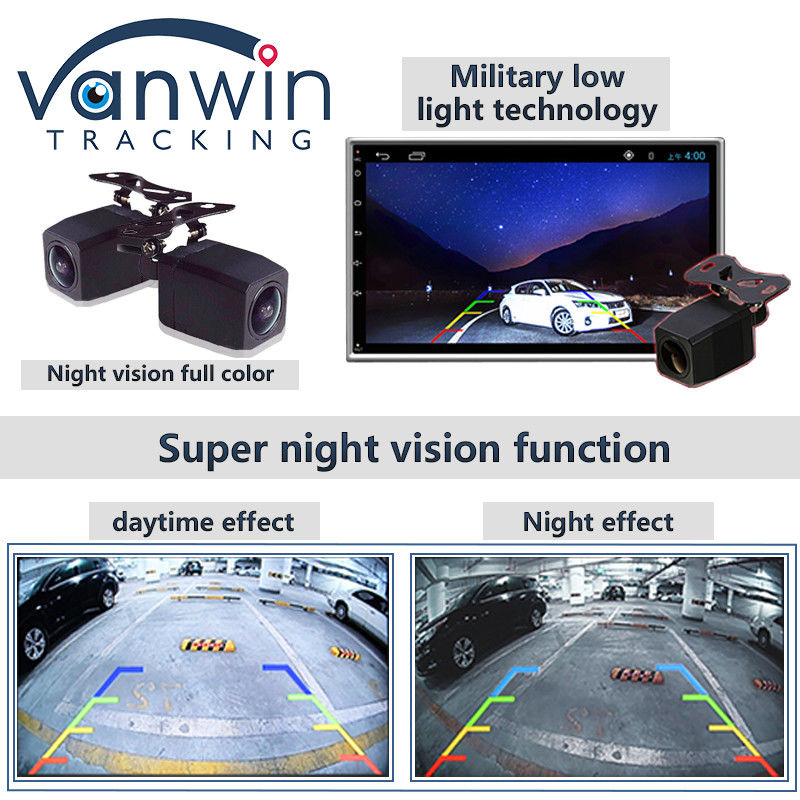

Night Vision Capability: Built-in infrared LEDs enable clear visibility in low light conditions, providing peace of mind when reversing at night.
-
Easy Installation: The camera comes with all necessary mounting hardware and a detailed installation guide, allowing for a straightforward setup.
-
Universal Compatibility: Designed to work with most vehicles, it easily connects to your existing display or monitor.
Specifications:
| Technical parameters | ||
| Model | JK-AHD-C258 | |
| Image sensor | 1/3" progressive scan CMOS | |
| Horizontal resolution | 1000TVL | |
| TV system | PAL/NTSC | |
| Effective pixel | 960(H)*576(V) | |
| Low illumination | 0.05Lux@(F1.2,AGC ON) | |
| S/N Ratio | ≥48dB | |
| Auto Gain Control | AUTO | |
| Back Light Comp | AUTO | |
| White Banlance | AUTO | |
| Digital Noise Reduction | 2D/3D-DNR | |
| Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) | |
| Video output | Follow CVBS standard, 1.0V p-p Composite Output 75ohm | |
| Output connector | 4Pin aviation head cable (Default) | |
| Lens/Angle of view | 1.5mm/H=170°,M12*P0.5 | |
| Waterproof grade | IP68 | |
| Operating Temperature/Humidity | -40°C~+85°C/ Humidity ＜90%(No condensation) | |
| Power supply | DC12V±10% | |
| Power consumption | ≤0.6W | |
| Dimension | 32*23.5*23.5 | |
| Application:suitable for private car,business purpose vehicle, mini bus etc.car rear view camera | ||
Why Choose Us?
Our Waterproof Rear View Camera combines durability, ease of use, and superior performance, making it an essential accessory for any vehicle. Drive with confidence knowing you have the best in rearview camera technology.
Picture Details
FAQ
What is a waterproof rear view camera?
A waterproof rear view camera is a device designed to provide a clear view of the area behind your vehicle, even in wet conditions. It is sealed to prevent water ingress and is suitable for use in all weather conditions.
What is the installation process?
Installation generally involves mounting the camera at the rear of the vehicle, connecting it to a power source,and linking it to a monitor or display. Many cameras come with detailed installation instructions.
Is it compatible with all vehicles?
Most waterproof rear view cameras are designed to be universal and can fit a variety of vehicles. However, it’s essential to check the specifications for compatibility with your car model.
Can I use the camera in extreme temperatures?
Yes, many waterproof rear view cameras are designed to withstand a range of temperatures, making them suitable for various climates. Always check the manufacturer's specifications for specific temperature ratings.
Is there a warranty for the camera?
Most manufacturers offer a warranty for their products. Check the warranty details before purchasing to understand the coverage period and conditions.
