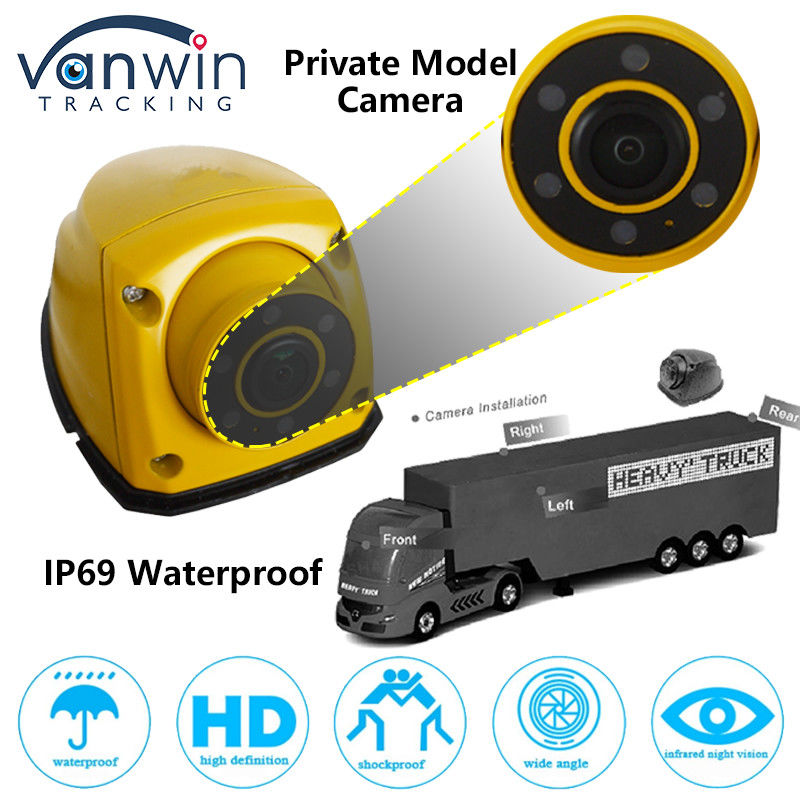

1080P AHD IR Night Vision Surveillance Camera Waterproof IP69K Shockproof Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-772 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||

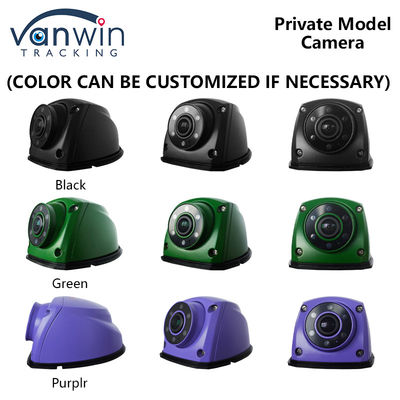

| Waterproof: | IP69K | Color: | Black,green,yellow,purple（Customizable Colors） |
|---|---|---|---|
| Angle: | 170 Degrees | Ir Led: | 6PCS |
| Power Supply: | DC12V±10% | Warranty: | 12 Months |
| Power Consumption: | ≤1.2W | Size: | 73.7*54*41(mm) |
| Auto Gain Control: | Support | Back Light Compensation: | Support |
| Highlight: | IR Night Vision Surveillance Camera,1080P AHD Surveillance Camera,Night Vision Surveillance Camera IP69K |
||
Product Description
AHD 1080P IR Night Vision Surveillance Camera Waterproof IP69K Shockproof Camera
Customizable Surveillance Camera Description
The Customizable Surveillance Camera is designed to provide reliable security for both indoor and outdoor environments. With an IP66 rating, this camera is fully equipped to withstand harsh weather conditions, including rain, snow, and dust.
Key Features:
-
High-Resolution Video: Capture crystal-clear images with 1080p HD resolution, ensuring you never miss a detail.
-
Night Vision: Equipped with infrared LEDs, the camera offers excellent visibility in low-light conditions, allowing for 24/7 monitoring.
-
Wide Angle Lens: The 90-degree field of view covers large areas, reducing the number of cameras needed for comprehensive surveillance.
-
Remote Access: Easily monitor your property from anywhere using our user-friendly mobile app or web portal.
-
Motion Detection Alerts: Receive instant notifications on your smartphone when motion is detected, ensuring prompt responses to any potential threats.
-
Easy Installation: Comes with all necessary mounting hardware and user-friendly instructions for quick setup.
Applications:
Ideal for residential properties, business premises, parking lots, and outdoor events, this waterproof surveillance camera is the perfect solution for enhancing security and peace of mind.
Main Specifications
| Model | JK-AHD-C772 |
| Image Sensor | 1/3" progressive scan CMOS |
| Horizontal Resolution | 1.3Mega pixel |
| TV system | PAL/NTSC |
| Effective pixels | 1280(H)*960(V) |
| Minimum Illumination | 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| S/N | ≥44dB |
| Auto Gain Control | Support |
| Back light compensation | Support |
| White Balance | AUTO |
| Digital Noise Reduction | Adaptive digital noise reduction,2D/3D-DNR |
| Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Video Output | Follow AHD standard |
| Image Function | Original/Reverse image |
| Output Adapter | 4P aviation head cable |
| Lens | 2.33mm(1.7mm Optional),M12*P0.5 |
| IR LEDS Quantity | 5 PCS Φ3 LEDS |
| IR distance | 5meters |
| IP grade | IP69K |
| Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) |
| Power Supply | DC12V±10% |
| Power Consumption | ≤1.2W |

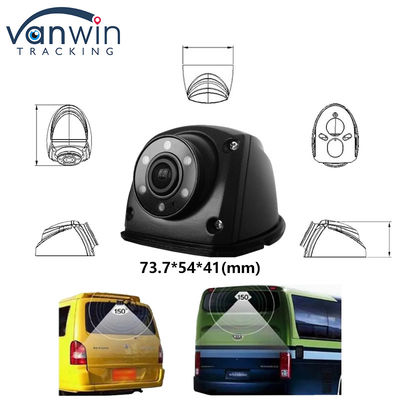

| Dimension | 73.7*54*41(mm) |

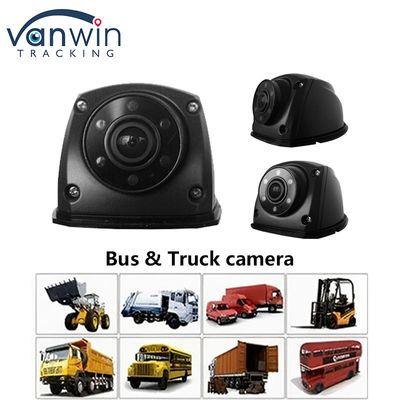

| Common used in school bus, Bus, truck etc, side/rear view camera | |
FAQ
1. What is a waterproof surveillance camera?
A waterproof surveillance camera is designed to withstand exposure to water and harsh weather conditions, making it suitable for outdoor use.
2. What is the IP rating of the camera?
The camera typically has an IP rating of IP66 or higher, indicating it is dust-tight and can endure powerful water jets.
3. Can I install the camera outdoors?
Yes, the waterproof design allows for installation in various outdoor environments, including rain, snow, and high humidity.
4. Does it require special installation?
While standard installation procedures apply, ensure that the camera is mounted securely and that all connections are protected from moisture.
5. What is the video resolution?
Most waterproof surveillance cameras offer HD (1080p) or higher resolutions for clear video quality.
6. Does it have night vision capabilities?
Yes, many models come equipped with infrared night vision, allowing for clear visibility in low-light conditions.
7. Can I access the camera remotely?
Most waterproof surveillance cameras come with mobile app support, enabling remote viewing and management from your smartphone or tablet.
8. What is the warranty period?
Warranty periods vary by manufacturer, but many offer warranties ranging from one to three years.
