170° Wide-Angle Waterproof Car Camera with 1080P HD Infrared Night Vision and Custom OEM/ODM Support
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C150 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5PCS |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | AHD Vehicle Mounted Infrared Camera | Product Performance: | ADAS DSM BSD |
|---|---|---|---|
| Special Features: | NIGHT VISION, Waterproof / Weatherproof, Low Power | Application: | Internal Or External To Buses/trucks/taxis, Etc |
| Sensor: | CMOS, CCD | Video Compression Format: | H.264/H.265 |
| Support Connection Port-1: | Aviation Female/Aviation Male/BNC+DC | Support Connection Port-2: | RCA+DC/4 Core Small Male/4 Core Small Female |
| Custom Voltage Support(Wide Voltage): | 12V~24V/8V~36V | Custom Support: | OEM ODM |
| Highlight: | Waterproof Car Camera,1080P HD Car Camera,170° Wide-Angle Car Camera |
||
Product Description
High Definition 1080P Infrared Night Vision 170 ° Wide-Angle Anti Fog, Shockproof, Waterproof, Explosion-Proof, Anti-Interference Car Camera
Camera product introduction:
High definition resolution: Provides high-definition video output of 1920x1080 pixels, ensuring clear and delicate images
Ultra wide viewing angle: 170 ° wide-angle view, effectively expanding the driver's field of vision, reducing blind spots,
and improving driving safety
Infrared night vision function: equipped with infrared invisible light fill light and white visible light fill light,
switchable fill light mode, ensuring clear monitoring at night or in low light environments
Waterproof rating: up to IP69, suitable for various harsh weather conditions, and suitable for outdoor use
High temperature resistance and crush resistance: The product is resistant to high temperatures and not
easily broken, with a long service life, ensuring long-term stable operation
Professional lens: equipped with a 2.1mm lens, providing a wide field of view, with a horizontal angle of 125 °
and a vertical angle of 75 °, suitable for various large and medium-sized vehicle models
Automatic white balance and backlight compensation: Automatically adjust white balance and backlight compensation
to ensure natural color and clarity of the image under different lighting conditions
Low illumination performance: The minimum illumination can reach 0.01 LUX, providing clear images even in low light environments
Noise ratio: above 60dB (AGC off) to ensure the purity of the image signal
Working temperature range: Suitable for working environments ranging from -20 ° C to+70 ° C, ensuring normal operation
even at extreme temperatures
Product parameters of car cameras:
Type
Reverse probe, other, reverse camera, monitor, backup camera, wireless rear camera
Visual angle
90 °-170 °
Video shooting resolution
1080P
Flower drum position
Backshaft
Power
3W
Exposure mode
Global exposure resistance
Function
Waterproof, infrared night vision ADAS
Suitable vehicle models
Comprehensive
Signalling system
PAL/NTSC optional
Product name
New private model front facing camera
Working voltage
DC12V
Resolution
720/1080P
Sensor
1/4 CMOS
Video output
AHD 720P/CVBS/VGA/HDMI
Keyword
AHD closed-circuit television camera
Voltage (maximum V, minimum V)
14V-10V
Working temperature (℃)
-20~+70 (maximum RH 95%)
Storage temperature (Celsius)
-30~+80 (maximum RH 95%)
Shell material
Aluminum alloy

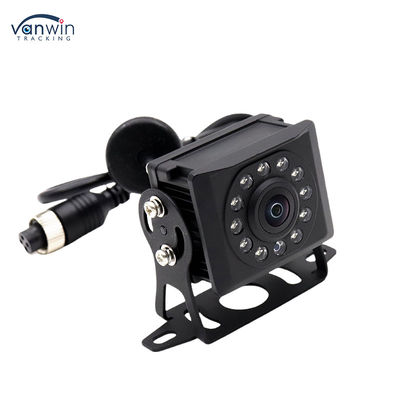

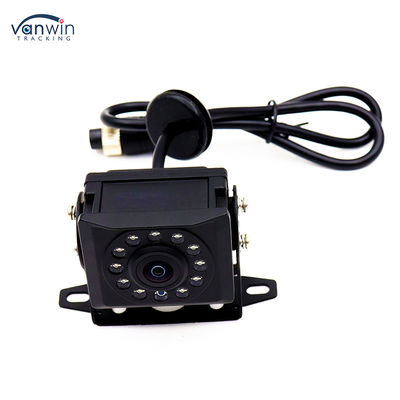

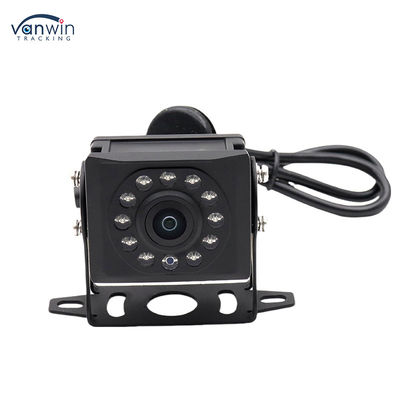

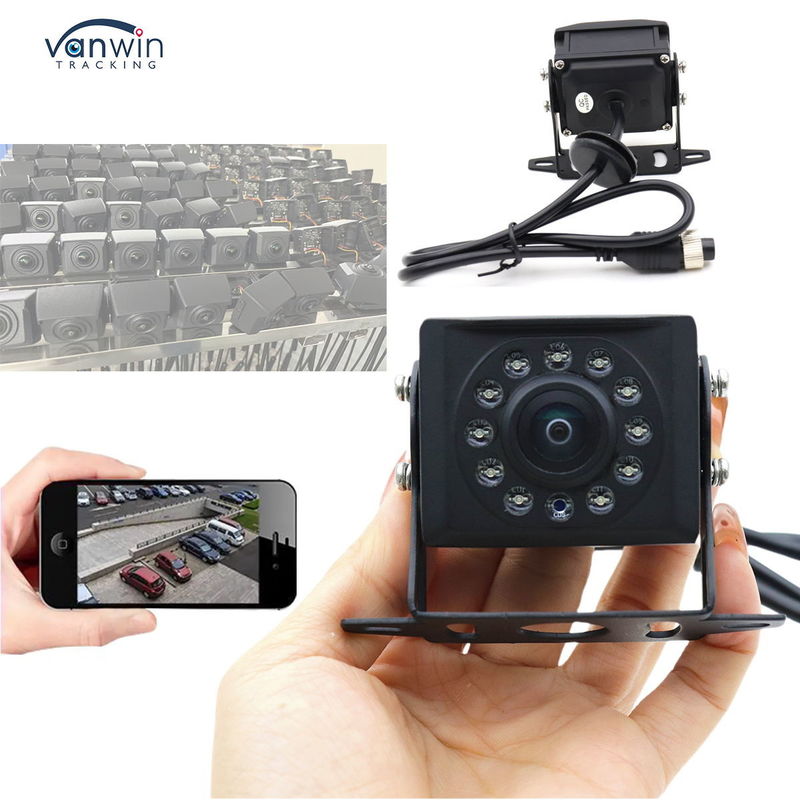

Product Display:
About Us:
As a high-tech enterprise specializing in automotive video surveillance products, Shenzhen VANWIN provides
comprehensive solutions covering product research and development, manufacturing, sales, and customer service.
Professional focus:
The company's strategic positioning is to focus on the development and production of automotive
video surveillance solutions, establishing a strong and unique brand image in a fiercely competitive market.
Technical expertise:
VANWIN allocates a large amount of resources for R&D to ensure the progressiveness technology and
market competitiveness of its products. The company's advanced products, including wireless car
mounted wide-angle cameras that support Wi Fi, 3G, 4G, and 5G, and stable and accurate AI surveillance
recorders, demonstrate its leading position in wireless communication technology for automotive applications.
We support customization and collaborative development, and welcome you to visit our factory.
