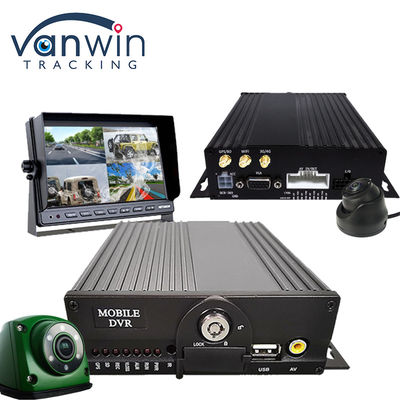

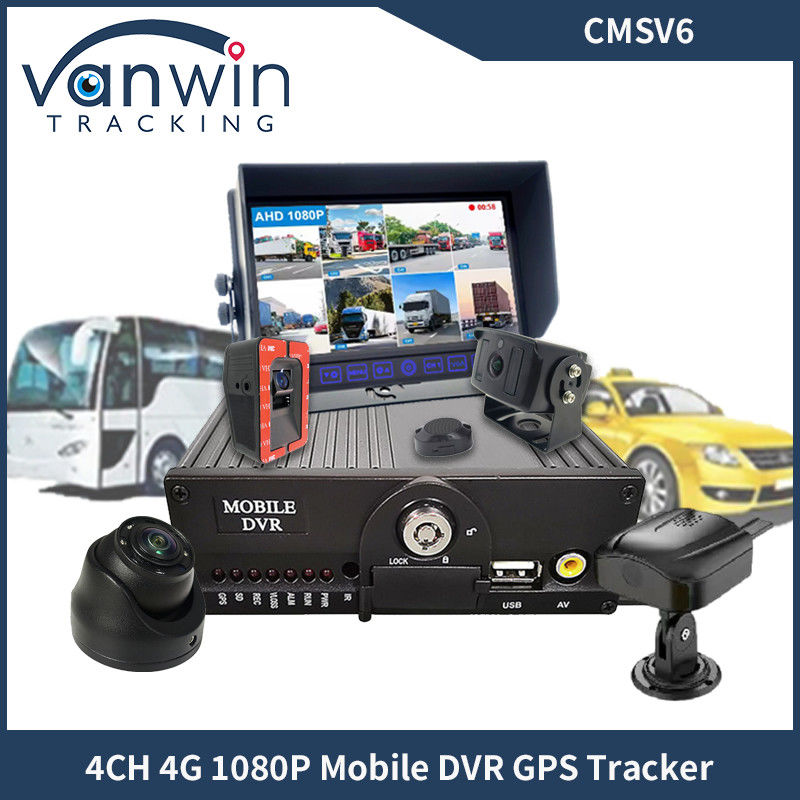

4CH Dual SD Card GPS MDVR Camera With 4G WiFi Mobile DVR School Bus Security System
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,00pcs per month; |
|
Detail Information |
|||
| Type: | 4 CH AHD Mobile DVR | Video Compression: | H.264 |
|---|---|---|---|
| Resolution: | 1080P | Warranty: | 18 Months |
| Video Input: | 4 Channels | Storage: | HDD+2*SD Card |
| Operating System: | Linux | Language: | Chinese,English,Russian,Multi-Language |

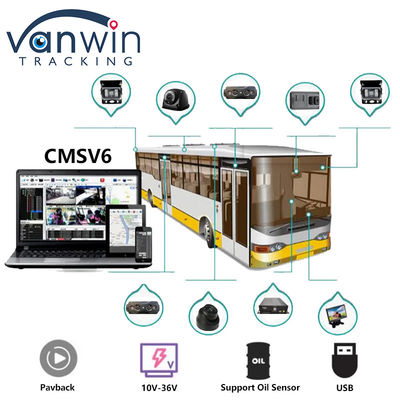

| Function: | 4G,WIFI,GPS | Support: | CMSV6 |
| Highlight: | School Bus Security System MDVR Camera,4G WiFi Mobile DVR Camera,Dual SD Card GPS MDVR Camera |
||
Product Description
4CH Dual SD Card GPS MDVR Camera With 4G WiFi Mobile DVR School Bus Security System
Product Description
The 4CH Dual SD Card GPS MDVR Camera With 4G WiFi Mobile DVR School Bus Security System is a high-performance digital video recorder designed for vehicle surveillance. It supports real-time video recording and playback, ensuring comprehensive monitoring of your mobile assets.
Key Features:
- 4-Channel Input: Allows simultaneous recording from four AHD cameras, providing a wide field of view.
- High Definition Recording: Supports AHD video formats up to 1080P for crystal-clear image quality.
- Mobile Application: Designed for vehicles, with shock-resistant and compact design for easy installation.

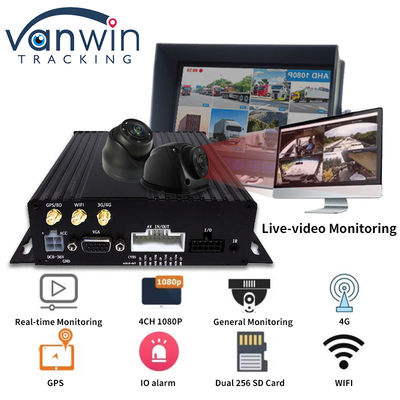

- Real-Time Monitoring: Live viewing through a connected monitor or remotely via mobile devices.
- Storage Options: Compatible with multiple storage options including HDD and SSD, with support for up to 2TB.
- User-Friendly Interface: Intuitive menu system for easy configuration and operation.
- Multiple Playback Modes: Supports various playback options including event, normal, and search by time.
- Built-in GPS: Track vehicle location and speed, enhancing security and monitoring.
Applications:
Ideal for public transportation, fleet management, law enforcement, and any mobile surveillance needs.
Parameters:
| File System | FAT32 exclusive file system | |
|
Video Playback |
Video Search | Search recorded video files by recording time and recording method |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Security Management | User Password or administrator password management, support screen locked | |
|
Expansion functions |
TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
|
Power and Consumption |
Power Management |
Self-adaptive wide voltage input, with protect functions for overload, under voltage, short circuit, reversing connection, etc Support time setting startup/shutdown, delayed power off function |
|
Power and Consumption |
Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V@1.5A,+5V@1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
| Working environment | Temperature | -20℃ - +70℃ |
| Humidity | 20% - 80% | |
|
SD Card Type Series |
Dimension | 150*137*60MM |
| Weight | 1.60KG | |
Installation Method for 4 CH AHD Mobile DVR
-
Preparation:
Ensure you have all necessary tools and components, including the DVR unit, cameras, cables, and power supply.
-
Mounting the DVR:
Choose a secure location in the vehicle, such as under a seat or in the trunk.Use mounting brackets or screws to securely attach the DVR to prevent movement during transit.
-
Connecting Cameras:
Install the cameras at desired locations (e.g., front, rear, and sides of the vehicle).Route the AHD coaxial cables from each camera to the DVR. Ensure the cables are secured and protected from damage.
-
Power Supply:
Connect the DVR to a suitable power source, usually the vehicle’s battery or an auxiliary power outlet.Ensure that the power connection is stable to avoid interruptions.
-
Configuration:
Power on the DVR and connect it to a monitor for initial setup.Configure camera settings, recording modes, and storage options using the DVR’s interface.
-
Testing:
Test all camera feeds to ensure proper functionality.Check recording features and playback to confirm everything is working correctly.
-
Final Touches:
Secure any loose cables and ensure all components are properly installed.Close and secure the vehicle’s interior to maintain a clean and professional appearance.
FAQ
How is the DVR powered?
The DVR can be powered by the vehicle’s battery through a direct connection or via an auxiliary power outlet. Ensure a stable power supply to avoid interruptions in recording.
Can I use this DVR with IP cameras?
No, the 4 CH AHD Mobile DVR is specifically designed for AHD cameras. For IP cameras, a different DVR that supports IP technology would be needed.
How do I access the recorded footage?
You can access recorded footage directly through the DVR’s interface using a connected monitor. Many models also allow for playback via USB drives or remote access through mobile applications.
Is installation difficult?
The installation process can be straightforward if you have basic technical skills. Follow the manufacturer’s guidelines for mounting, connecting wires, and configuring settings.
What should I do if the DVR isn’t recording?
Check the power supply, ensure all cameras are properly connected, and verify that recording settings are correctly configured. Consult the user manual for troubleshooting tips.
Can I expand the system?
This DVR supports up to four cameras. For additional coverage, you will need to use multiple DVRs or switch to a model that supports more channels.
What is the warranty period?
Warranty periods vary by manufacturer, but most offer at least a one-year warranty on parts and labor. Check the specific warranty details for your model.
Where can I find technical support?
Technical support is typically available through the manufacturer’s website, including FAQs, manuals, and customer service contact information.
