IP69K Full HD Night Vision Car Dome Camera Private Model 7 IR Lights Car Cam For Turck Bus
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-773 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | Car Dome Camera | Certification: | CE,FCC,ROHS |
|---|---|---|---|
| Waterproof: | IP 69K | Warranty: | 18 Months |
| View Angle: | 170 Degree | Lens: | 2.8mm |
| Functions: | Night Vision,Waterproof,Shockproof | Type: | Dome Camera |
| Resolution: | 1080P | Ir Led: | 7 Pcs |
| Highlight: | Car Cam For Turck Bus,Full HD Car Dome Camera,Night Vision Car Dome Camera |
||
Product Description
IP69K Full HD Night Vision Car Dome Camera Private Model 7 IR Lights Car Cam For Turck Bus
Key Features:
-
170° Ultra-Wide Angle View: Provides an expansive monitoring range to minimize blind spots, ensuring comprehensive coverage of your surroundings.
-
Waterproof Design: Engineered for all weather conditions, featuring an IP67 waterproof rating, allowing it to operate effectively in rain or humid environments.
-
High-Definition Imaging: Supports high-resolution image capture, delivering clear picture quality even in low-light conditions.
-
Night Vision Capability: Equipped with infrared night vision technology to ensure clear monitoring during nighttime or in poorly lit areas.
-
Durable Construction: Built with high-quality materials to withstand vibrations and impacts commonly associated with vehicle use.
-
Easy Installation: Designed for straightforward installation in various vehicle types, making it user-friendly for all drivers.
170° Wide Angle IP69K Waterproof Camera Specifications
| Image sensor | CMOS | Starlight CMOS | CMOS |
| Horizontal Resolution | 1.3Megapixel | 1.3Megapixel | 2.0Megapixel |
| TV system | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixel | 1280(H)*960(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Minimum Illumination | Color 0.1Lux,0 Lux with IR | Color 0.01Lux,0 Lux with IR | Color 0.05Lux,0 Lux with IR |
| S/N ratio | ≥45dB | ≥60dB | ≥56dB |
| Day/Night mode | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching | ||
| sync system | Internal | ||
| Backlight compensation | AUTO | ||
| White balance | AUTO | ||
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) | ||
| Video output | AHD(default)Standard,720P output | AHD(default)Standard,1080P output | |
| lens | 170°/150°/120°/More optional | 150°/120°/More optional | |
| IR leds Qty | 6pcs LEDs | ||
| IR distance | ≤3 meters | ||
| waterproof grade | IP69K | ||
| Operating Temp. | -20°C~+70°C, RH95%MAX | ||
| Storage Temp | -30°C~+80°C, RH95%MAX | ||
| Power supply | DC12V±10% | ||
| Power consumption | ≤2W | ||
| Dimension | 47.8*41.9*91.4(mm) | ||

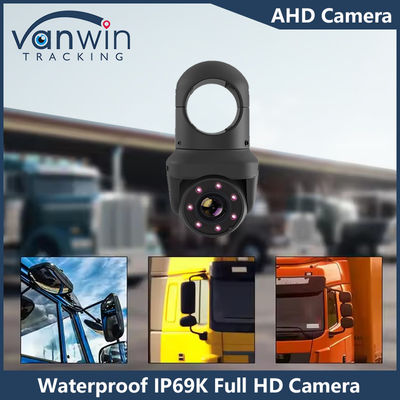

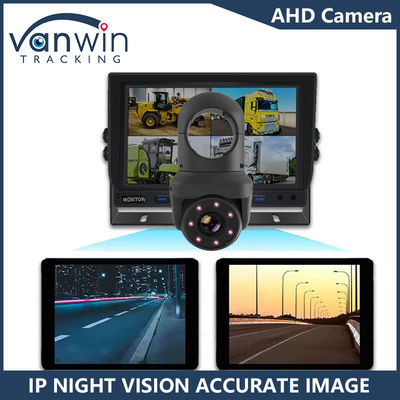

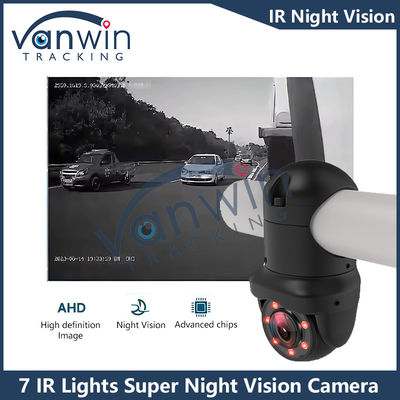

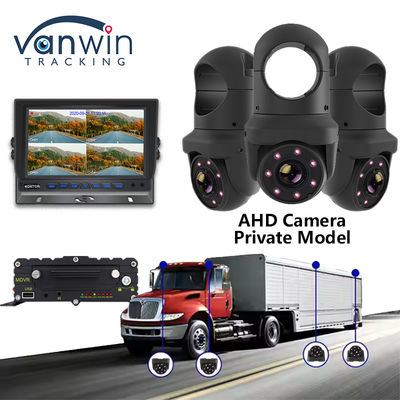

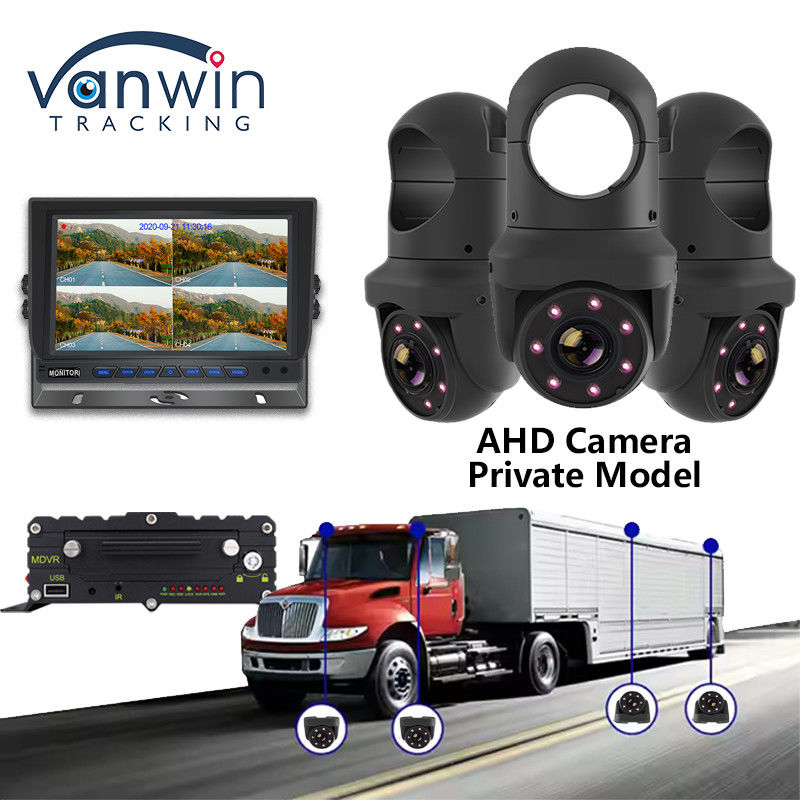

Product Photos
Usage Precautions for 170° Wide Angle Waterproof Car Dome Camera
-
Installation:
- Ensure the camera is mounted securely to avoid vibrations while driving.
- Follow the installation instructions carefully to ensure proper functionality.
-
Power Supply:
- Use the recommended power supply to prevent damage to the camera.
- Check connections to ensure they are secure and free from corrosion.
-
Cleaning:
- Clean the camera lens regularly with a soft, lint-free cloth to maintain clear video quality.
- Avoid using harsh chemicals or abrasive materials that may scratch the lens.
-
Operating Environment:
- While the camera is waterproof, avoid submerging it in water.
- Ensure that any connectors or ports remain dry to prevent electrical issues.
-
Temperature Range:
- Be aware of the operating temperature range specified in the manual. Avoid exposing the camera to extreme temperatures.
-
Regular Checks:
- Periodically check the camera for any signs of wear or damage.
- Test the camera's functionality regularly to ensure it operates correctly.
-
Storage:
- If not in use for extended periods, store the camera in a cool, dry place to prolong its lifespan.
-
Avoid Obstructions:
- Ensure that the camera’s view is not obstructed by stickers, dirt, or other objects that may block the lens.
-
Firmware Updates:
- If applicable, keep the camera’s firmware updated to benefit from the latest features and security enhancements.
